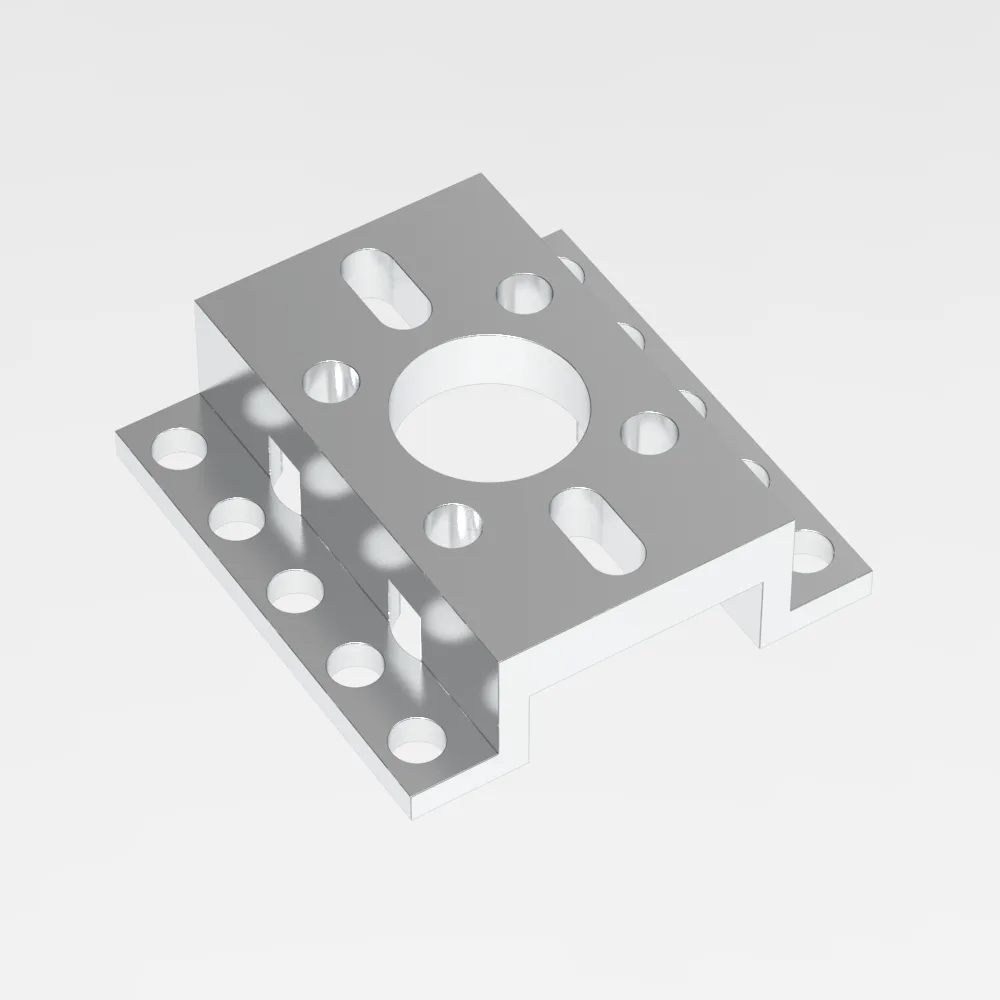

3208 Series Surface Mount (1-1)
SKU: ZY-3208-0001-0001
R 65,31Ex Tax: R 56,79
On backorder — Ships in ~21 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

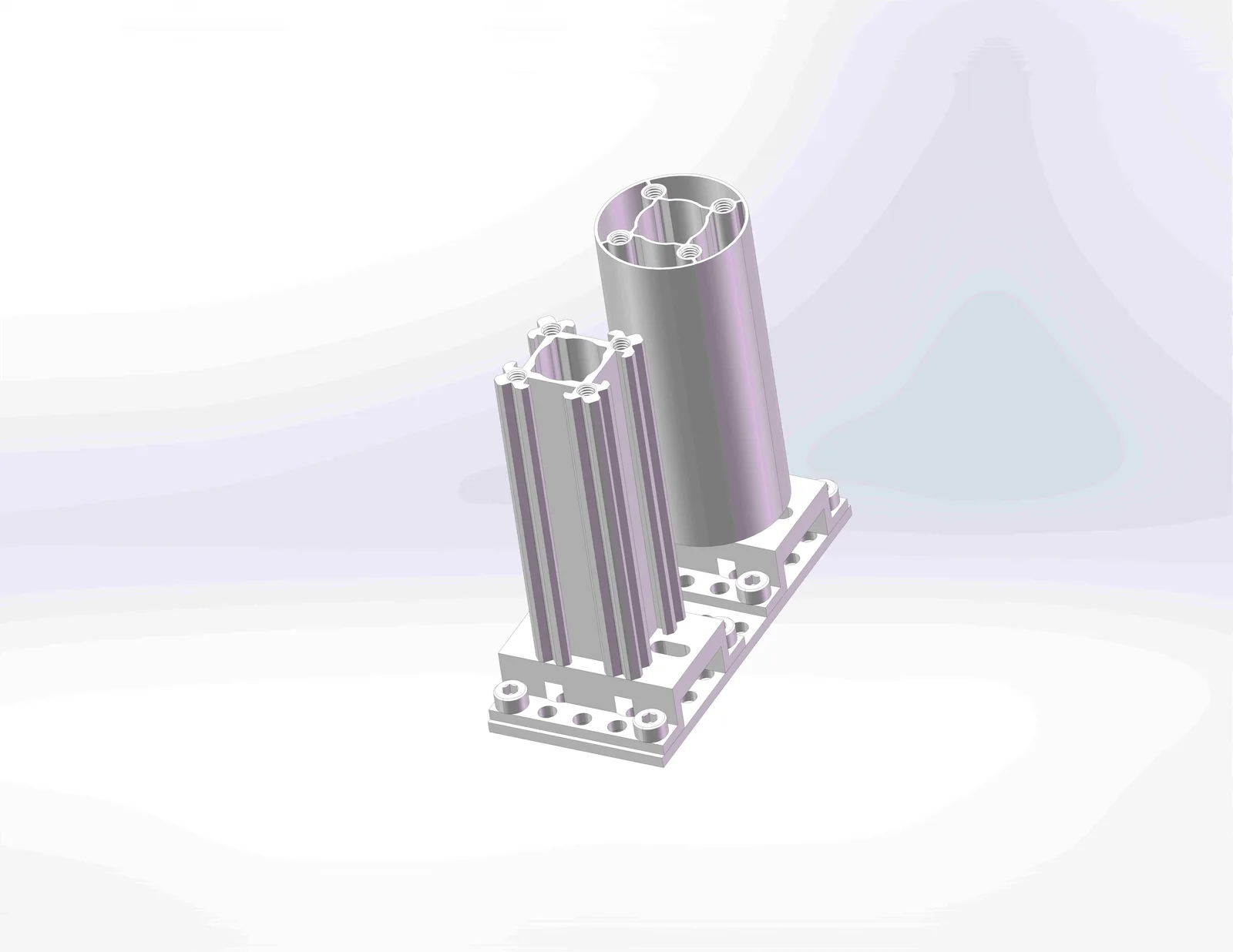

Create a 90 degree junction between two pieces of goRUN using a surface mount. The offset profile allows the heads of the screws holding the mount to the goRUN to remain below the mating surface, leaving a clean slate to fasten to.This mount is commonly used on the end of goRUN to fasten a threaded part such as a pillow block or pattern mount. It can also be used on the side of goRUN while keeping mating parts with a 24mm height on pattern so that gears and drive components properly align.
size:40mm*38mm*12mm

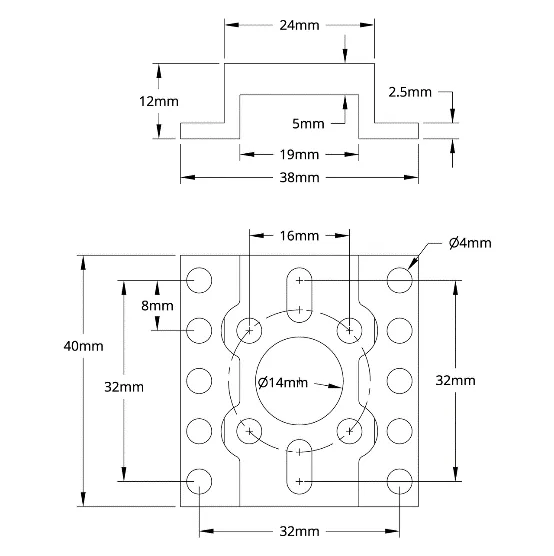

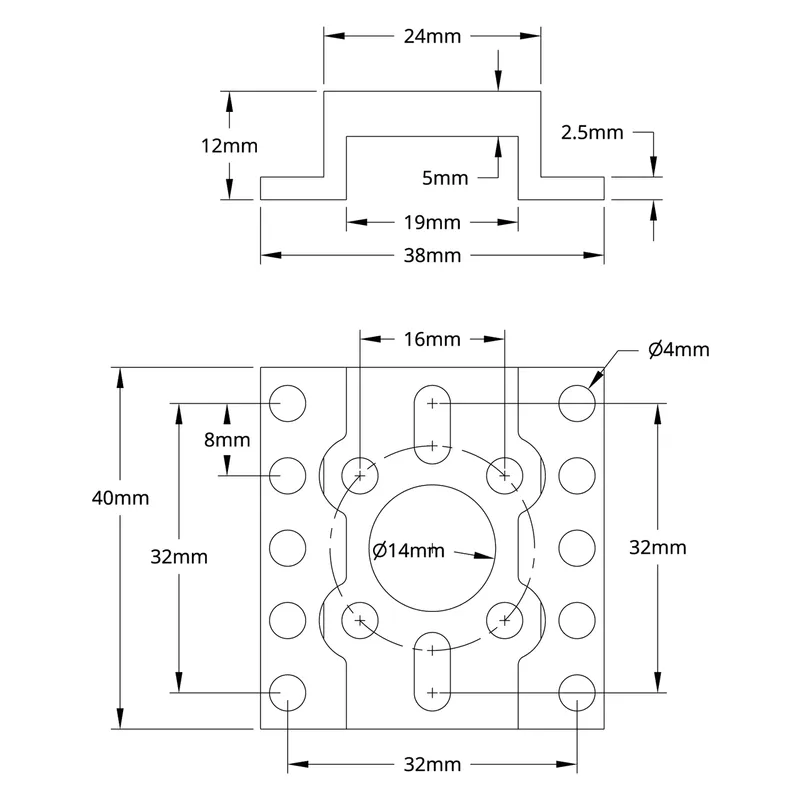

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3208-0001-0001 |
| Weight | 45g Each |
| Material | Aluminum |
| Finish | Clear Anodized |
