3204 Series Gusseted Angle Mount (1-1)
SKU: ZY-3204-0001-0001
R 94,05Ex Tax: R 81,78
Ships in 7–10 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
When additional support is needed the Gusseted Angle Mounts are able to beef up a corner while occupying a minimal amount of space.These compact gussets provide a clean and solid way to create or support a 90 degree angle. The counterbore allows button head screws to recess down into the mount far enough to pass one-another during assembly.
size:12mm*12mm*14mm
Supplied as a pack of 2.

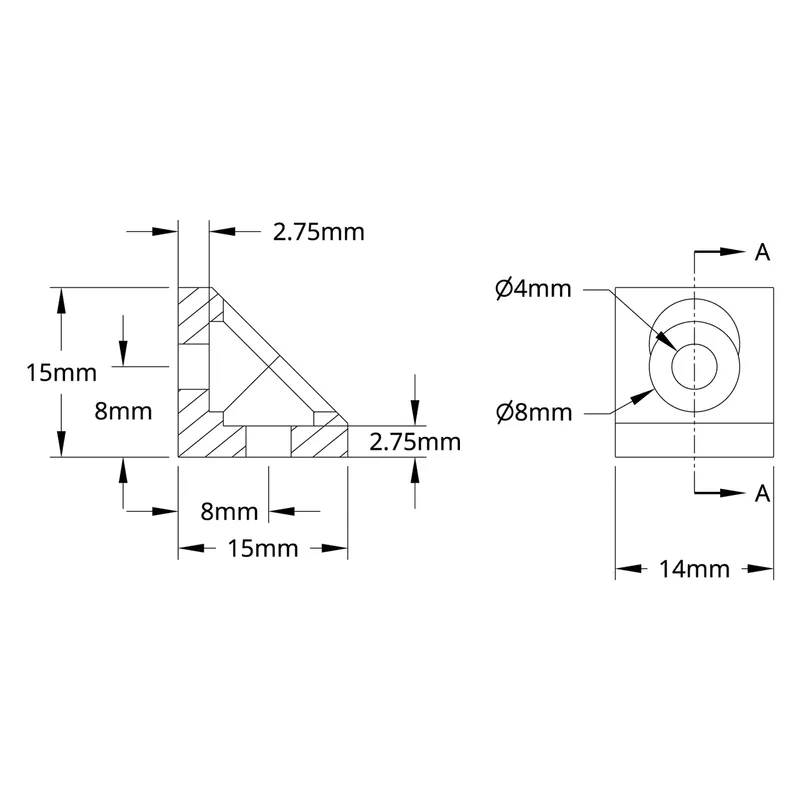

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3204-0001-0001 |
| Units per pack | 2 |
| Weight | 4.3g Each |
| Material | Aluminum |
| Finish | Clear Anodized |
