3202 Series Angle Pattern Mount (1-3)
SKU: ZY-3202-0001-0003
R 119,70Ex Tax: R 104,09
On backorder — Ships in ~21 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

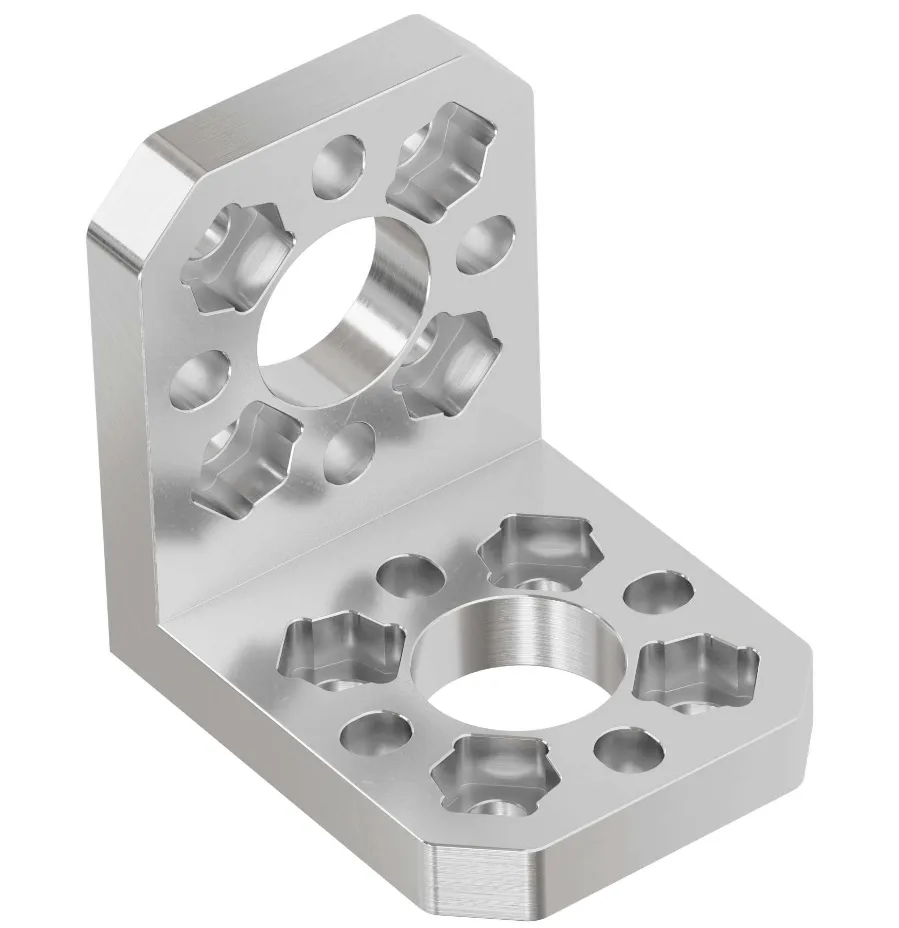

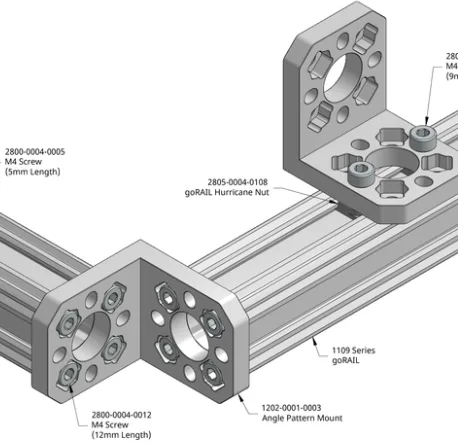

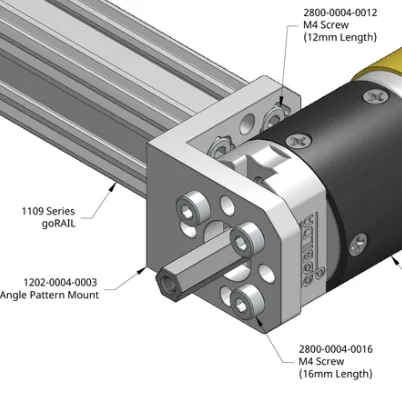

This angle pattern mount makes it easy to create 90° joints in your structure. The counterbored thru-holes are large enough for the head of an M4 socket head screw. Alternatively, the counterbores can capture an M4 locknut. The non-counterbored holes are also thru-hole, this makes it easy to fasten this part to the t-slot of goRAIL.

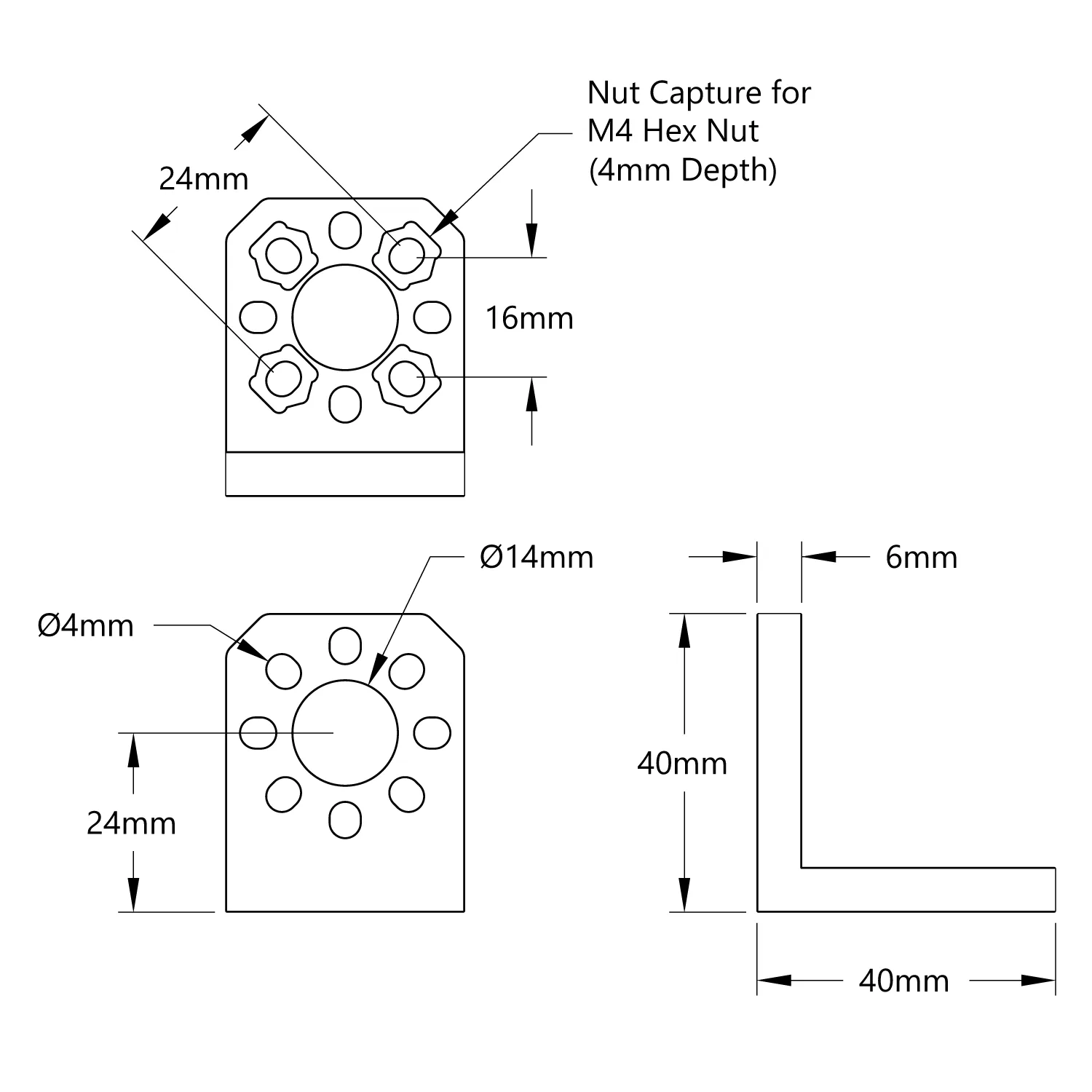

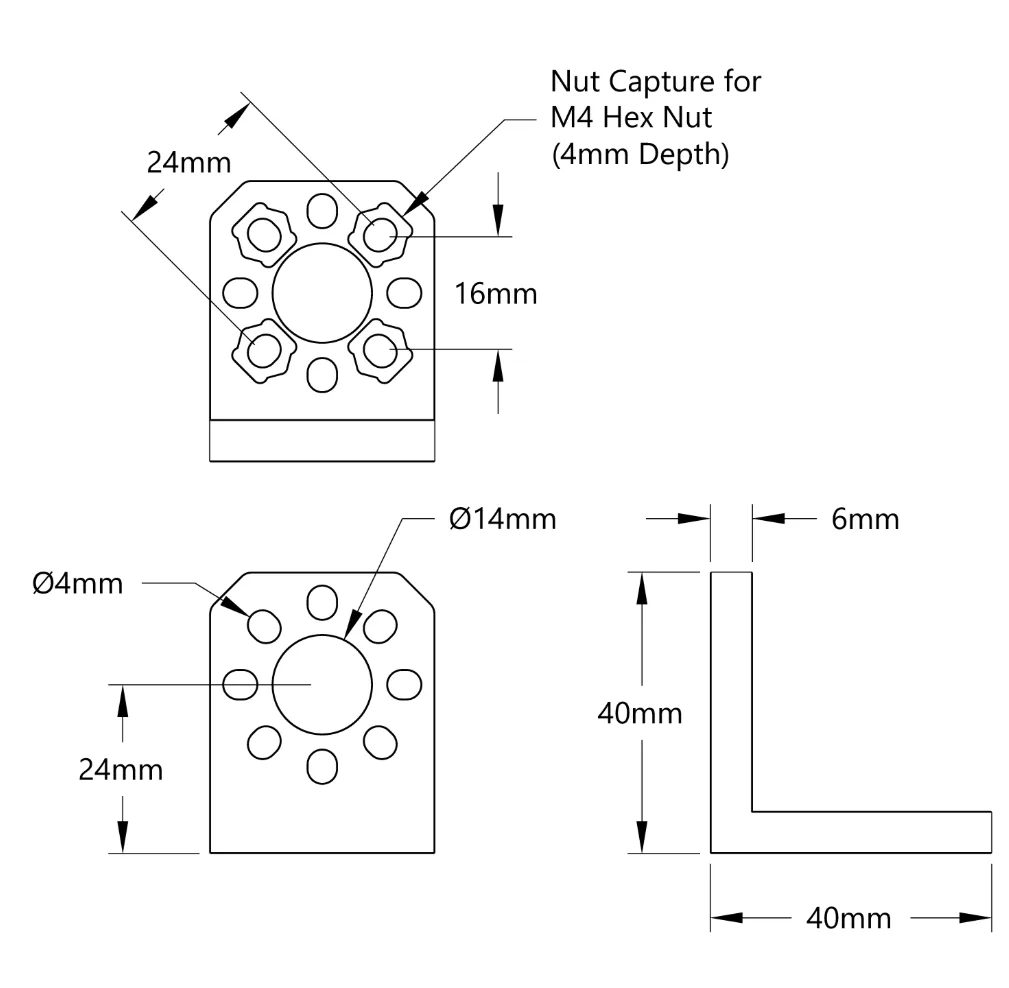

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3202-0001-0003 |
| Weight | 25g |
| Material | Aluminum |
| Finish | Clear Anodized |
