Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

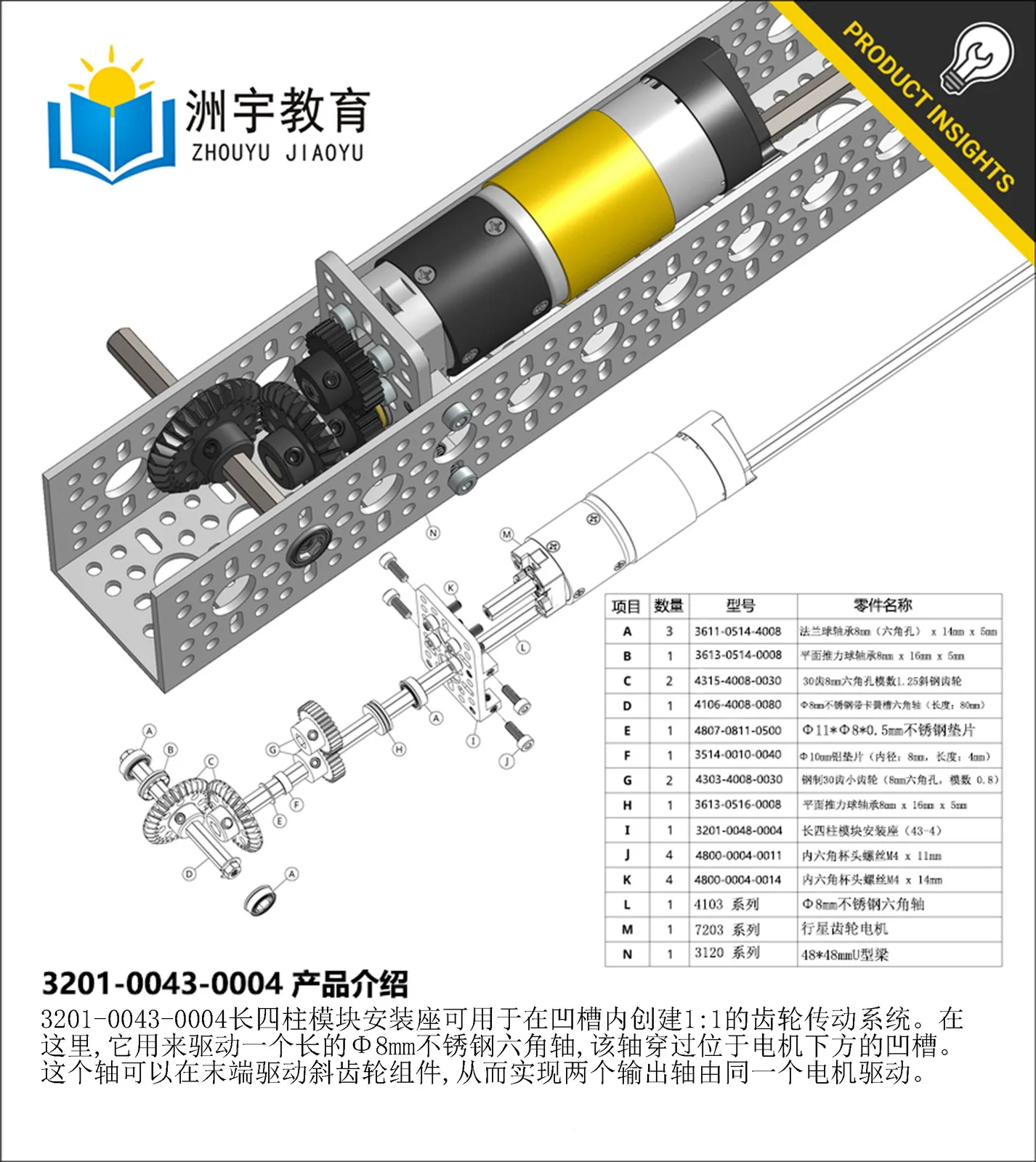

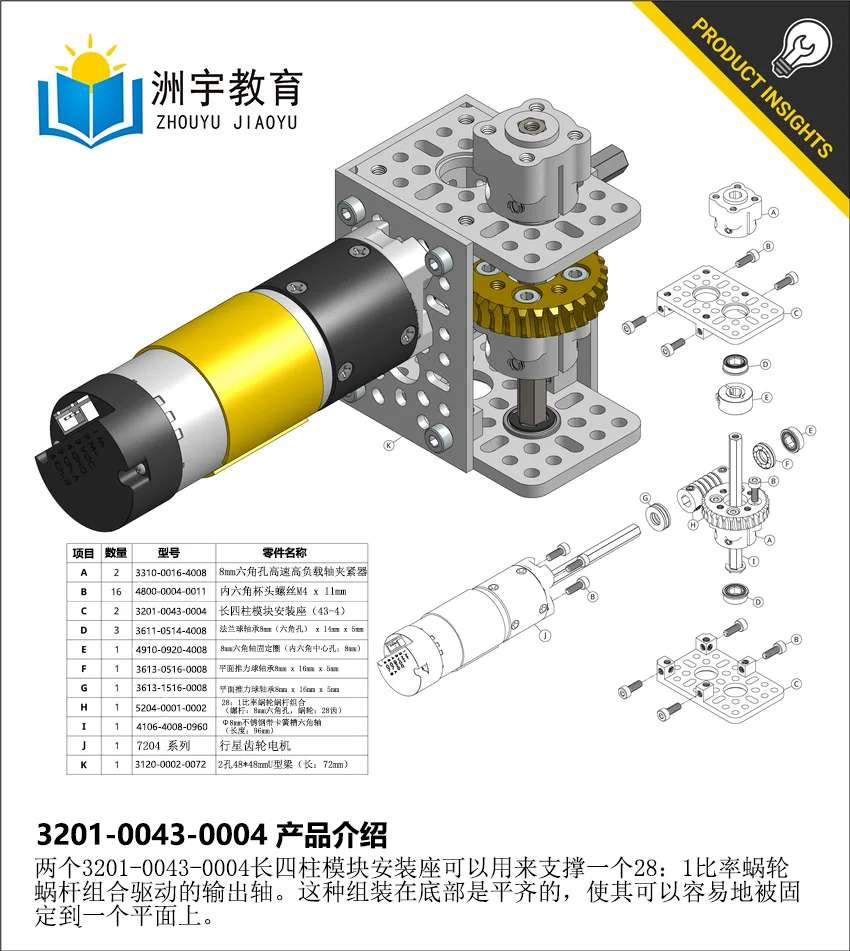

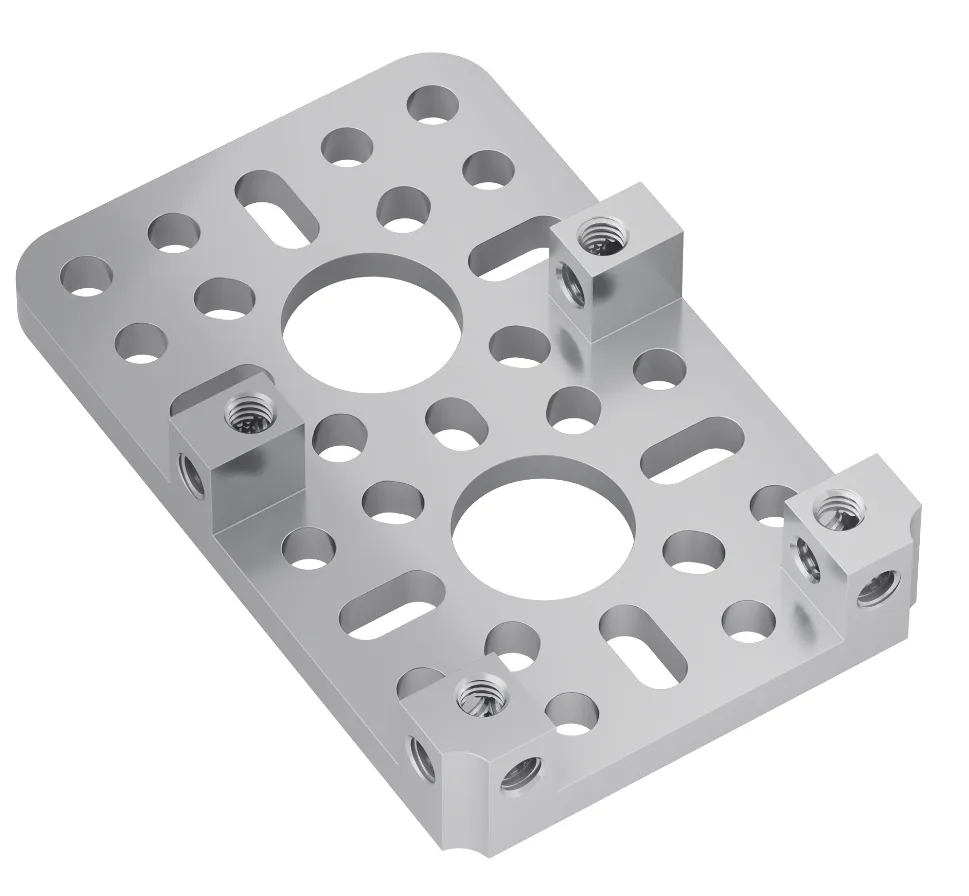

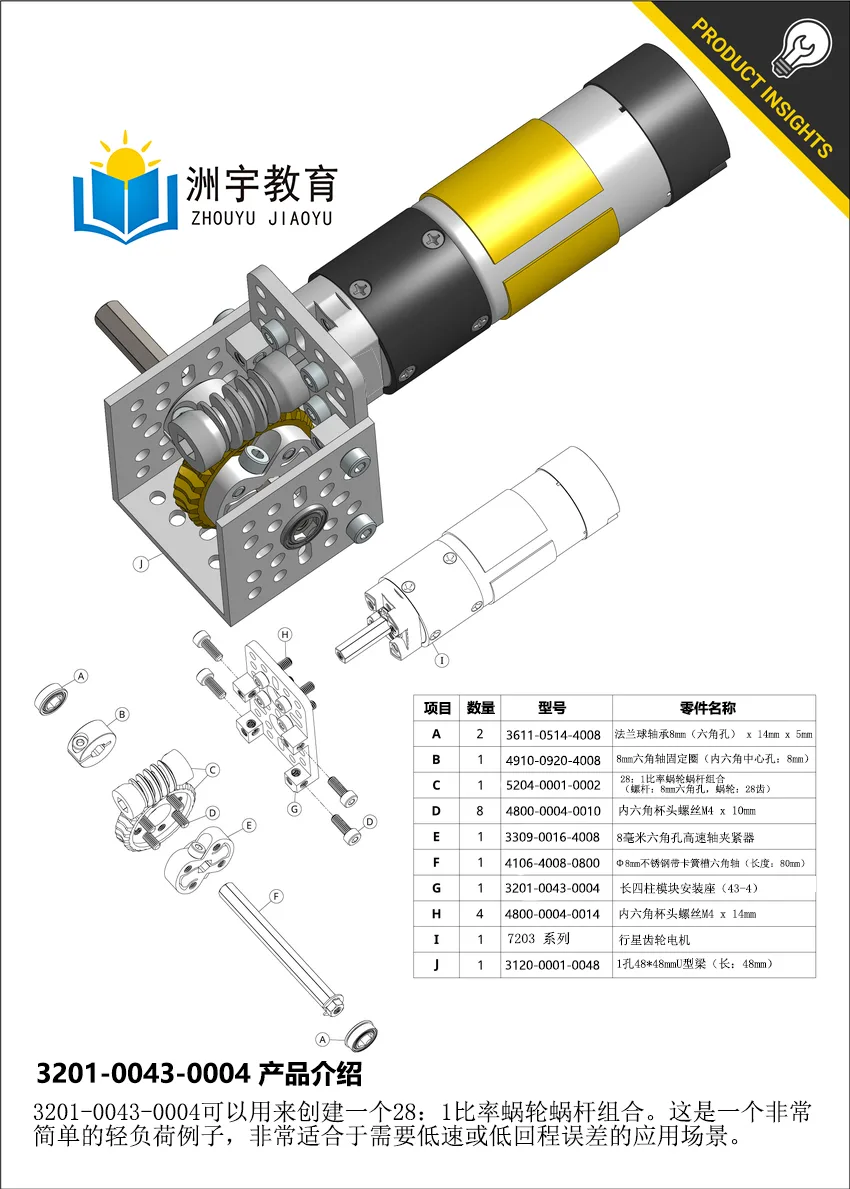

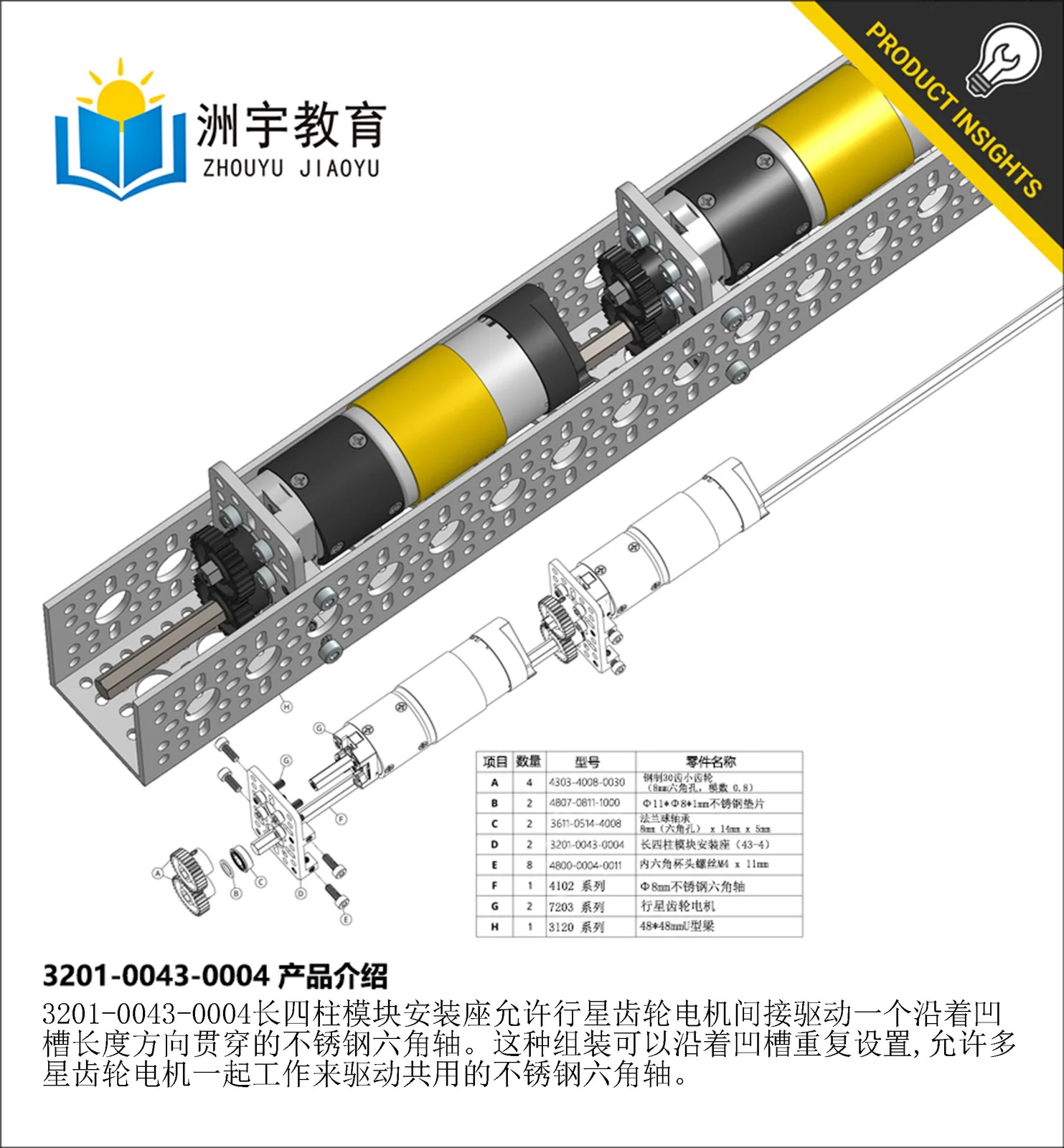

This 3201 Series Quad Block Pattern Mount (43-4) have two 14mm bore with the 16mm pattern in order to mount to hubs and other rotating components containing the 16mm pattern and are 43mm wide, allowing them to span between the two sides of Channel and provide holes on multiple surfaces to fasten additional components to.The clean slate will allow other parts (such as a ball bearing or a thrust bearing) to rest against that surface. As an added bonus, the backside of the 14mm center hole has been counterbored to be able to capture the flange of a bearing. there are many ways to build an actuator using 3201 Series Quad Block Pattern Mount (43-4), such as The 3201-0043-0004 Quad Block Pattern Mount can be used to create a 1:1gear train within channel and can be used to create a worm gear assembly .
size:67mm*43mm*12mm

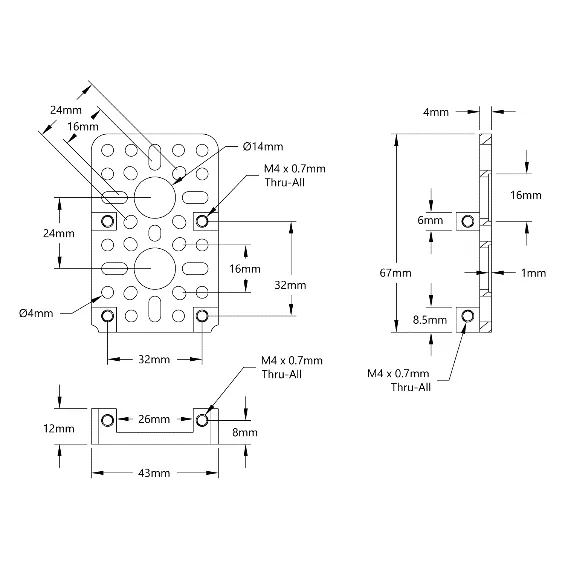

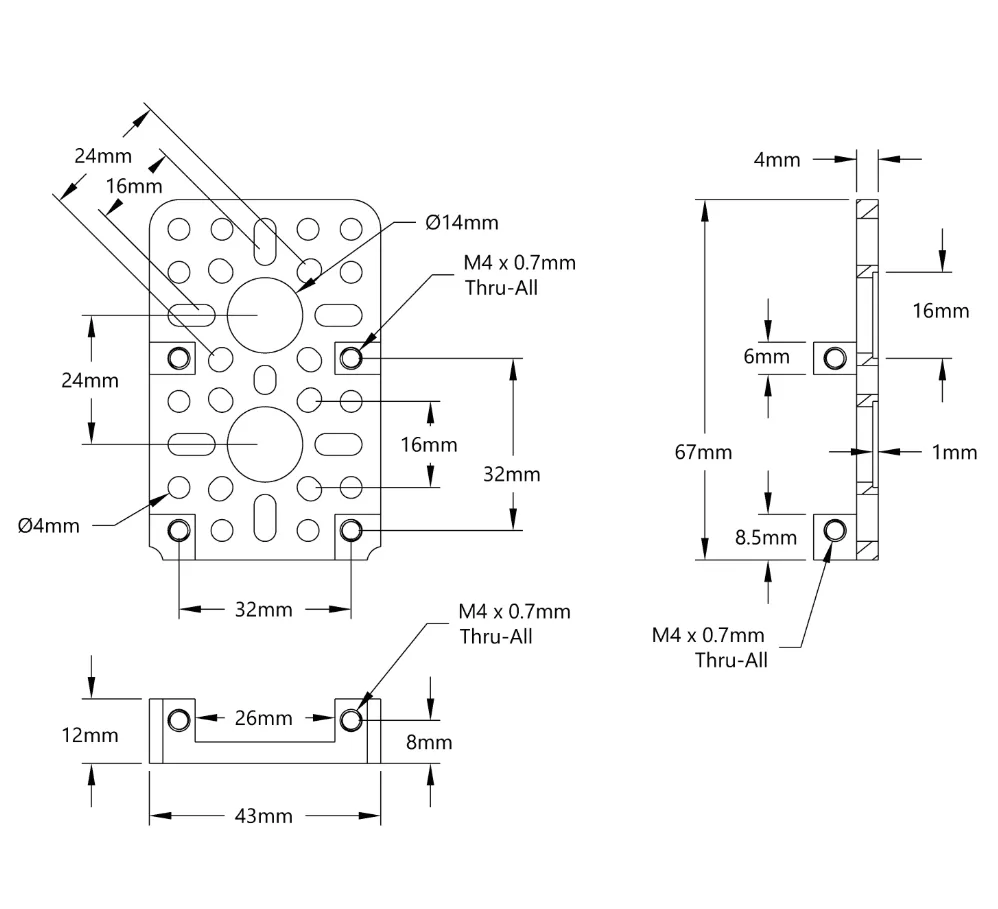

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3201-0043-0004 |
| Weight | 75g Each |
| Material | Aluminum |
| Finish | Clear Anodized |
