3200 Series 1-Side, 2-Post Pattern Mount (32-1)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

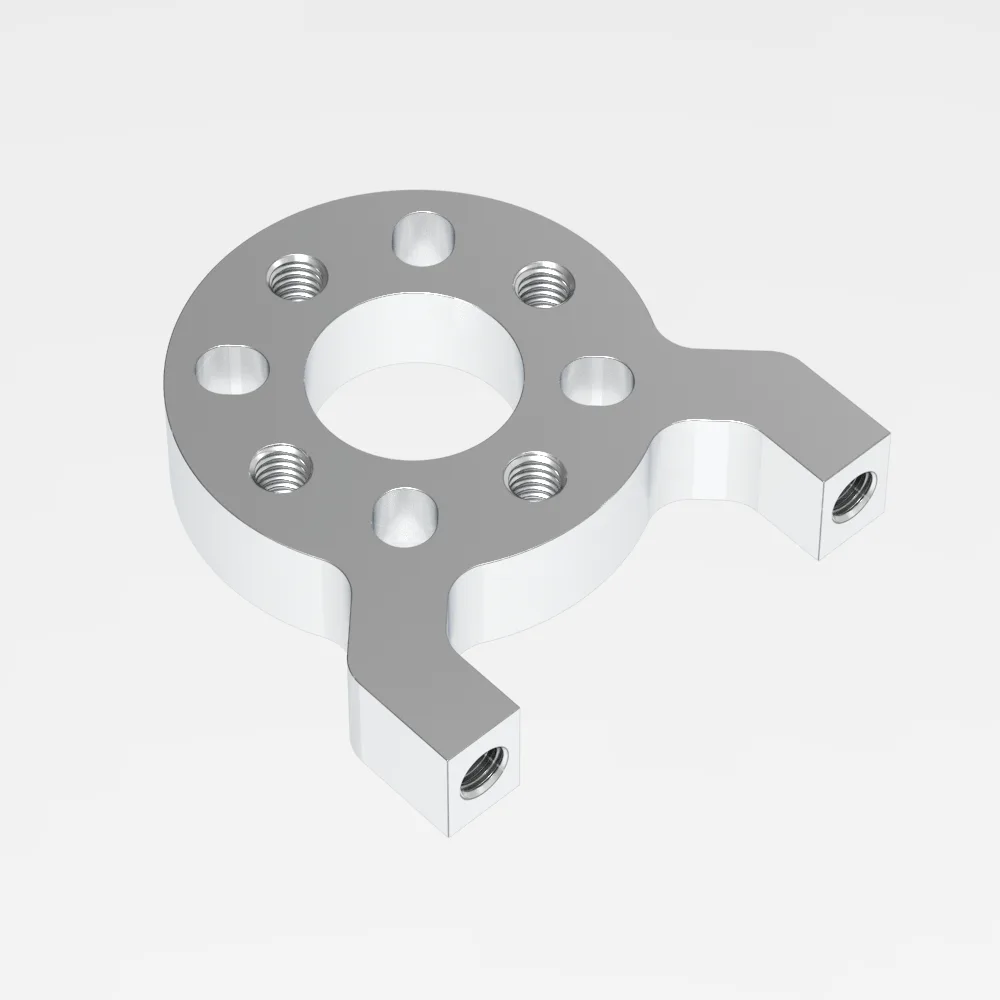

These mounts have blind tapped holes on the posts so they can fasten to a flat surface from the bottom. Use these to attach other structural components - hold a motor on pattern or house a bearing for a rotating assembly.This pattern mount fastens to structure with the threaded posts, spaced 32mm apart, and positions the pattern 24mm from the mounting surface. The 24mm bottom-to-center distance is crucial as it allows other structural components to properly align as well as provides the proper distance for gears to mesh and drive a rotating assembly. The 1mm deep recess around the bore allows a 1611 Series Bearing to nest down into the bore, leaving the surface completely flush.

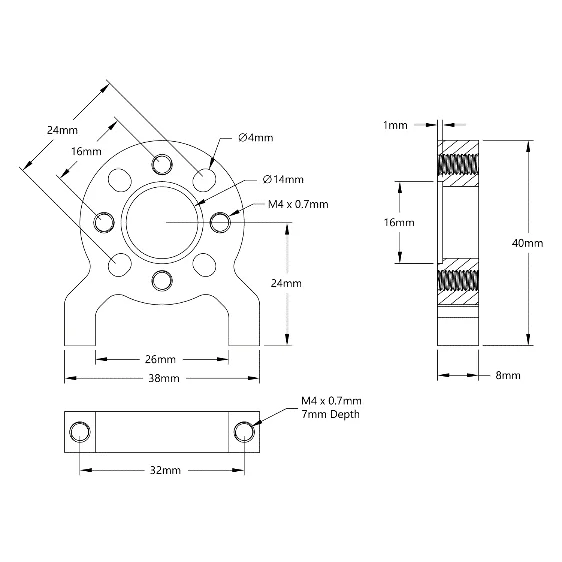

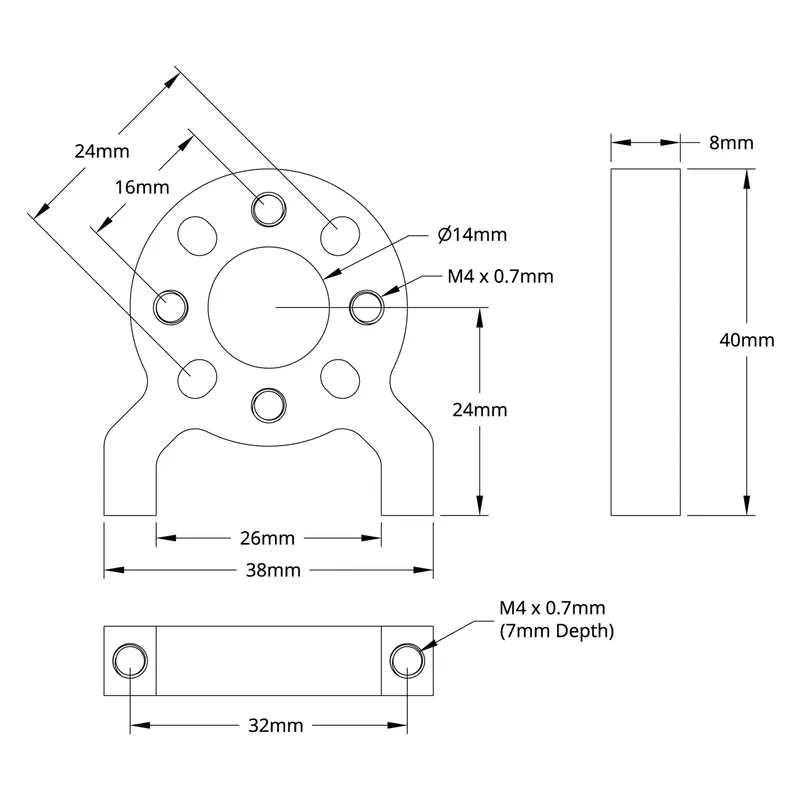

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3200-0032-0001 |
| Weight | 15g Each |
| Material | Aluminum |
| Finish | Clear Anodized |
