3200 Series 1-Side, 2-Post Pattern Mount (24-1)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

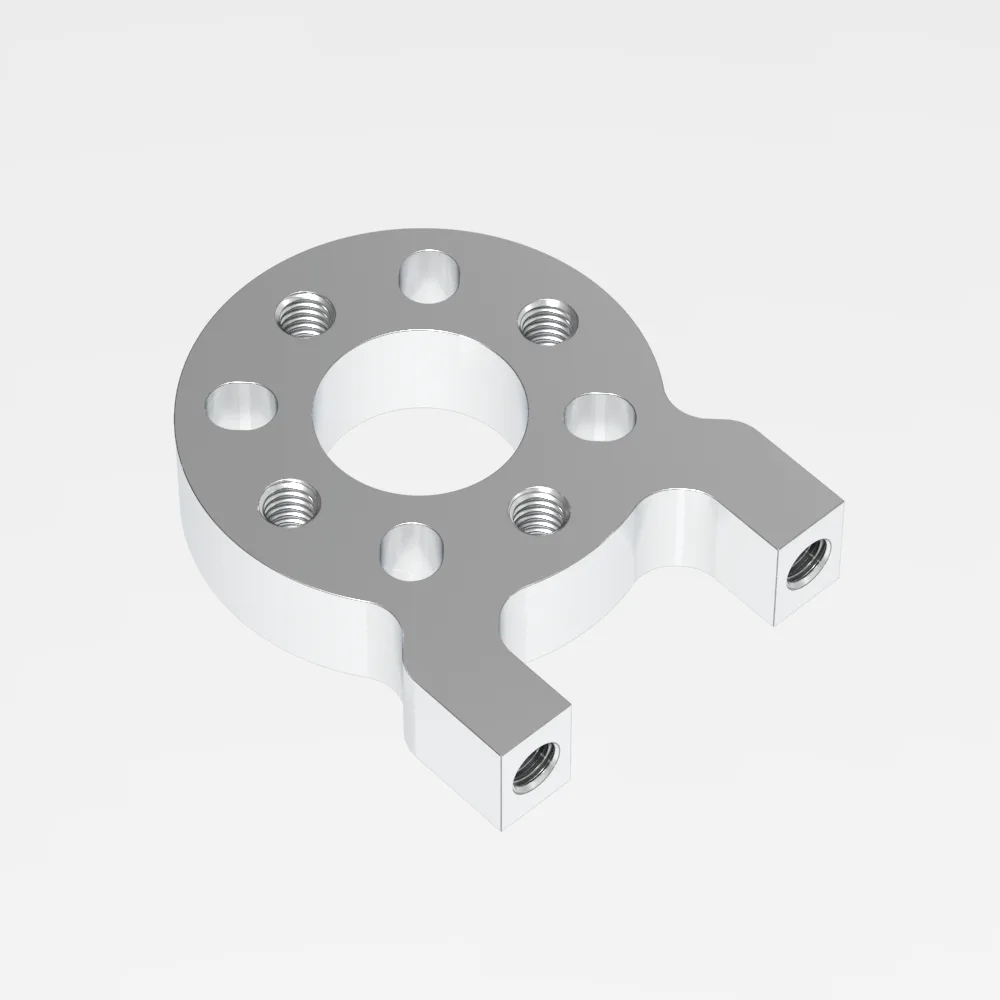

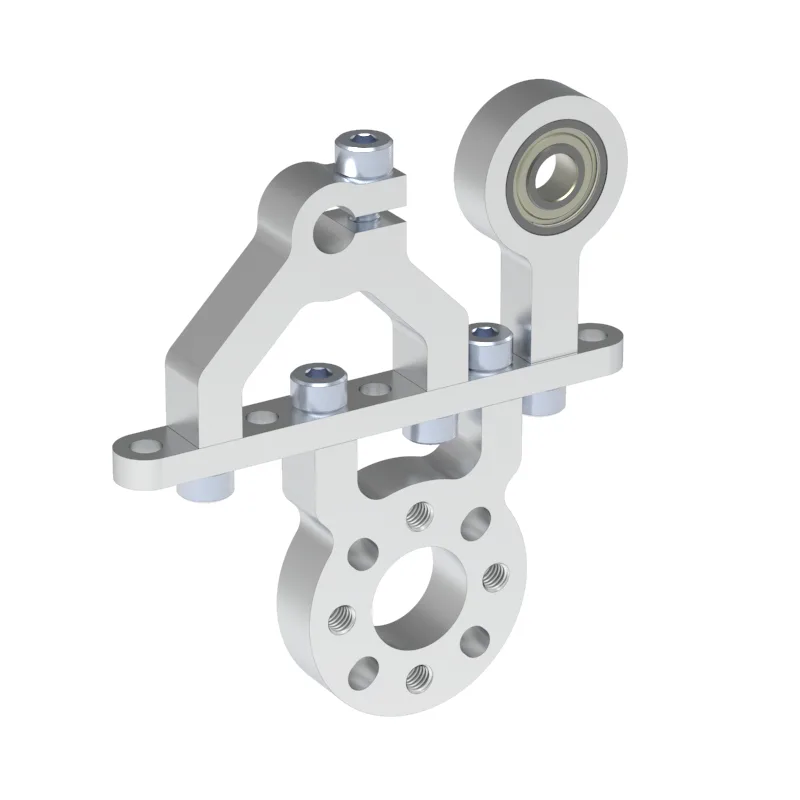

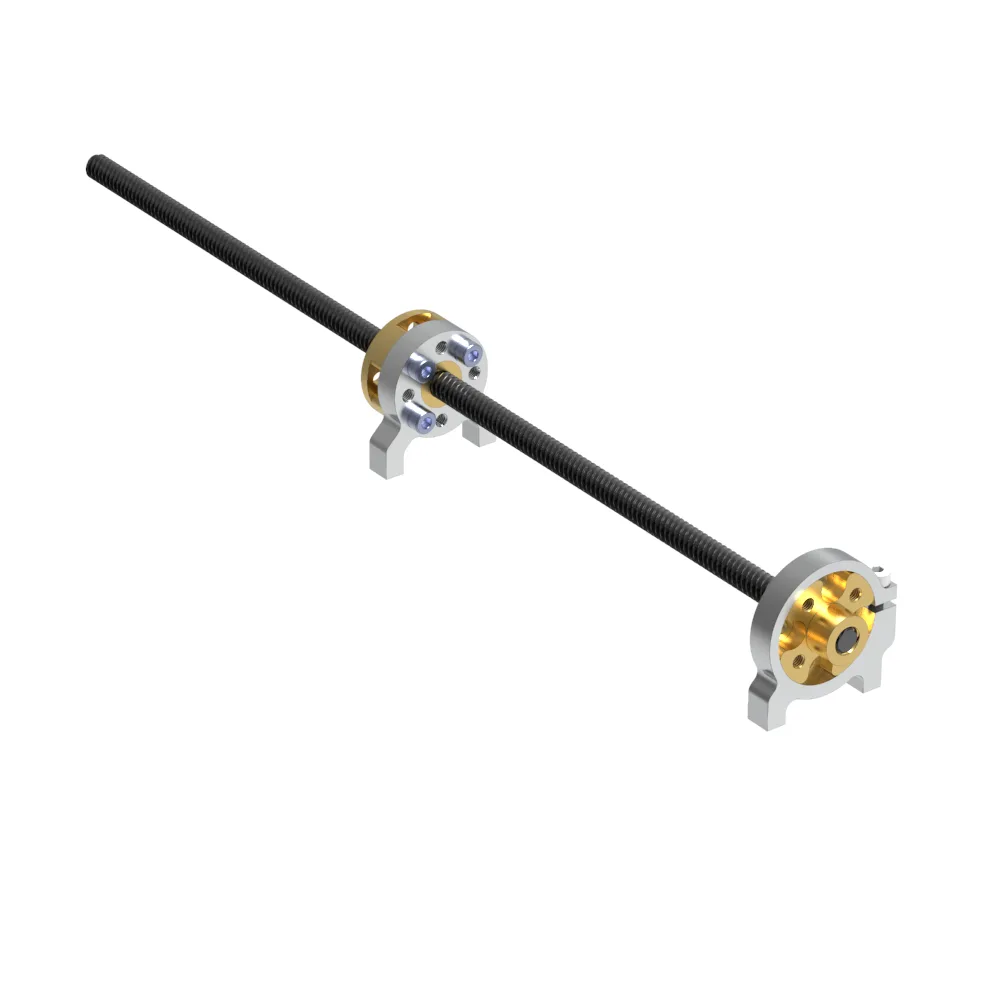

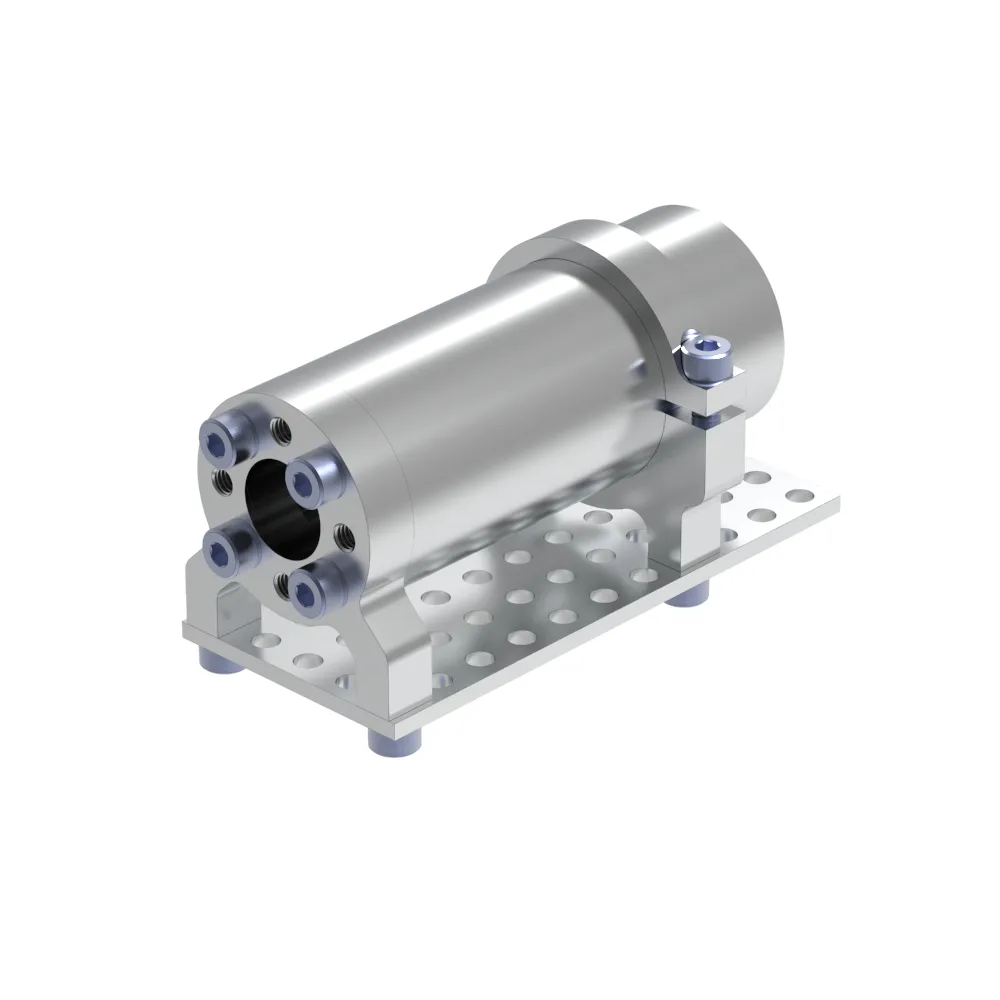

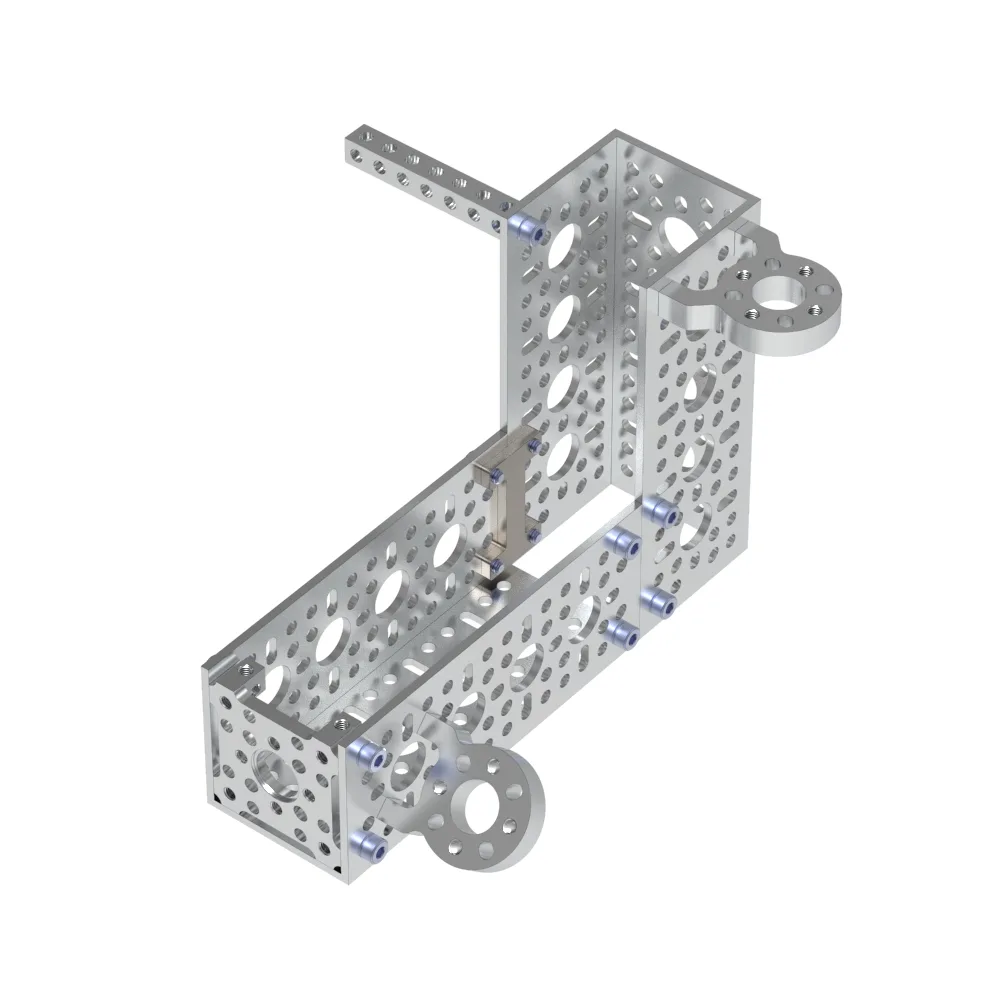

These mounts have blind tapped holes on the posts so they can fasten to a flat surface from the bottom. Use these to attach other structural components - hold a motor on pattern or house a bearing for a rotating assembly.This pattern mount fastens to structure with the threaded posts and positions the pattern 24mm from the mounting surface. The 24mm bottom-to-center distance is crucial as it allows other structural components to properly align as well as provides the proper distance for gears to mesh and drive a rotating assembly. These mounts can be used as a simple connection point while building a chassis but are also an excellent choice for holding a bearing, hub, lead-screw nut, or tube off of the mating surface you’re building on.

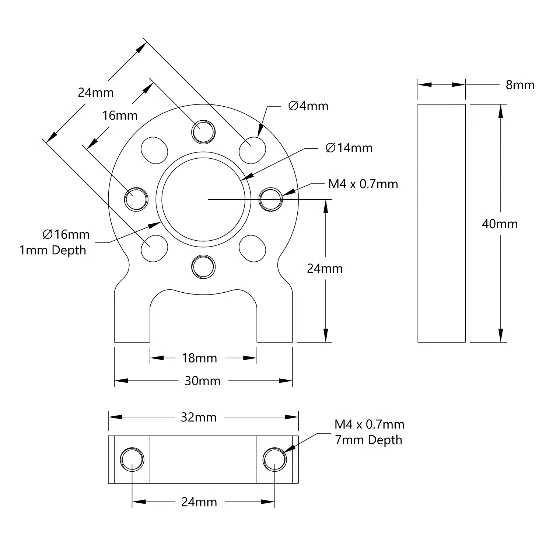

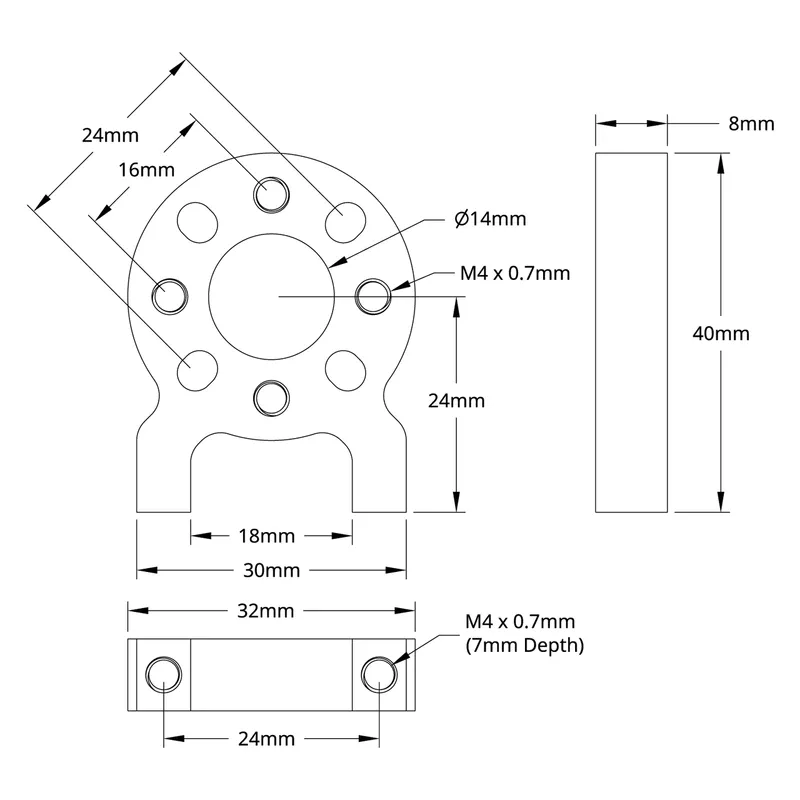

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3200-0024-0001 |
| Weight | 15g Each |
| Material | Aluminum |
| Finish | Clear Anodized |
Reviews
No reviews yet — be the first to review this product.
