3116 Series Grid Plate (5 x 9 Hole, 40x 72mm)

Competition eligibility

Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

Grid Plates contain 4mm holes on a simple 8mm grid so that you have plenty of mounting options while staying on pattern. Grid plates provide a clean and simple way to build while maintaining compatibility with the rest of the Sheen Robotics build system!Aluminum Grid Plates have an excellent strength to weight ratio. The 2.5mm thickness matches the thickness of most of the other primary structural elements within the build system.

size:72mm x 40mm x 2.5mm

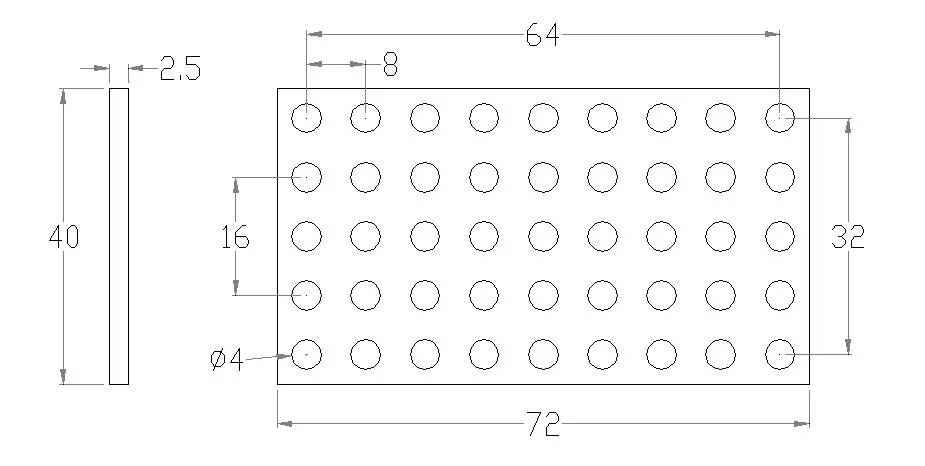

Technical drawing
