7-Hole Flat Linkage
SKU: ZY-61247
R 73,15Ex Tax: R 63,61
On backorder — Ships in ~21 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

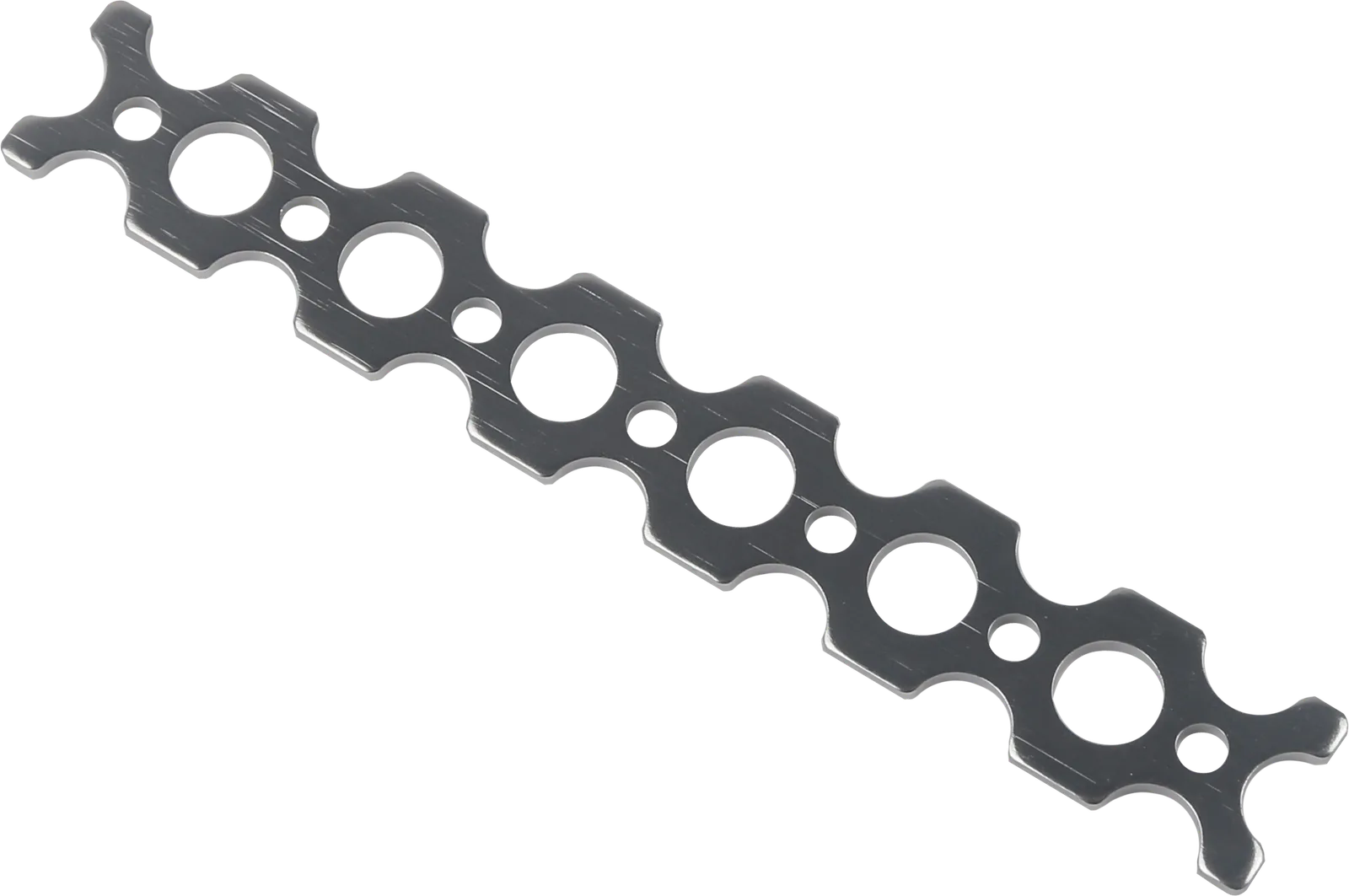

These versatile aluminum linkages make it easy to create custom links and pivoting connection points. The flat linkages are also great structures for building and can be cut and shaped into various angles or curves with ease for customized applications The hole distance is 8mm the diameter of the large hole is 8.1mm and the diameter of the small hole is 3.8mm compatible with TETRIX PRIME

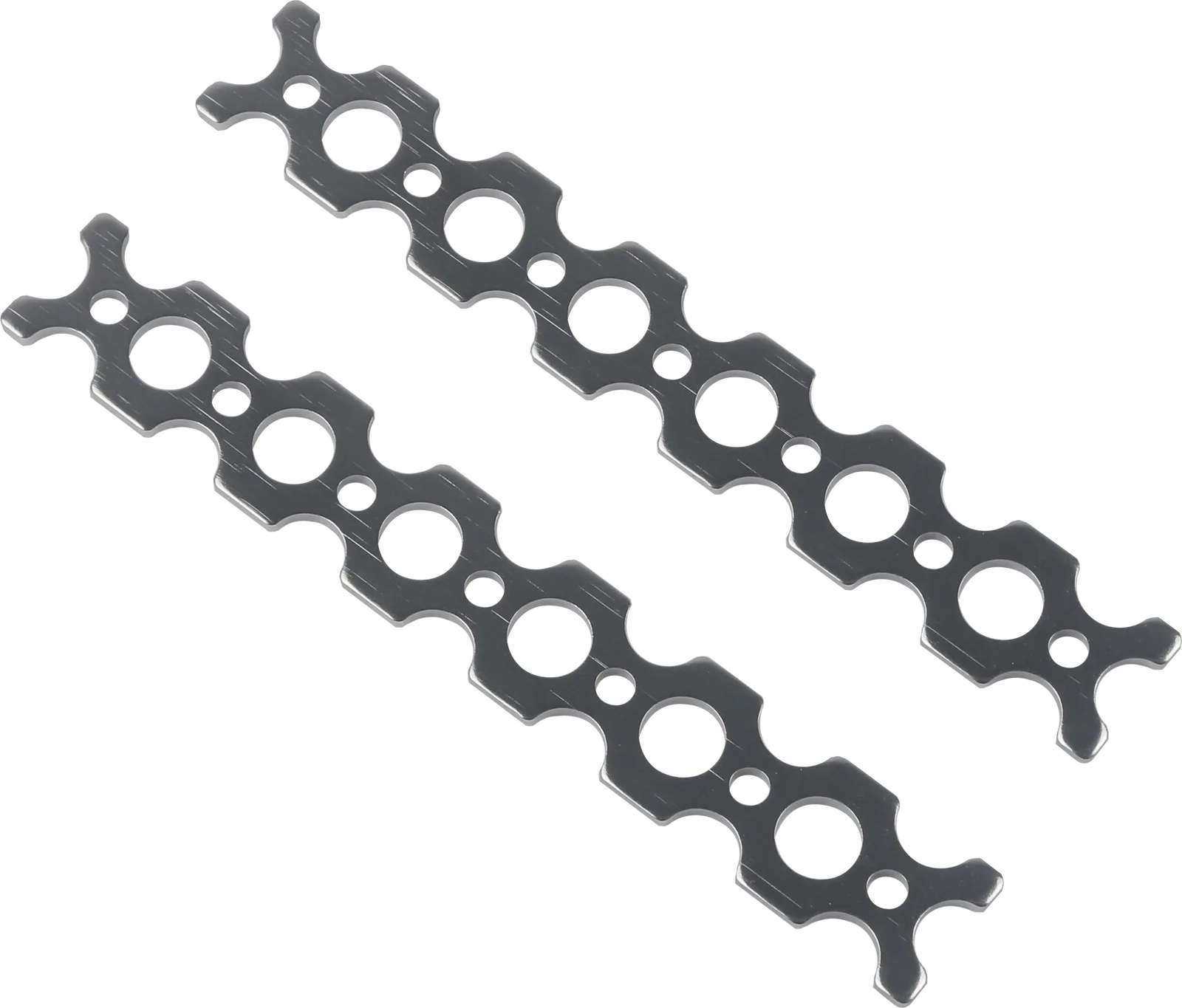

Supplied as a pack of 2.

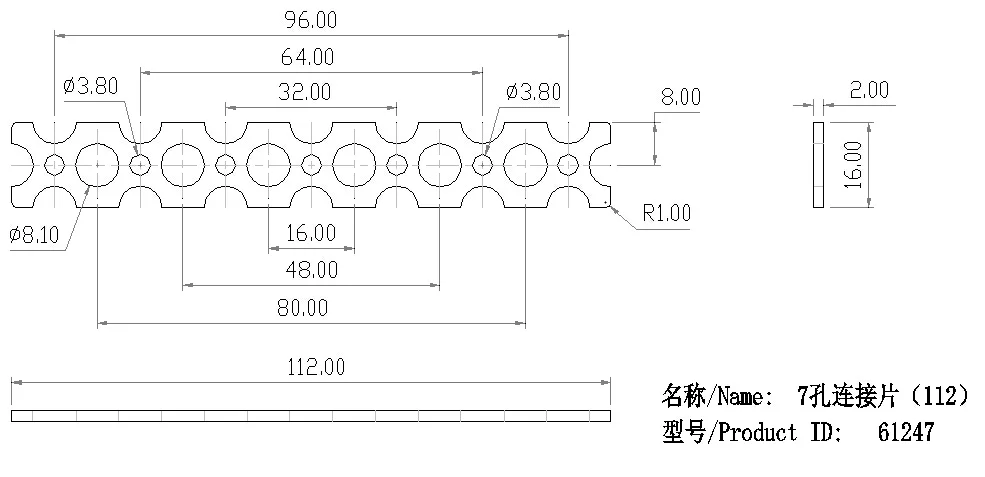

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 61247 |
| Units per pack | 2 |
| Material | 7005 Aluminum |
| Dimensions | 112 mm x 16 mm x 2mm |
| Level | Ages 12+ |
| Weight | 5.26 grams per Linkage |
