3108 Series Flat Pattern Bracket (2-3)
SKU: ZY-3108-0002-0003
R 86,47Ex Tax: R 75,19
On backorder — Ships in ~21 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

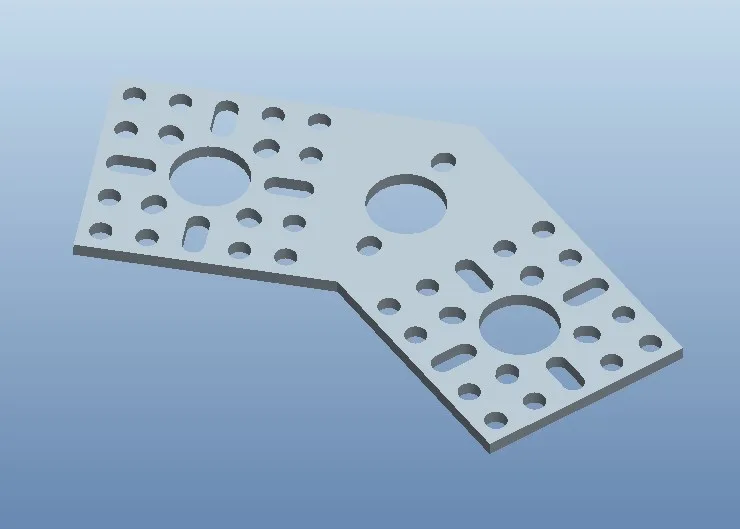

Aluminum Flat Brackets can be used to clad the junction between two structural parts, or to mount items such as a bearing, sensor or motor on your chassis.This flat pattern bracket works well for creating a 135 degree angle between two structural pieces. The 40mm width allows the bracket to slide down inside of channel without contacting the walls.

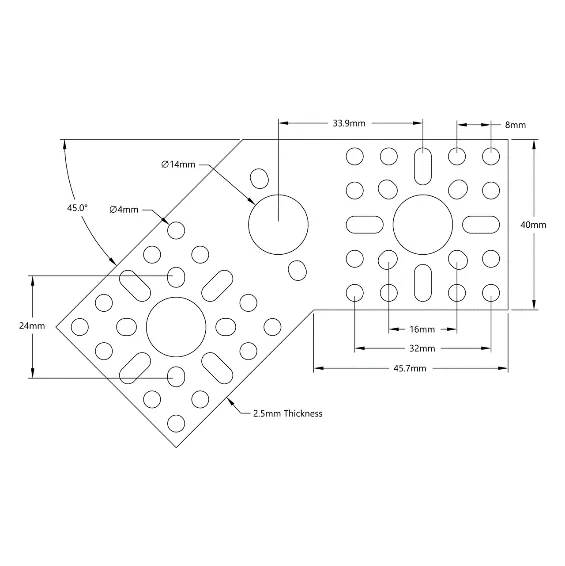

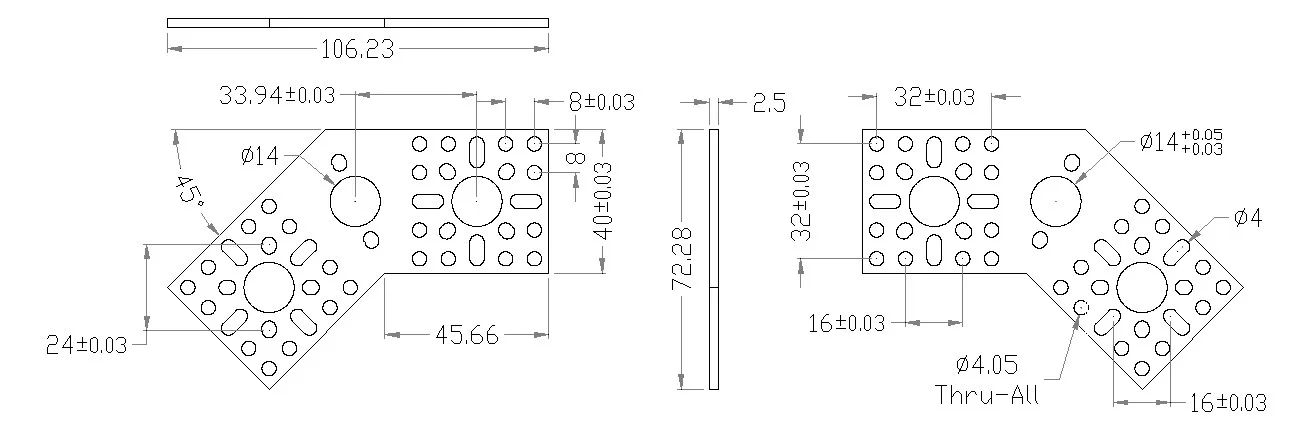

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3108-0002-0003 |
| Weight | 21g |
| Material | Aluminum |
| Finish | Clear Anodized |
