3105 Series Round-End Pattern Plate (6 Hole, 152mm Length)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
This 6-hole Round-End Pattern Plate is made of 2.5mm thick aluminum—striking a great balance between weight and strength. The 16mm Sheen Robotics® pattern, slotted to 24mm across center, repeats down the length of the plate, providing many mounting options. The 14mm holes can be used for 14mm OD bearings as well as parts which contain a 14mm protrusion (like hubs) to ensure concentricity. The 32mm width makes for a more compact option when compared to 3123 Series Pattern Plates. The rounded shape provides added clearance for nearby rotating components.

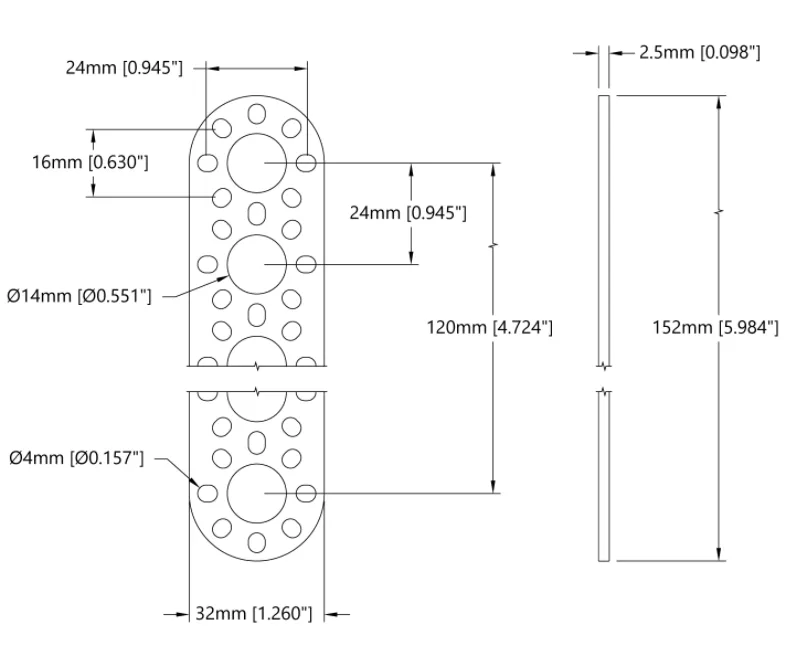

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3105-0006-0152 |
| Material | Aluminum |
| Weight | 21g |
