3105 Series Round-End Pattern Plate (2 Hole, 56mm Length)

Competition eligibility

Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

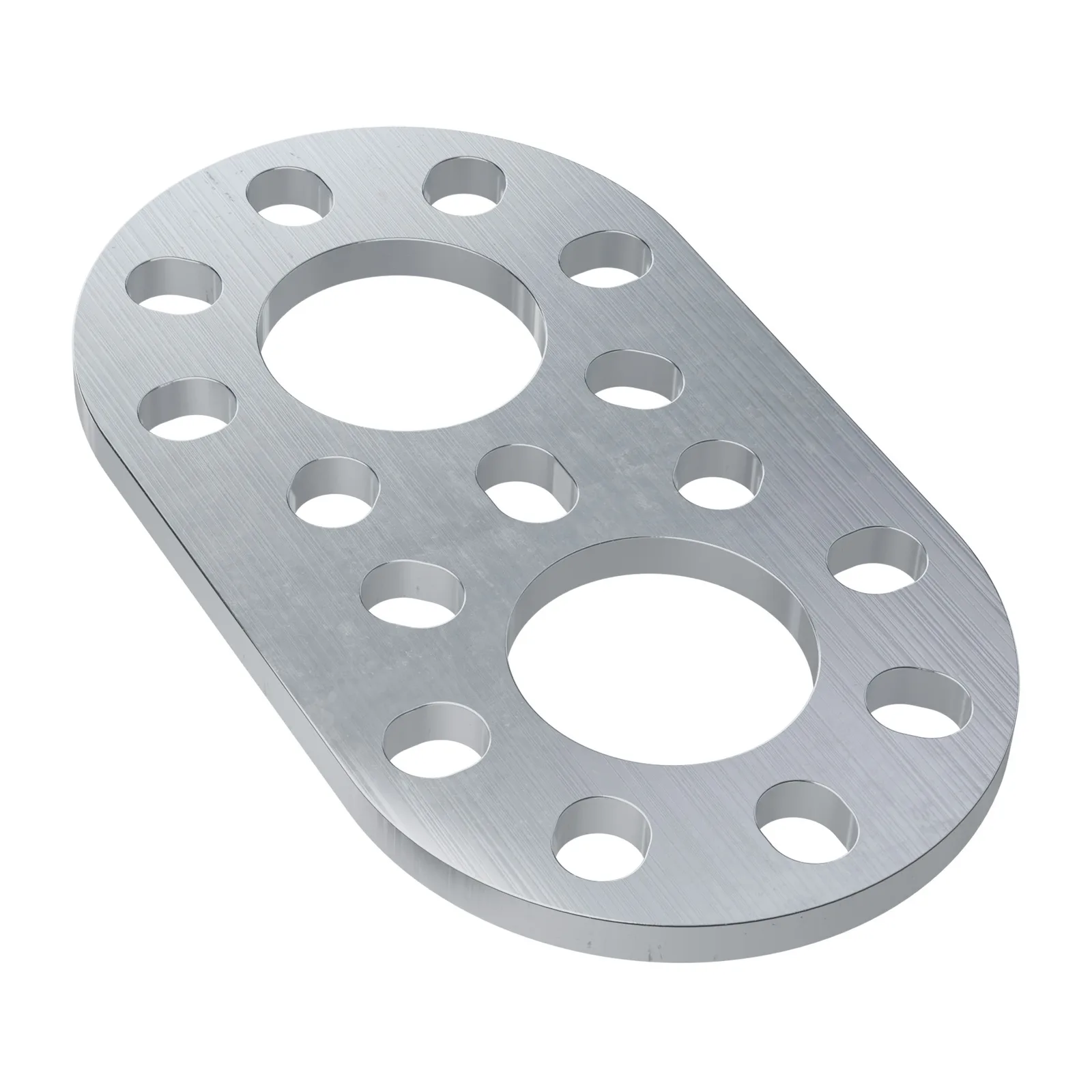

This 2-hole Round-End Pattern Plate is made of 2.5mm thick aluminum—striking a great balance between weight and strength. The 16mm Sheen Robotics® pattern, slotted to 24mm across center, repeats down the length of the plate, providing many mounting options. The 14mm holes can be used for 14mm OD bearings as well as parts which contain a 14mm protrusion (like hubs) to ensure concentricity. The 32mm width makes for a more compact option when compared to 3123 Series Pattern Plates. The rounded shape provides added clearance for nearby rotating components.

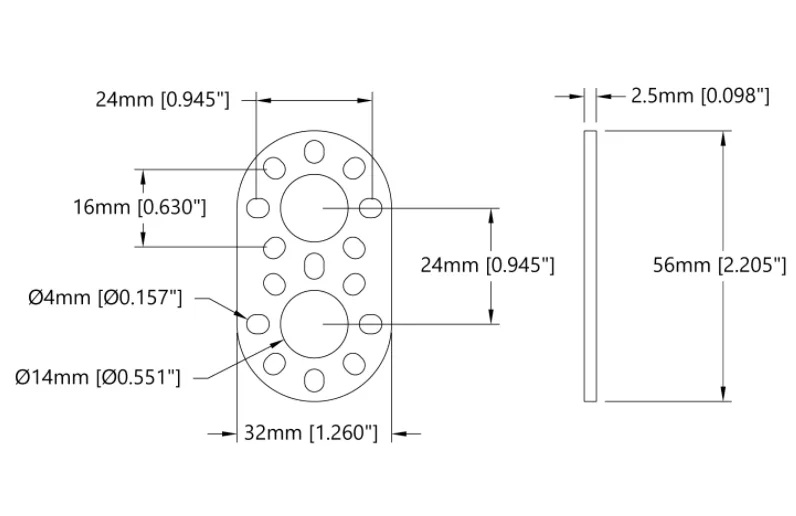

Technical drawing
