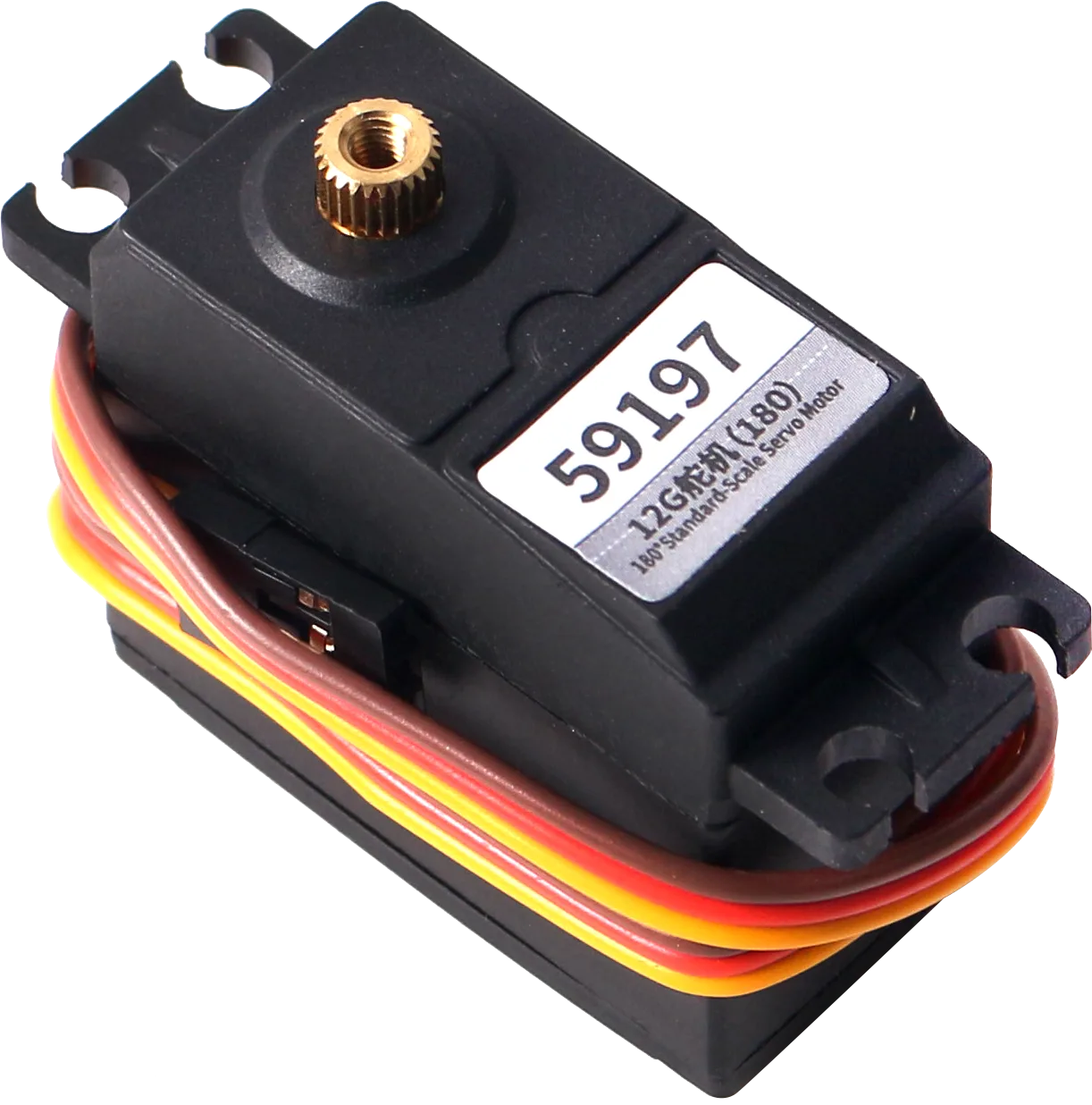

180°Standard-Scale Servo Motor(11KG)
SKU: ZY-59197
R 632,70Ex Tax: R 550,17
Ships in 7–10 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
Consumption Current* (No Load):6.0V/≦140mA7.4V/≦150mA
Max. Torque*:6.0V/≧10 kgf/cm7.4V/≧11 kg/cm
No Load Speed* 6.0V/≦0.32sec/60°7.4V/≦0.27sec/60°
Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 59197 |
| Operating Voltage | 6.0~7.4V DC |
| Standby Current | ≤10 mA |
| Rated Torque | 6.0V/≧8.5 kgf/cm7.4V/≧9.5 kgf/cm |
| Rotating Direction | CCW(680→2380us)逆时针 |
| Pulse Width | Range:680~2380us |
| Neutral Position | 1500us |
| Max. Operating | 180°±10°(680~2380us) |
| Max. Operating Travel Angle | 180°±10°(680~2380us) |
| Mechanical Limit Angle | 210° |
| Communication Interface | PWM |
| Weight | 52±1g |
