2.2 Moisture Sensor

The moisture sensor detects the water content in the soil. It outputs analog values depending on how wet or dry the soil is.

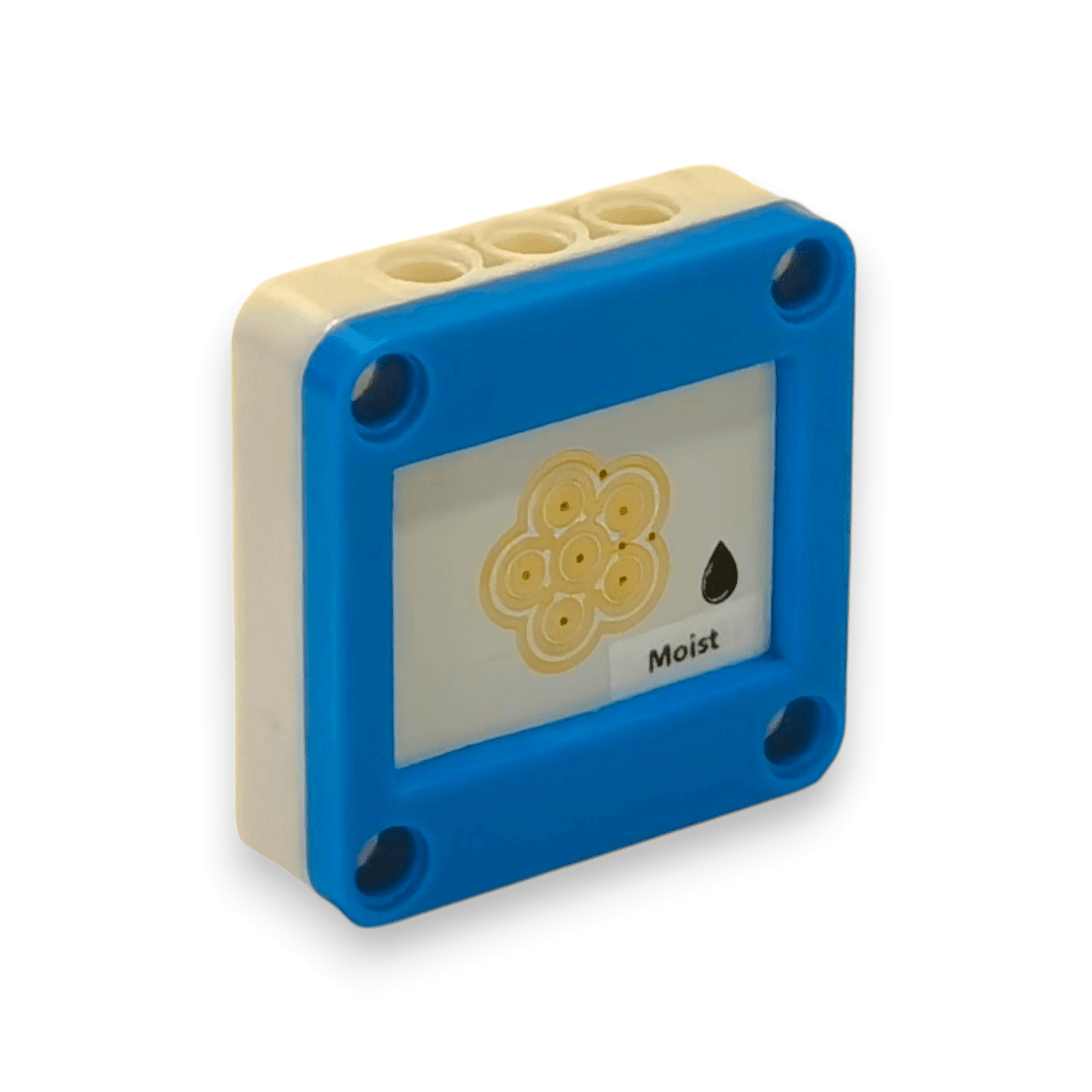

sheenbot∞ Moisture Sensor

Example Applications:

  • Automatic plant watering systems
  • Agricultural field monitoring
  • Soil dryness detection for gardening

2.2.1 Example Code for the Moisture Sensor

  • Connect the moisture sensor to one of the expansion pins using the provided Type-C cable.
  • Drag the read block from the code blocks section to the workspace.
  • From the dropdown in the read block:
    • Select moisture as the sensor type
    • Select the correct pin that corresponds to where the sensor is plugged in
  • Drag a ScreenDisplay block onto the workspace.
  • Insert the configured read moisture block inside the ScreenDisplay block.
  • This setup will:
    • Continuously read soil moisture levels from the sensor
    • Display the values in real time on the screen module

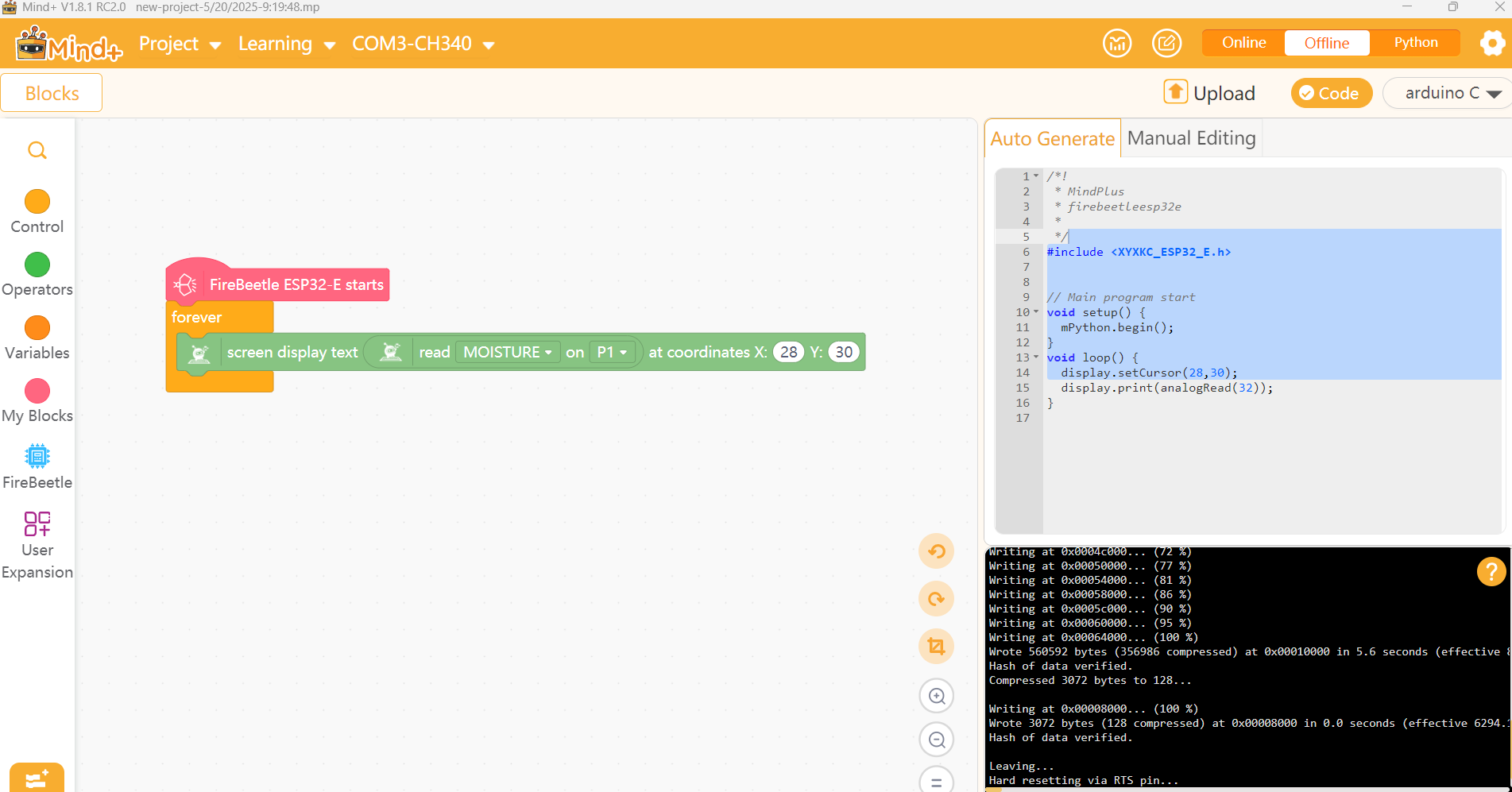

Figure 2.2.1a: Moisture sensor reading displayed using block-based code
