XM-18 Automatic Egg Incubator Controller with Sensors
We haven’t published a price for this one yet — ask and we’ll quote you, usually same day.
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
The XM-18 is an automated microcomputer egg incubator controller designed to regulate environmental parameters for poultry hatching. It monitors temperature and humidity in real time using dedicated external probe sensors while automating egg-turning and ventilation cycles. This module is suitable for agricultural science projects, makers building custom incubators, and hobbyist breeders.
Precise climate and timing control
The controller features 7 signal outputs to manage heating, insufficient temperature alarms, over-temperature protection, humidity regulation, lighting, and bidirectional egg turning. Configurable timing intervals allow custom egg-turning and ventilation cycles to match specific incubation requirements.
Dual sensor monitoring
It includes dedicated temperature and humidity sensors providing accurate real-time feedback with a temperature range of 0 to 99 degrees Celsius and humidity range of 0 to 99 percent RH.
Package contents

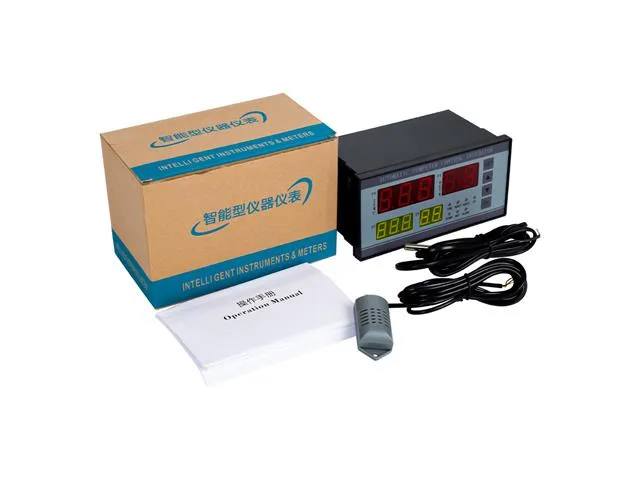

The kit includes one XM-18 incubator controller unit, one temperature sensor with an approximately 2-metre cable, and one humidity sensor probe.
Specifications
| Device | Incubator Controller |
| Type | Automatic | Egg |
| Model | XM-18 |
| Working Voltage | AC 160V ~ 240V, 50Hz |
| Temperature Measuring Range | 0-99℃ |
| Temperature Measurement Accuracy | ±0.1℃ |
| Humidity Measurement Range | 0-99% RH |
| Humidity Accuracy | ±3% RH |
| Number of Signal-Output | 7 |
| Temperature Control Load Current | ≤8A AC220V |
| Other Outputs Load Current | ≤1A AC220V |
| Egg-Turning Record Maximum | 999 times |
| Egg-Turning Cycle | 0 - 999 minutes (default 90 minutes) |
| Egg-Turning Time | 0 - 999 seconds (default 180 seconds) |
| Ventilation Cycle | 0 - 999 minutes (default 120 minutes) |
| Ventilation Time | 0 - 999 seconds (default 30 seconds) |
| Temperature Line Length | about 2 meters |
| Dimensions | 16cm x 9cm x 8cm |
| Ambient Temperature | -10 ~ 60 C |
| Relative Humidity | < 85% |
