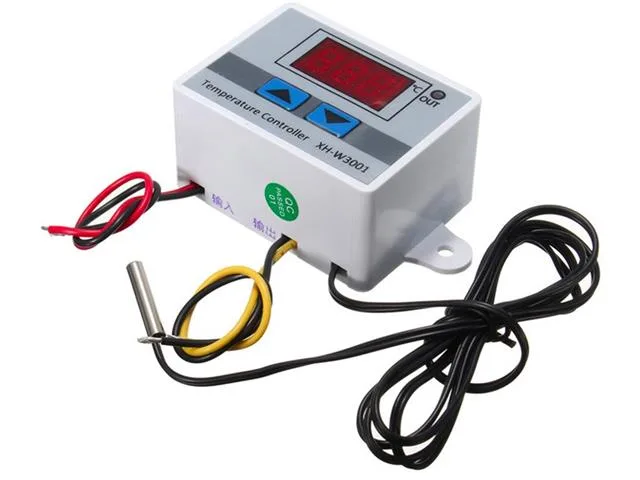

XH-W3001 Digital LED Temperature Controller, 12V 10A
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
The XH-W3001 is a standalone digital LED temperature controller module designed for 12V DC operation with a 10A output capacity. It monitors and regulates temperatures across a wide -50°C to 110°C range using an included 1-metre waterproof probe. This module is ideal for students, hobbyists and makers building automated thermal regulation systems.
Simple dual-button configuration
Easily configure target thresholds using the upfront push buttons. A short press displays the set start or stop temperature, while a long press makes the readout flash so you can adjust the values.
Accurate sensing and wide range
Featuring a measurement and control span from -50°C to 110°C, the unit delivers ±0.1°C control accuracy and ±0.2°C measurement accuracy. It connects directly to an included 1-metre waterproof NTC10K probe.
Compact enclosure design

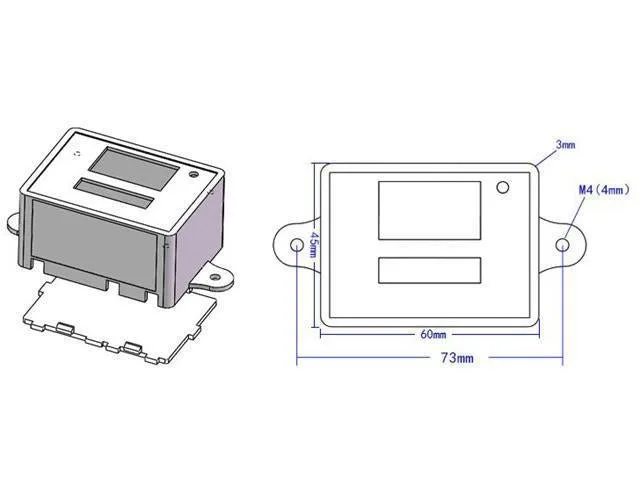

With an overall footprint of 60 x 45 x 31 mm, the controller integrates the digital LED display and control circuitry into a compact housing for easy mounting in DIY enclosures and project builds.
Specifications
| Device | Controller |
| Type | Digital | LED | Temperature |
| Model | XH-W3001 |
| Device Type | Digital LED Temperature Controller |
| Operating Voltage | 12VDC |
| Output Rating | 10A |
| Temperature Measuring Range | -50 ~ 110℃ |
| Temperature Control Range | -50 ~ 110℃ |
| Temperature Measurement Accuracy | ±0.2℃ |
| Temperature Control Accuracy | ±0.1℃ |
| Input Measurement | NTC10K probe L = 1 meter waterproof |
| Dimensions | 60 x 45 x 31 mm |
