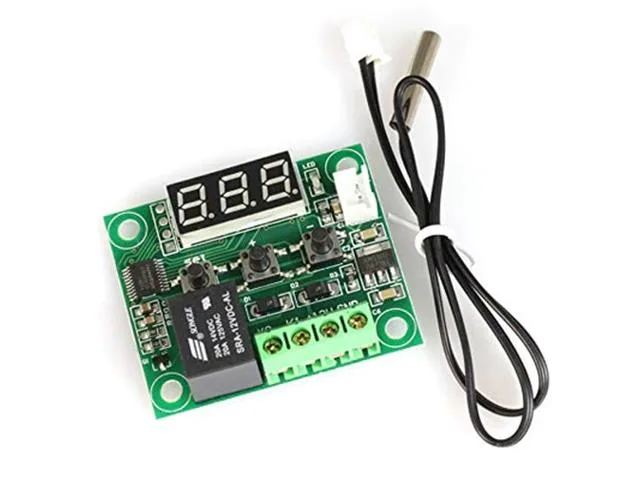

XH-W1209 Digital Thermostat Temperature Controller Module, 12V, 10A
We haven’t published a price for this one yet — ask and we’ll quote you, usually same day.
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description

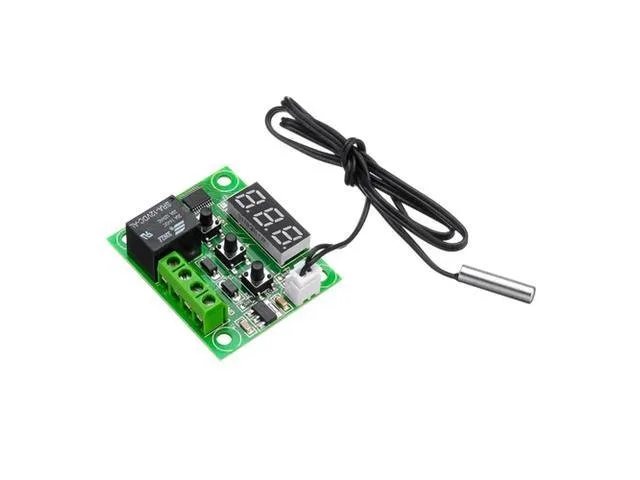

The XH-W1209 is a compact digital temperature control module equipped with an LED display and an onboard 10A switching relay. It accurately measures and regulates temperatures between -50°C and +110°C using an external waterproof NTC probe. This unit is well suited to hobbyists, students and makers building automated heating or cooling setups.
Automated temperature regulation
The module provides ON/OFF switching control across a -50°C to +110°C range with 0.1°C control and hysteresis accuracy. It features high temperature protection settings up to 110°C and refreshes its reading every 0.5 seconds.
Power and relay output
Powered by a 12V DC supply, the board draws 35mA or less in static mode and up to 65mA when the relay is engaged. The onboard relay supports switching loads up to 10A.
Sensor and physical dimensions

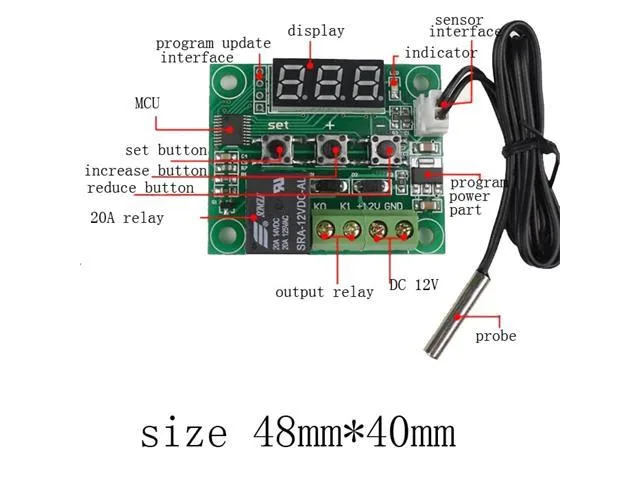

The controller measures 48 x 40mm and connects to an included 10K 0.5% waterproof NTC temperature sensor on a roughly 52cm lead. It operates reliably in ambient environments from -10°C to 60°C with 20% to 85% humidity.
Downloads
Specifications
| Device | Temperature Module |
| Type | Digital | Thermostat |
| Model | XH-W1209 |
| Supply voltage | DC 12V (MAX) |
| Static current | ≤35MA |
| Attract current | ≤65MA |
| Output power | 10A relay |
| Measurement input | NTC (10K 0.5%) Waterproof Sensor |
| Temperature range | -50 ~ +110°C |
| Control accuracy | 0.1°C |
| Hysteresis accuracy | 0.1°C |
| Refresh rate | 0.5S |
| High temperature protection | 0 ~ 110°C |
| Resolution | 0.1°C (-9.9~99.9), 1°C for other ranges |
| Cable length | About 52 cm |
| Dimensions | 48 x 40mm |
| Environmental requirements | -10 ~ 60°C, Humidity 20% ~ 85% |
| Temperature control mode | ON OFF |
