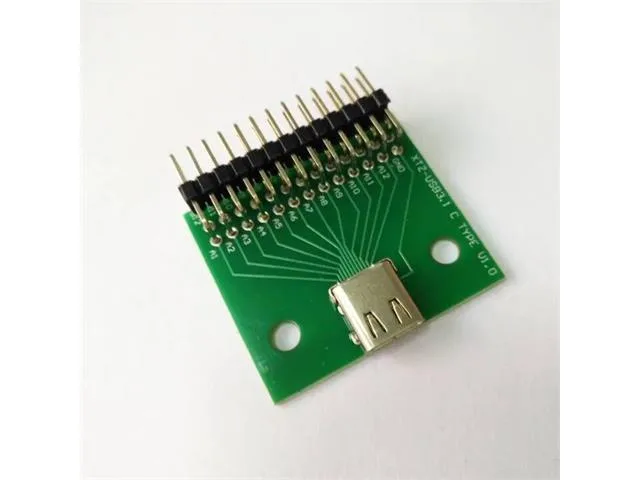

USB 3.1 Type-C 24-Pin Double-Sided Breakout Board

This 24-pin USB 3.1 Type-C breakout board provides full access to all double-sided pin connections of a standard USB-C receptacle. It is designed for students, hobbyists, and makers who need to integrate modern USB-C connectivity into custom electronics projects. The board simplifies prototyping, testing, and circuit development without difficult micro-soldering.

Full 24-pin breakout

The module breaks out all 24 pins of the USB 3.1 Type-C connector onto accessible solder pads. This gives you complete access to power, data lines, and configuration channels for versatile project wiring.

Double-sided pin access

With its double-sided breakout layout, this board allows clear and structured connections to every pin. It makes probing signals, measuring voltages, and prototyping custom interfaces straightforward.

Ideal for prototyping and development

Suitable for classroom experiments, DIY electronics, and hardware design. It offers an easy way to supply power to projects or create custom USB-C cables and adapters.
