Updated Version Keyestudio L298P Shield With Power Switch For Arduino UNO R3

The Keyestudio L298P Shield is a robust dual-channel DC motor driver designed to plug directly into your Arduino UNO R3. It is ideal for students, educators, and hobbyists building mobile robots or automated systems that require precise motor control. With an integrated power switch and a dedicated prototyping area, it simplifies your wiring and project layout.

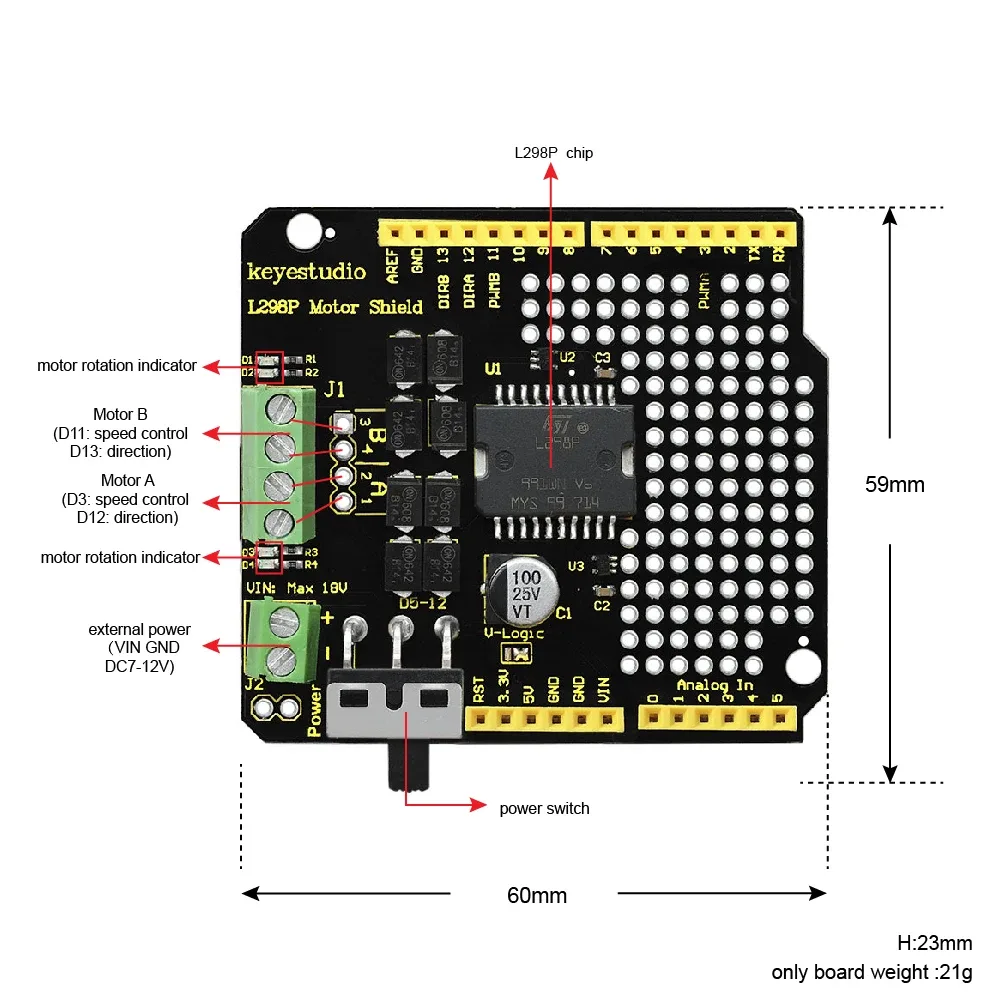

Dual-channel DC motor control

Built around the L298P driver chip, this shield allows you to control two DC motors simultaneously. It features green terminal blocks for secure connections and can be powered directly through the terminal blocks or the Arduino UNO R3 DC jack up to a maximum of 18V DC.

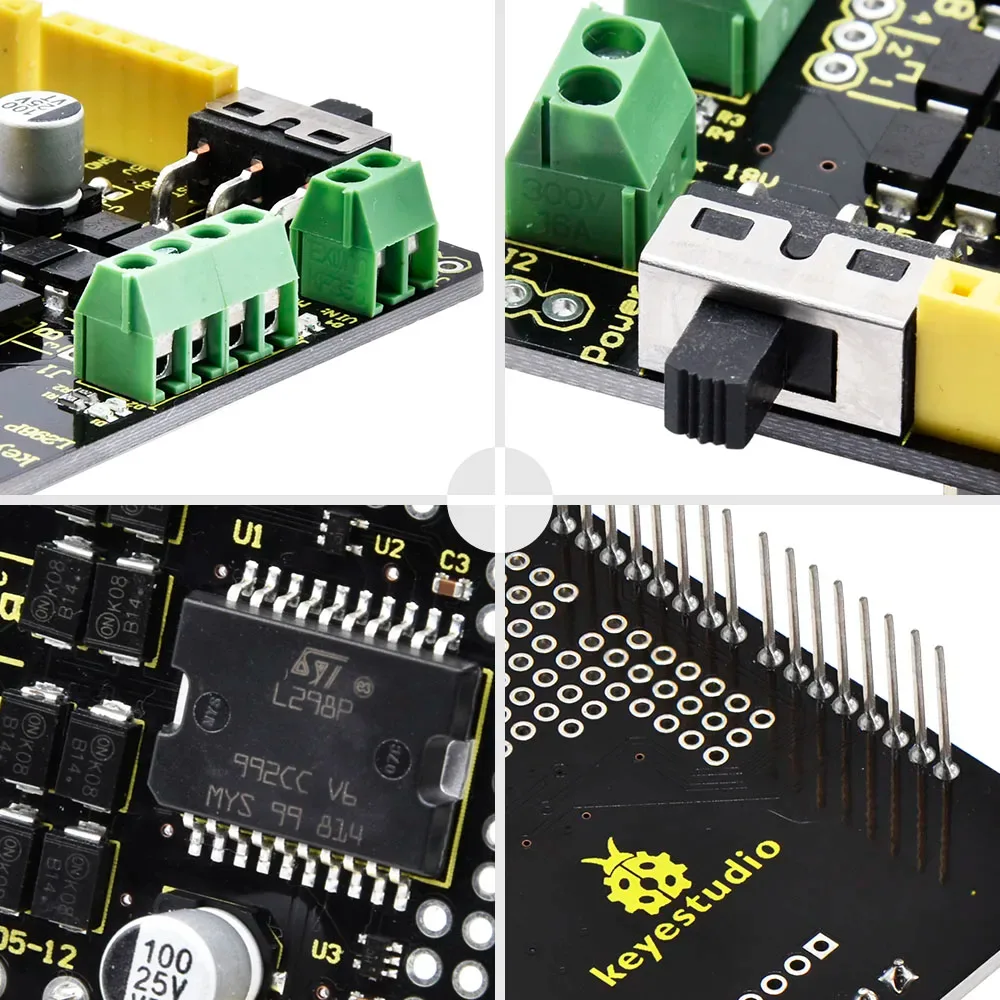

Integrated prototyping area

The shield includes a built-in soldering pad area, allowing you to solder your own electronic components and design custom prototype circuits directly on the board. This eliminates the need for an external breadboard in compact robotics designs.

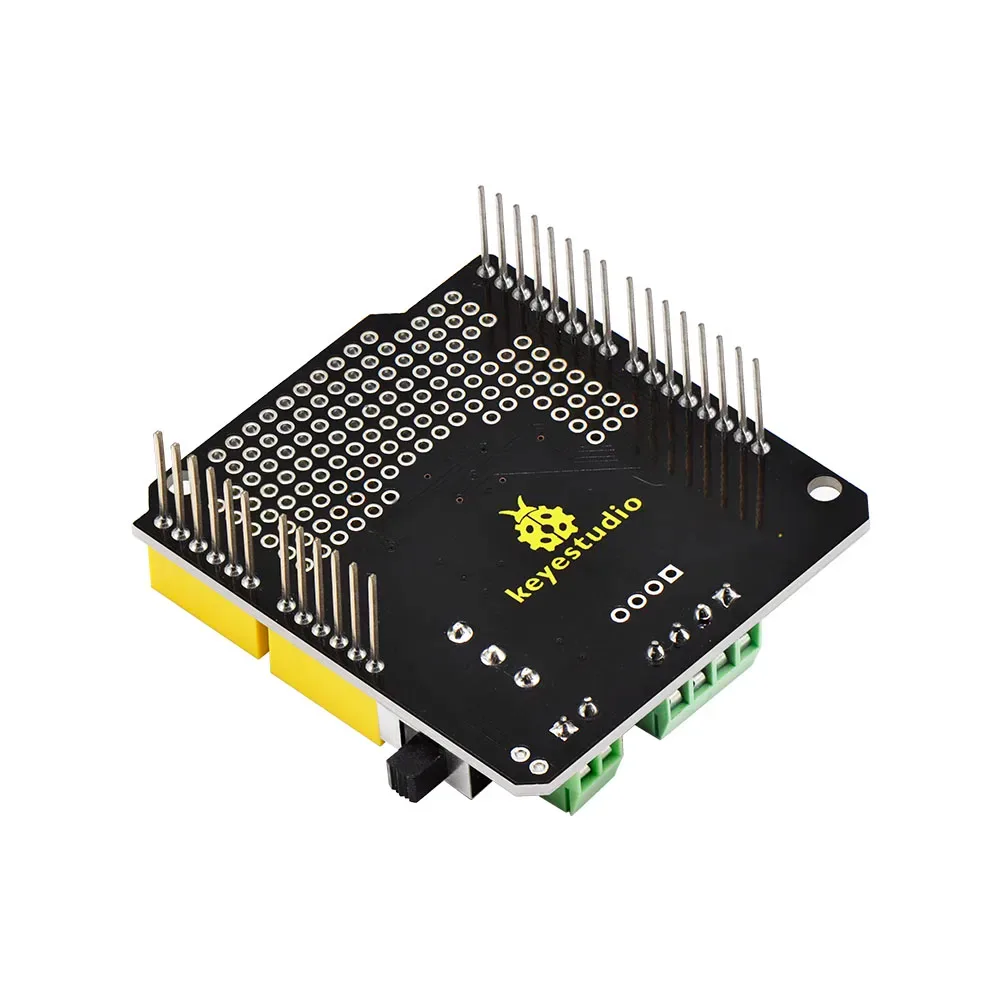

Convenient power control switch

An onboard DIP switch provides easy power control, allowing you to quickly toggle power to the shield. This is particularly useful for safely testing code updates without needing to unplug physical cables.

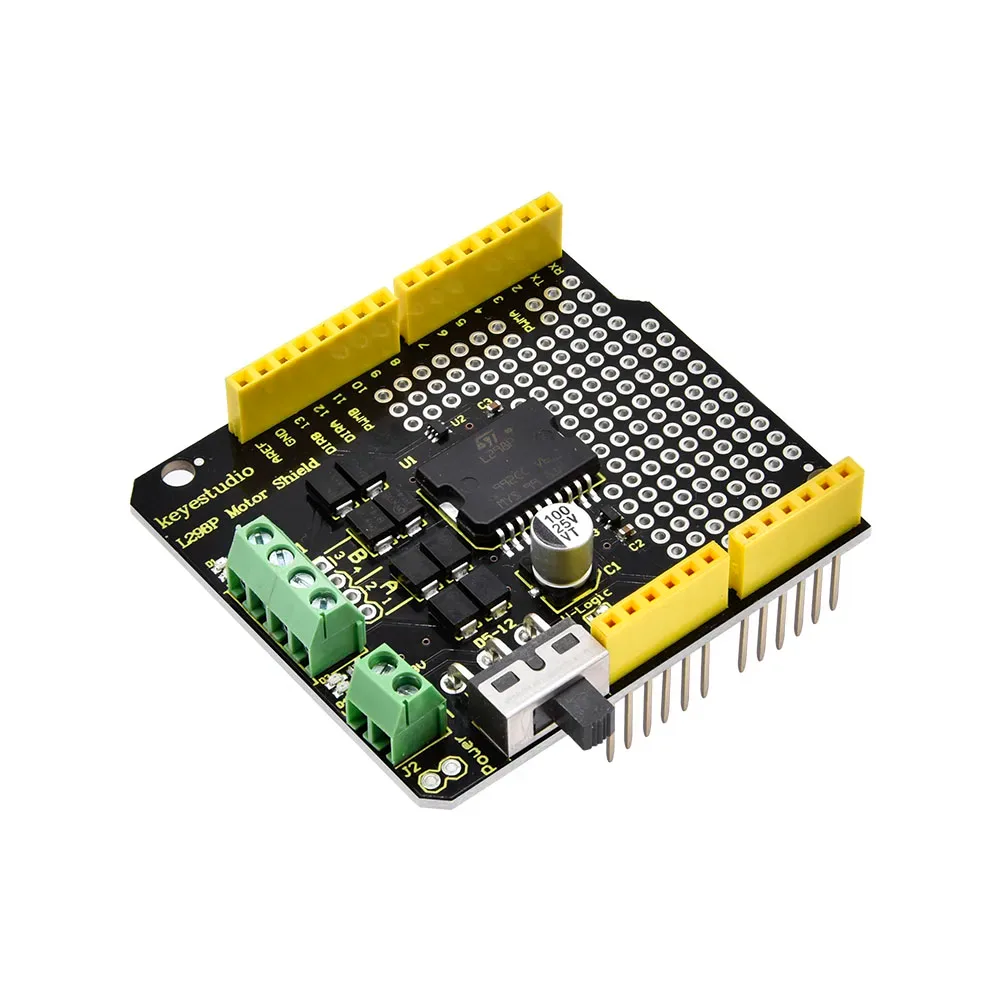

Dual H-bridge driver specifications

Operating as a dual power H-bridge driver, the board supports a logic input voltage of 5V with a low working current of 36mA or less. The driving part handles up to 2A of current, making it suitable for a wide range of hobbyist motors.

Flexible voltage and power limits

The shield supports a maximum driving input voltage of 18V DC, with a recommended range of 7V to 12V DC. It operates reliably in temperatures from -25 degrees Celsius up to 130 degrees Celsius, with a maximum power dissipation of 25W at 75 degrees Celsius.
