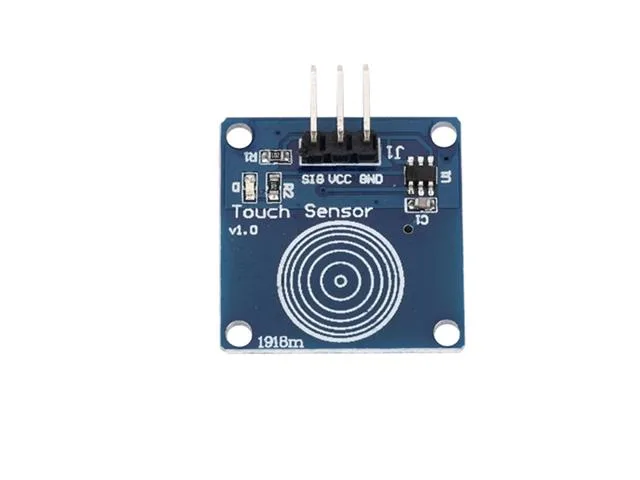

TTP223B Capacitive Touch Switch Sensor Module
We haven’t published a price for this one yet — ask and we’ll quote you, usually same day.
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
This capacitive touch switch module uses the Tontek TTP223B detector IC to provide reliable touch-activated switching. Touching the sensor toggles the signal output state repeatedly between high and low, accompanied by onboard indicator lighting. It is an easy-to-use digital input module suited to students, hobbyists, and maker electronics projects.
Toggle touch operation
The sensor acts as a toggle switch where an initial touch sets the signal pin high and a subsequent touch sets it low. Integrated indicator lights visually reflect the state changes.
Simple three-pin interface
Connections are made using three standard pins labelled G for ground, V for VCC power, and S for signal output. The module operates with a power supply range between 2.0V and 5.5V.
Compact and responsive design
With a small footprint of 24x24x7.2mm, the module delivers a fast response time of 60ms in touch mode and 220ms in low power mode with a low 5mA operating current.
Specifications
| Device | Switch Module |
| Type | Capacitive | Touch |
| Detector IC | Tontek TTP223B |
| Power Supply Voltage VCC | 2.0V-5.5V |
| Current | 5mA |
| Output High VOH | 0.8VCC |
| Output Low VOL | 0.3VCC |
| Output Pin Sink Current | 8mA |
| Output Pin Pull-up Current | 4mA |
| Response Time (touch mode) | 60mS |
| Response Time (low power mode) | 220mS |
| Interface | G (GND), V (vcc), S (signal) |
| Size | 24x24x7.2mm |
