TM1638 8-Digit LED Display and Keypad Module
We haven’t published a price for this one yet — ask and we’ll quote you, usually same day.
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description

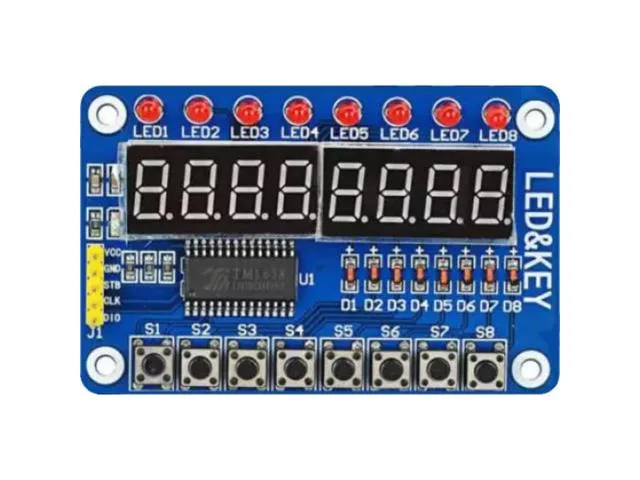

This TM1638 module combines an eight-digit seven-segment LED display, eight status LEDs, and eight input keys on a single board. Powered by the onboard TM1638 controller chip, it offloads key and display scanning while requiring only three microcontroller I/O pins. It is well suited for students, makers, and hobbyists building compact control panels and user interfaces.
Integrated user interface
The module brings together eight common-cathode digital tubes, eight indicator LEDs, and eight sensitive push keys. It consolidates multiple common peripheral circuits into a compact design to streamline project assembly.
Efficient microcontroller operation
Using an onboard TM1638 driver, the module handles display multiplexing and keypad scanning independently. The host microcontroller only reads and writes relevant registers over three I/O lines, conserving vital MCU processing resources.
Physical and electrical specifications
The board measures approximately 75 mm by 48 mm and operates across a DC voltage range of 7.0 V to 13.6 V with a rated voltage of 12 V DC. It is rated for an operating temperature range of -10 °C to 70 °C.
Downloads
Specifications
| Device | Module |
| Type | Battery | Over Discharge | Protection |
| Controller Chip | TM1638 |
| Display | 8 Bits, 8 digital tubes (common cathode) |
| LEDs | 8 LEDs |
| Keys | 8 keys |
| Size | 75mmx48mm/2.95"x1.89"(inch) (approx) |
| The rated voltage | DC12V |
| Voltage range | DC7.0 V-13.6 V |
| The input power | 0.24 A |
| The rated speed | 9500 R.P.M |
| Temperature range | -10 - 70 ° C |
