ServoBlock™ (Large Size, 25 Tooth Spline, Hub Shaft)

Competition eligibility

Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

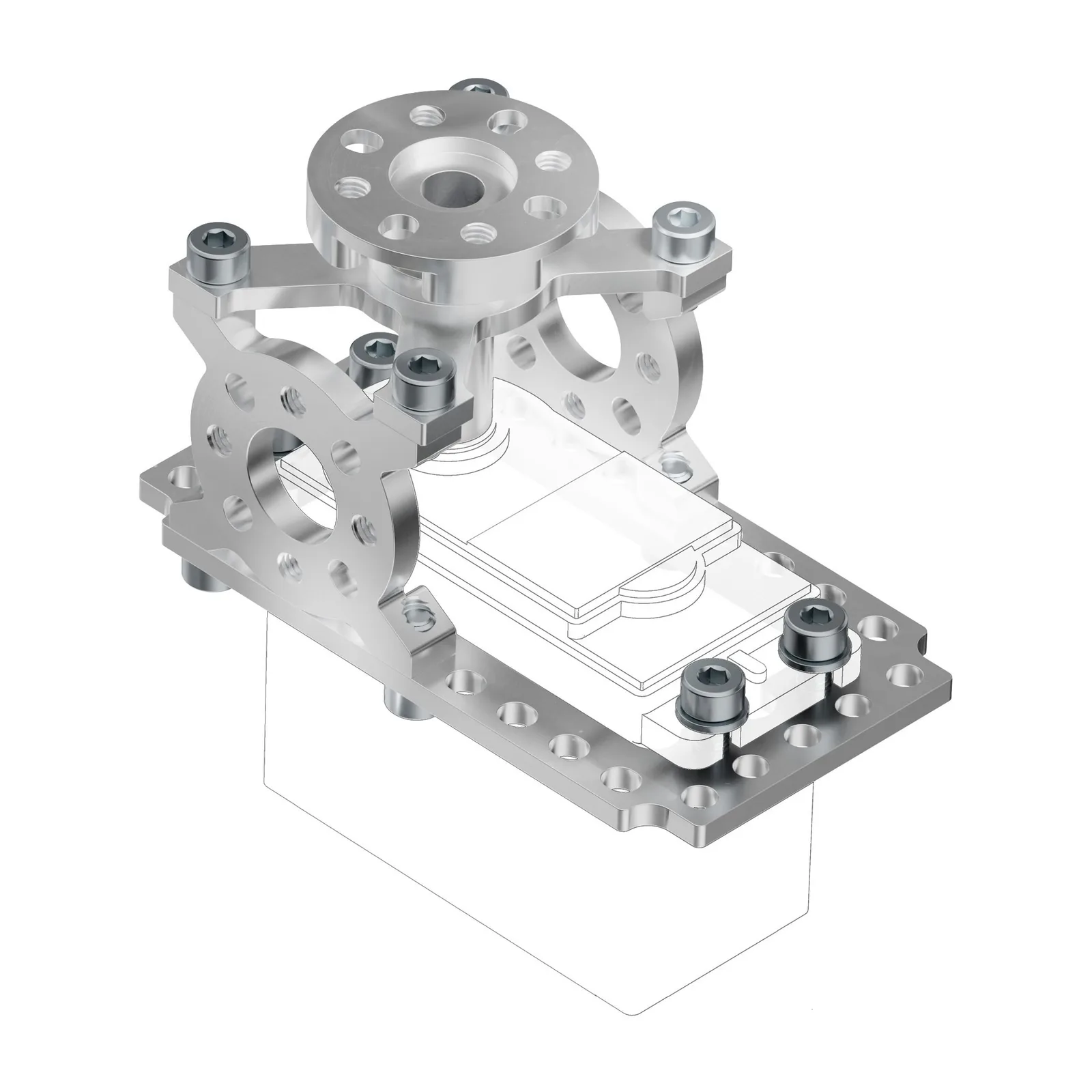

Servos are able to generate a lot of torque but many times the limiting factor is not the amount of torque, but rather the amount of radial load that the output spline of the servo can handle. A ServoBlock acts as an exoskeleton which isolates the radial load from the servo spline and applies it to the 10mm bearing supporting the shaft. The ServoBlock doubles as a mount, providing solid attachment options from nearly every side. This size is based around a large sized servo, commonly known as ¼ scale within the R/C community. The Hub-Shaft versions provide an all-in-one output shaft that you can fasten a part directly to while the 10mm shaft versions allow a 10mm clamping hub to slide on for an adjustable deck-height and infinite clocking of attaching parts.Isolate the radial load from your servo with a ServoBlock™! This 25 tooth version has a hub-shaft which contains both threaded holes and thru-holes in order to mount nearly any thefirsttool part to the top with ease.

IP Patented

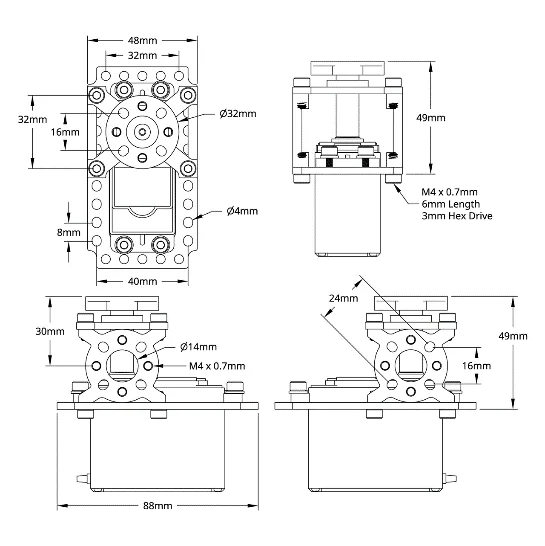

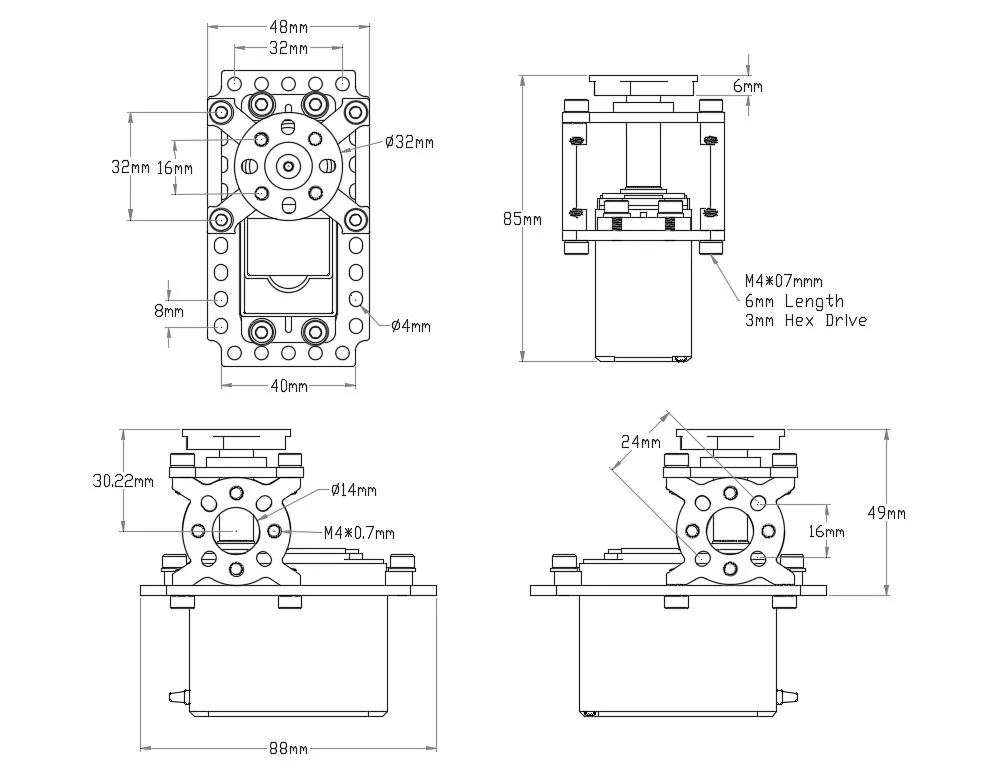

Technical drawing
