Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

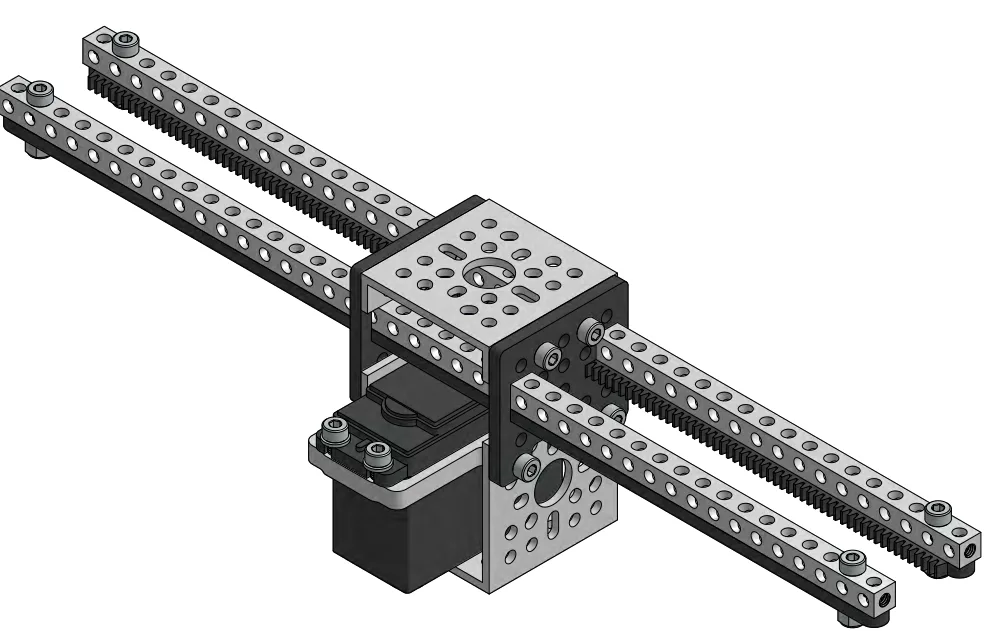

The Dual Gear Rack Kit is a simple way to create linear motion using a rotational servo. This Dual Gear Rack Kit is driven by the Servos which allows for up to 241mm of travel from each of the gear racks when sending the proper PWM signal from a servo controller. The kit is constructed of aluminum components and wear resistant Delrin plastic to create a durable yet lightweight assembly. The channel-based design of the frameworkallows many mounting options from the top, sides and bottom and integrates seamlessly with the rest of the firsttool and Sheen Robotics line of products. The Dual Gear Rack Kit is great for projects that require symmetric linear movement from a common center point using a PWM signal. The kit comes with all the necessary pieces, minus the Servos

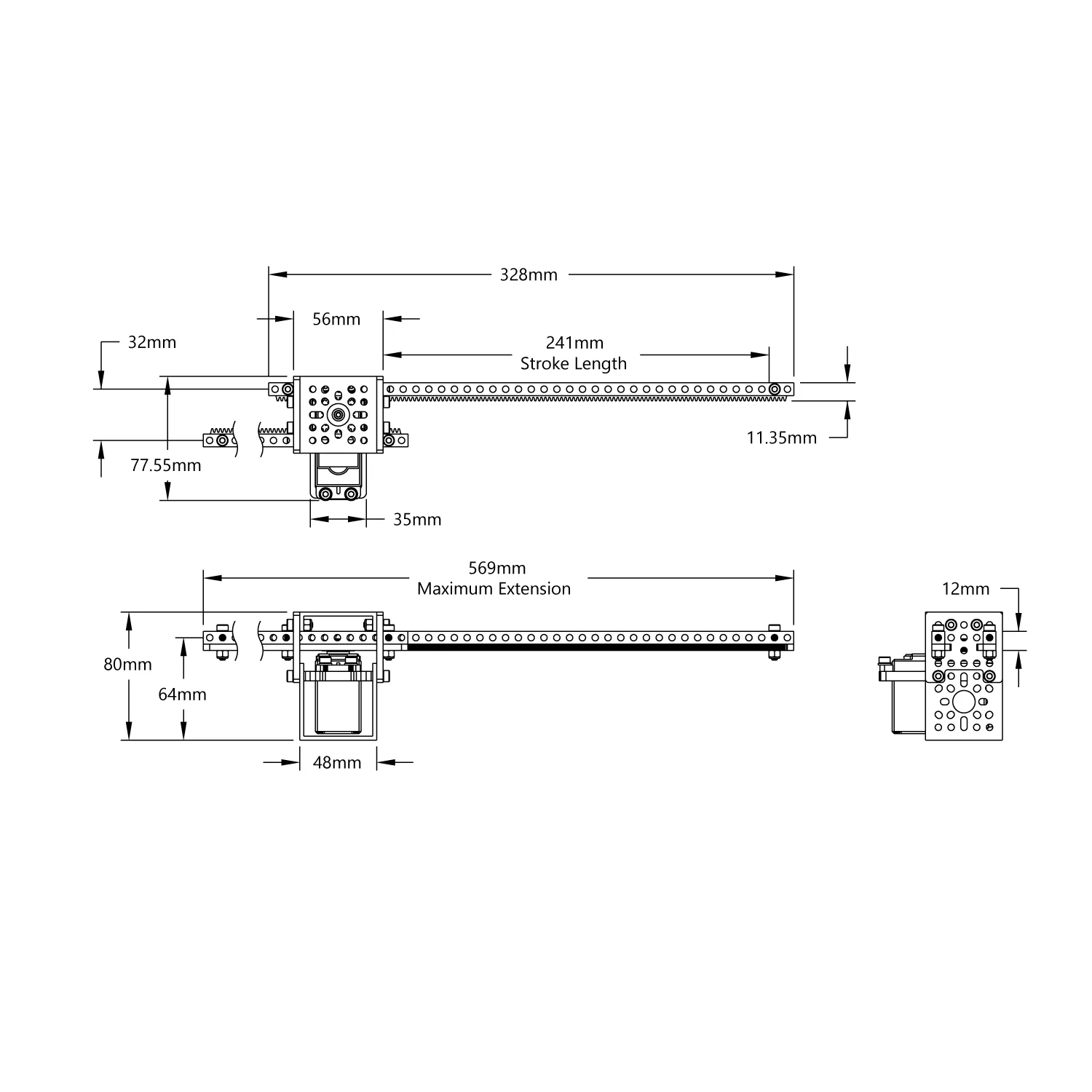

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | A5207-0001-0002 |
| Servo Compatibility size | (Large Size 67.7mm*15.9mm , Standard Size 48mm*9.9mm, 48.9mm*9.9mm) |
