Description

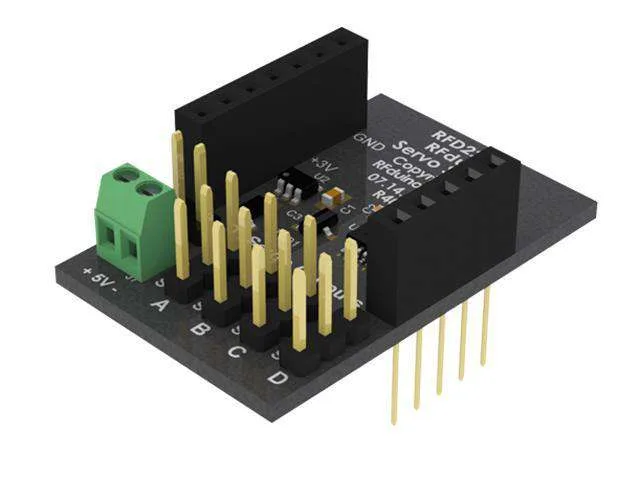

The RFduino RFD22123 Servo Shield allows you to drive up to four servo motors directly from your RFduino module. It pairs with the RFduino Servo iOS app to enable wireless servo positioning and motion. This compact add-on is well suited for makers, students, and hobbyists building wireless robotics projects.
Four-channel servo driving
The shield provides dedicated outputs to connect and control up to 4 servos simultaneously. An external 5 to 6 V DC power supply is required to deliver adequate power to the connected servo motors.
Wireless iOS control
This shield is compatible with the official RFduino Servo iOS app, allowing you to wirelessly control motor angles and positions directly from your mobile device.
Compact footprint
Designed to stack cleanly with RFduino hardware, the board features a compact profile measuring 22.86 mm wide by 5.56 mm (1.400 inch) long for space-sensitive enclosures.
Downloads
Specifications
| Item | RFD22123 |
| Input Voltage | 6VDC max |
| Servo Power Supply | 5~6VDC |
| Servo Outputs | 4 |
| Size – Width | 22.86mm (0.900 Inch) |
| Size – Length | 5.56mm (1.400 Inch) |
