Pro'sKit MT-1630 3 1/2 Digital Multimeter
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description

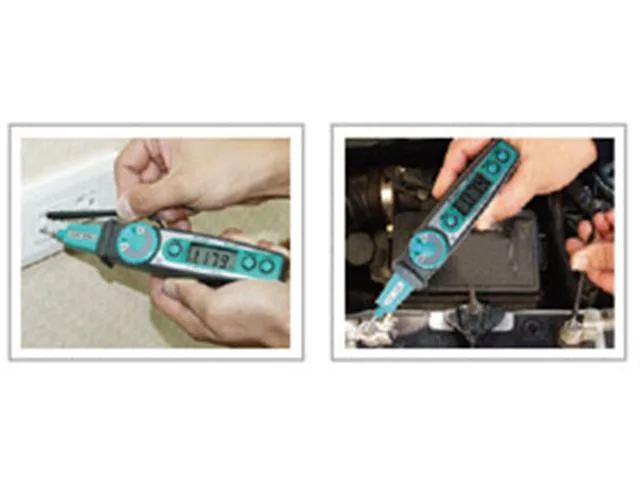

The Pro'sKit MT-1630 is a compact, pen-style 3 1/2 digital multimeter designed for quick and portable electronic testing. It measures AC/DC voltage, current, resistance, diodes, and continuity, making it an essential diagnostic tool for students, hobbyists, and makers. With an integrated penlight and protective test prod mechanism, it allows safe and convenient troubleshooting in any workspace.
Compact and portable design
Weighing only 90g without batteries, this lightweight pen-type meter is easy to handle and carry. A built-in penlight brightly illuminates measurement points in low-light environments.
Versatile measurement capabilities
The meter supports auto-ranging for AC/DC voltage up to 600V, AC/DC current up to 200mA, and resistance up to 20MΩ. It also includes functions for diode testing and audible continuity checks.
Safety and power management
Featuring a unique test prod protection mechanism and fuse protection, it ensures safe day-to-day operation. An auto power-off function and low battery indicator help conserve and monitor battery life.
Specifications
| Device | Multimeter |
| Type | 3 1/2 | Digital |
| Display Count | 1999 (3 1/2 digits) |
| DC Voltage | 200mV ~ 600V ± (0.8% + 5d) |
| AC Voltage | 2V~200V ± (1.0% + 3d), 600V ± (1.2% + 3d) |
| DC Current | 20mA~200mA ± (1.5% +10d) |
| AC Current | 20mA~200mA ± (3.0% +10d) |
| Resistance | 200Ω ± (1.0% + 5d), 2kΩ~2MΩ ± (1.0 + 3d), 20MΩ ± (1.2% + 5d) |
| Continuity Test | Yes |
| Diode Test | Yes |
| Auto-Range | Yes |
| Sampling Rate | Approximate 3 times per sec. |
| Fuse Protection | Yes |
| Auto Power Off | Yes |
| Low Battery Indication | Yes |
| Over Range Indication | Yes |
| Battery | 1.5V x 2 LR44 (not included) |
| Dimensions | 205mm x 35mm x 30mm |
| Weight | 90g (without batteries) |
| Operating Temperature | 0°C~40°C (<85% R.H) |
| Storage Temperature | -10°C~50°C (<70% R.H, remove battery) |
