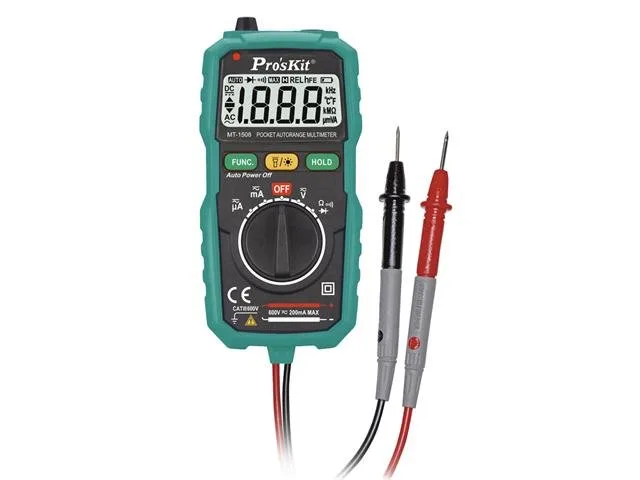

Pro'sKit MT-1508 Pocket Auto-Ranging Digital Multimeter
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
The Pro'sKit MT-1508 is a compact, auto-ranging digital multimeter designed for convenient and accurate electrical measurements. Featuring a 3 1/2 digit backlit display, non-contact AC voltage detection, and a built-in LED flashlight, it provides versatile diagnostic capability for electronics projects. Its pocket-sized form factor makes it ideal for students, hobbyists, and makers working in the classroom or at the workbench.
Safe and convenient testing
The multimeter complies with CE EN61010-1 CATIII 600V safety standards and incorporates an integrated non-contact AC voltage detector for rapid live-line detection. A built-in LED flashlight allows users to illuminate dim workspaces while taking readings.
Clear display and auto-ranging
A 3 1/2 digit, 1999-count backlit display ensures measurement readings remain easy to see and understand. The auto-ranging functionality automatically chooses the correct measurement range for faster, hassle-free testing.
Helpful measurement features
Additional functions include diode testing, audible continuity, data hold, auto power off, low battery indication, and over-range indication. The meter is powered by two 1.5V AAA batteries in an ultra-portable enclosure.
Specifications
| Device | Multimeter |
| Type | Pocket | Auto Range |
| Display | 3 1/2 digits, 1999 counts with backlight |
| DCV | 200mV/2V/20V/200V± (0.5%+3d) 600V±(0.8%+5d) |
| ACV | 2V/20V/200V±(0.8%+3d) 600V±(1.0%+5d) |
| DCA | 200µA/2000µA 20mA/200mA±(1.8%+5d) |
| AVA | 200µA/2000µA 20mA/200mA±(2.0%+5d) |
| Resistance | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ±(1.0%+3d) 20MΩ±(1.2%+15d) |
| Non contact ACV detector | Y |
| Diode test | Y |
| Continuity with beep | Y |
| Certificate | RoHS, CE EN61010-1 CATIII 600V |
| Battery | 2x1.5V AAA |
| Weight | 0.33 lbs (not including battery) |
| Dimension | 125mmx60mmx26mm 4.9x2.4x1" |
