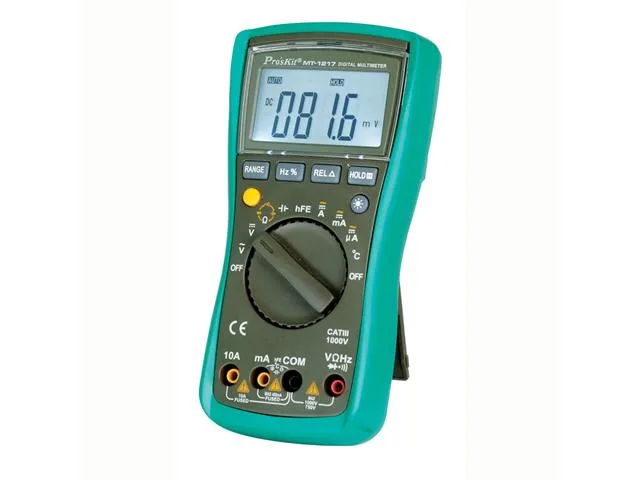

Pro'sKit MT-1217 Auto-Ranging Digital Multimeter, 3 3/4 Digits
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
The Pro'sKit MT-1217 is a 3 3/4-digit auto-ranging digital multimeter designed for precise circuit diagnostics and testing. Featuring a 3999-count backlit display, overload protection, and resettable fuse circuitry, it provides reliable measurements across a wide range of electrical parameters. It is an ideal diagnostic tool for electronics students, makers, educators, and hobbyists.
Clear display and auto ranging
Equipped with a large, easy-to-read display panel with backlighting and 3999-count resolution, this meter supports auto-ranging for quick and accurate readings. It also offers helpful convenience functions including data hold, relative reference mode, low battery indication, and auto power off.
Comprehensive measurement capabilities
Measure AC and DC voltage, AC and DC current, resistance, capacitance, frequency, duty cycle, and temperature. The instrument also features dedicated testing modes for diodes, continuity with an audible beeper, and transistor hFE via a built-in socket.
Safety and protection
Designed to comply with CE safety standards, the meter incorporates comprehensive overload protection. It is protected by a 0.4A/250V resettable fuse and a 10A/250V standard fuse.
Specifications
| Device | Multimeter |
| Type | Auto Range | Digital | 3 3/4 |
| Display Count | 3 3/4 digits (3999 counts) |
| DC Voltage | 400mV/4V/40V/400V ±(0.5%+4d), 1000V ±(1.0%+6d) |
| AC Voltage | 4V/40V/400V ±(0.8%+6d), 750V ±(1.0%+10d) |
| DC Current | 400µA/4000µA ±(1.0%+10d), 40mA/400mA ±(1.0%+10d), 4A/10A±(1.2%+10d) |
| AC Current | 400µA/4000µA ±(1.5%+10d), 40mA/400mA ±(1.5%+10d), 4A±(2.0%+15d) ; 10 A±(2.5%+15d) |
| Resistance | 400O ±(0.8%+5d), 4k/40k/400KO/4MO± (0.8%+4d), 40MO ±(1.2%+10d) |
| Frequency | 400/4K/20KHz ±(0.5%+10d) |
| Capacitance | 40nF ±(0.5%+30d), 400nF/4µF/20µF ±(3.5%+8d) |
| Temperature | (-20º~1000º) < 400º±(1.0%+5d) (-20º~1000º) >= 400º±(1.5%+15d) |
| Duty Cycle | 0.1%~99.9% |
| Continuity with Beeper | Yes |
| Diode Test | Yes |
| Transistor hFE Test | Yes (with socket) |
| Fuse | 0.4A/250V Resettable fuse, 10A/250V Fuse |
| Power Source | 9Vx1 (not included) |
| Dimensions | 182×90×46mm |
