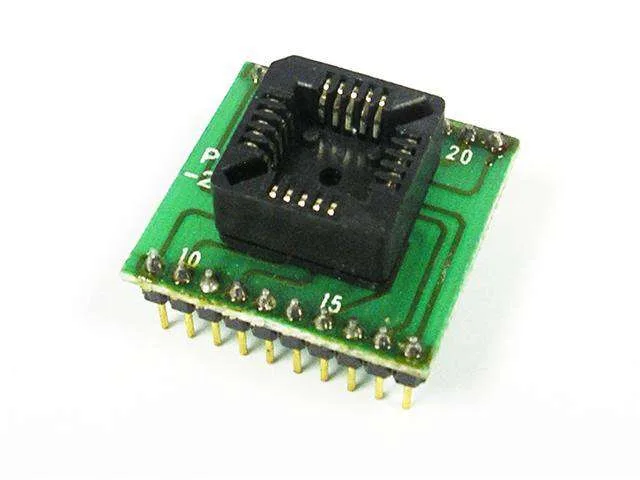

PLCC-20 Test Board Prototyping Socket Adapter, 20-Pin
We haven’t published a price for this one yet — ask and we’ll quote you, usually same day.
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
The PLCC-20 test board provides a fast and reliable solution for prototyping circuits with 20-pin surface-mount chip carriers without soldering. Featuring an integrated socket mounted to a high-quality PC board, it eliminates time-consuming assembly and the cost of permanent connections. It is an ideal testing tool for electronics students, makers, and prototyping enthusiasts.
Solderless prototyping
This test board offers a fast, safe, and solderless method for evaluating surface-mount chip carriers. It removes the need for permanent soldered joints, making iterative circuit design simpler and more cost-effective.
Durable construction
Built with a dedicated chip carrier socket and specially designed pins on a robust PC board. This design ensures dependable electrical contact across all 20 pins during testing.
Quick circuit testing
Designed to speed up diagnostic and prototyping workflows in labs and classrooms. Components can be easily inserted and swapped without damaging delicate IC leads.
Specifications
| Pin count | 20 |
| Dimension A | 25.4 mm (1.0") |
| Dimension B | 22.86 mm (0.9") |
| Dimension C | 31.88 mm (1.3") |
| Dimension D | 27.06 mm (1.1") |
| Weight | 5.6 g |
