PCF8591 module AD / DA conversion modules analog-to-digital / digital-to-analog conversion

This PCF8591 analogue-to-digital and digital-to-analogue conversion module is a versatile tool for students, educators, and hobbyists looking to expand their microcontroller's capabilities. It provides four 8-bit analogue inputs and one 8-bit analogue output over a simple I2C interface, making it ideal for sensor data acquisition. The compact board is easy to integrate into any electronics project or practical classroom lesson.

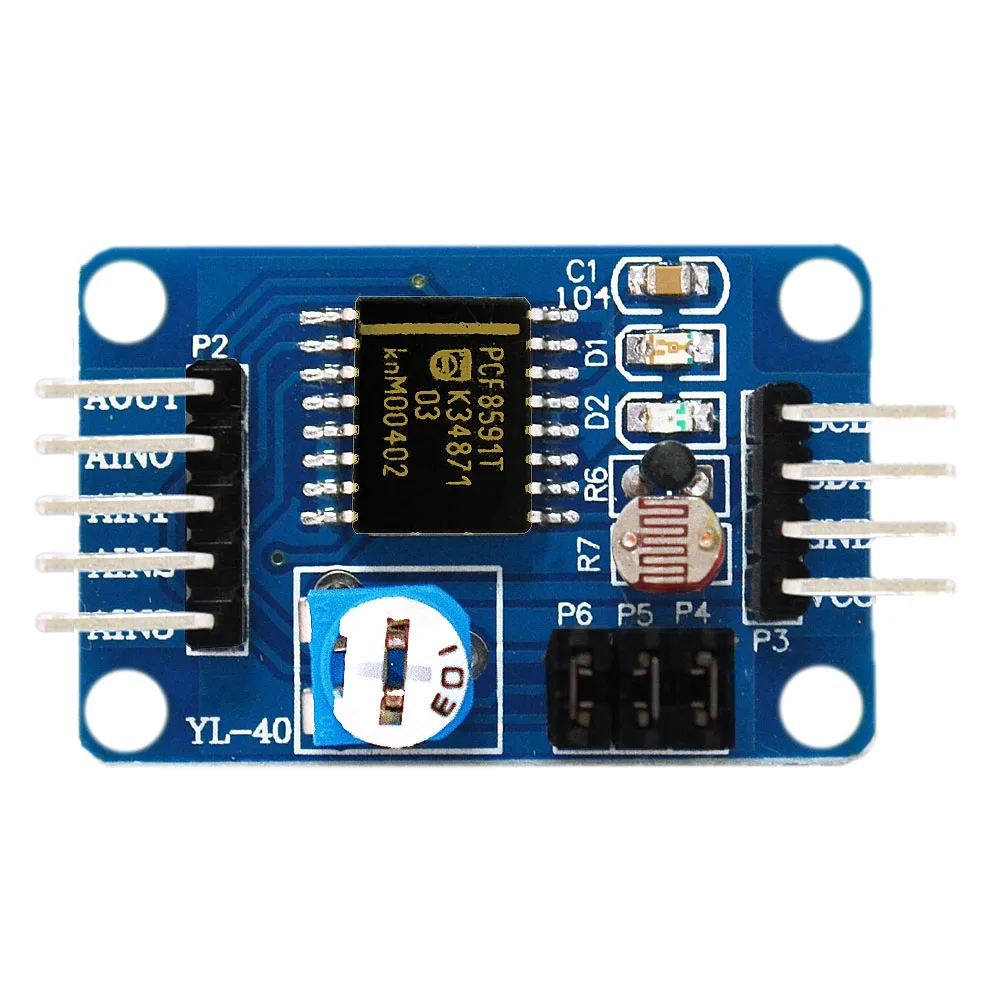

Versatile data acquisition chip

The onboard PCF8591 is a low-power, single-supply 8-bit CMOS device featuring four analogue inputs and one analogue output. It communicates via a serial I2C bus, allowing you to easily read analogue sensors and generate analogue signals.

Integrated onboard sensors

For quick prototyping, the board includes an integrated thermistor for temperature measurement and a photoresistor for light level detection. These can be individually enabled or disabled using the included red shorting jumpers.

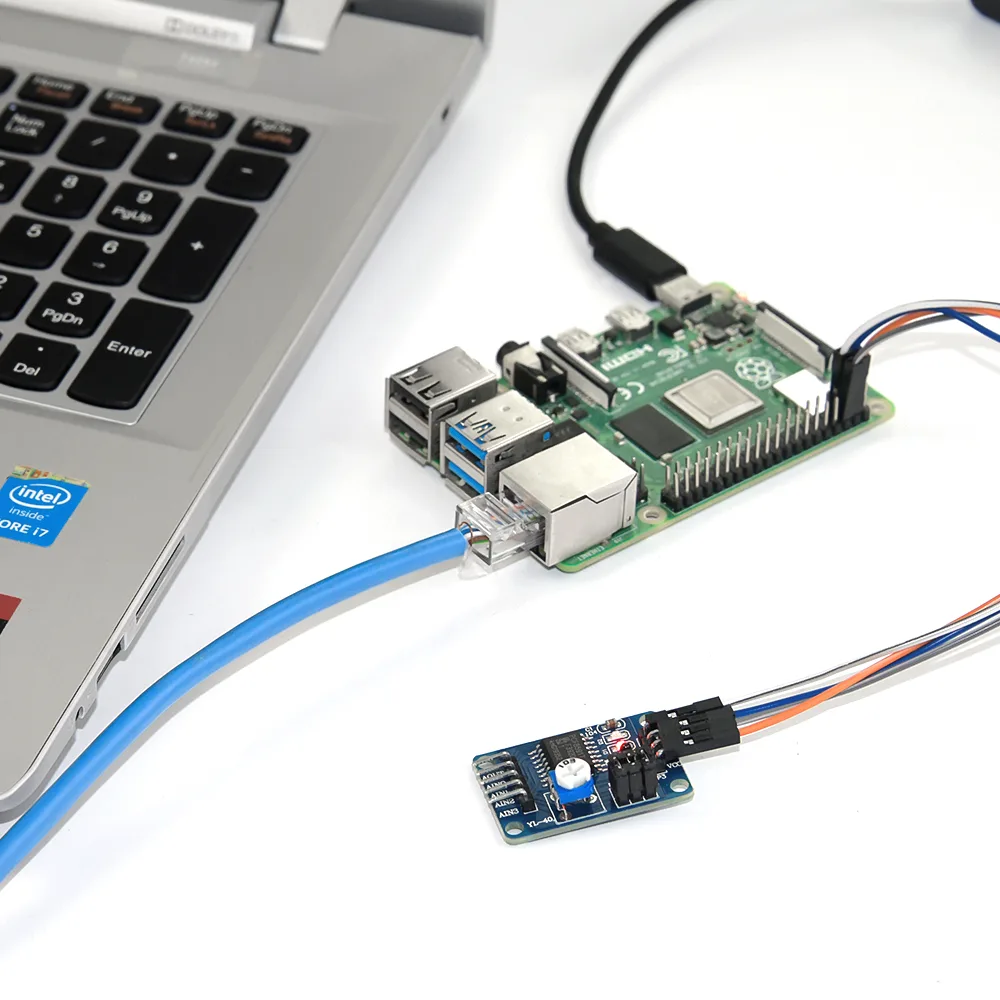

Adjustable voltage input

A built-in blue potentiometer provides an adjustable 0-5V voltage source directly on the board. This allows you to test analogue-to-digital conversion code instantly without connecting external voltage sources.

Expandable hardware addressing

With three hardware address pins, you can configure unique addresses for up to eight PCF8591 devices on a single I2C bus. This enables extensive multi-channel setups without requiring extra microcontroller pins.

Visual status indicators

The module features an onboard power indicator LED and a dedicated DA output indicator LED. The brightness of the DA indicator varies dynamically with the output voltage level, giving you immediate visual feedback.

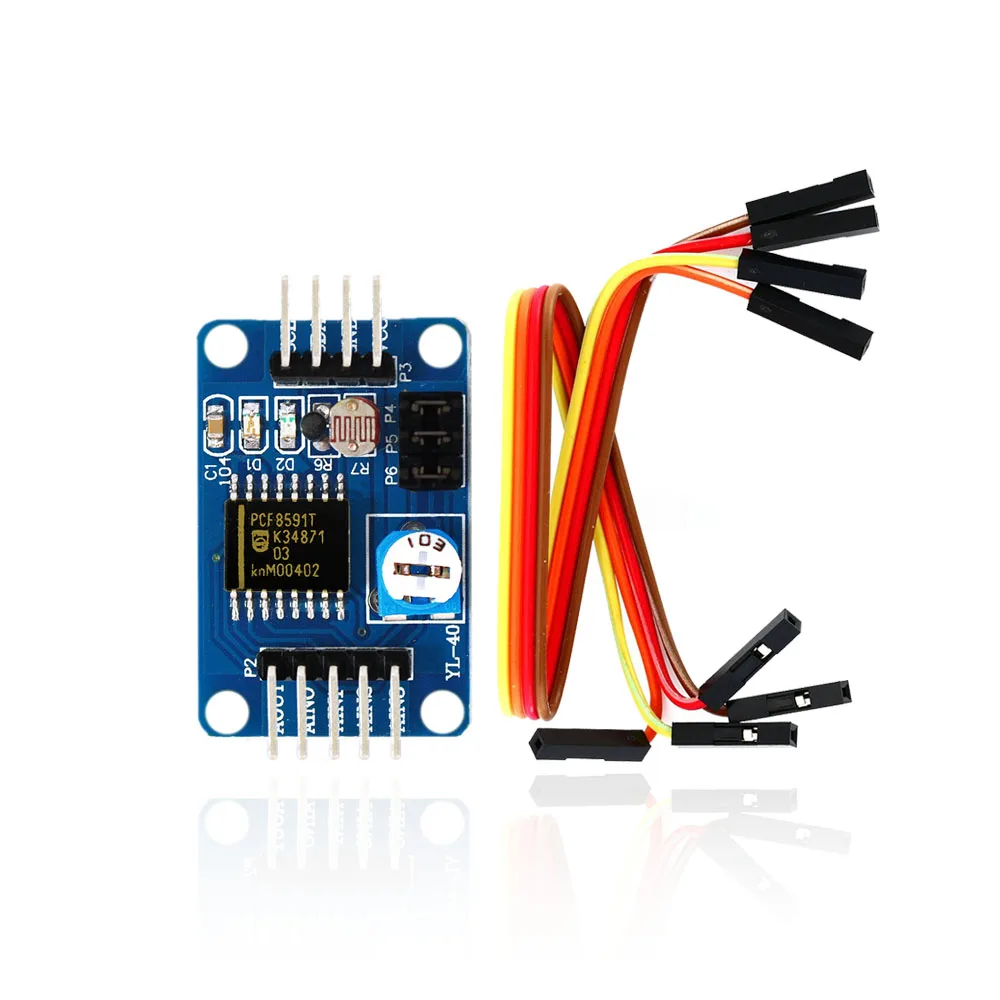

Complete connection package

Measuring just 38.5mm by 23.5mm, this compact dual-panel PCB includes a standard 3mm mounting hole for easy installation. The package comes complete with the PCF8591 module and a 4-pin female-to-female DuPont cable for immediate hookup.
