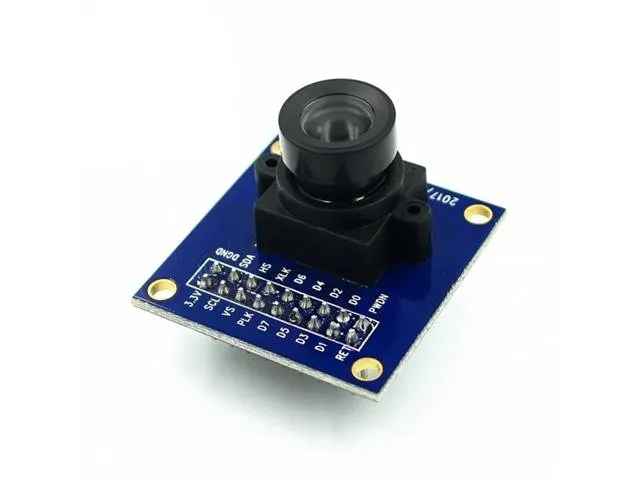

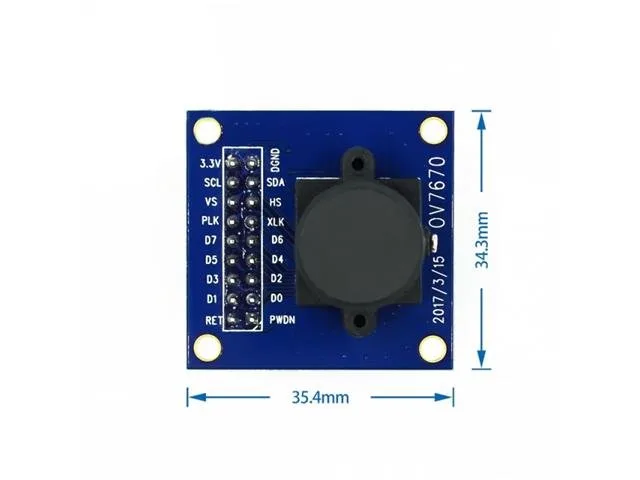

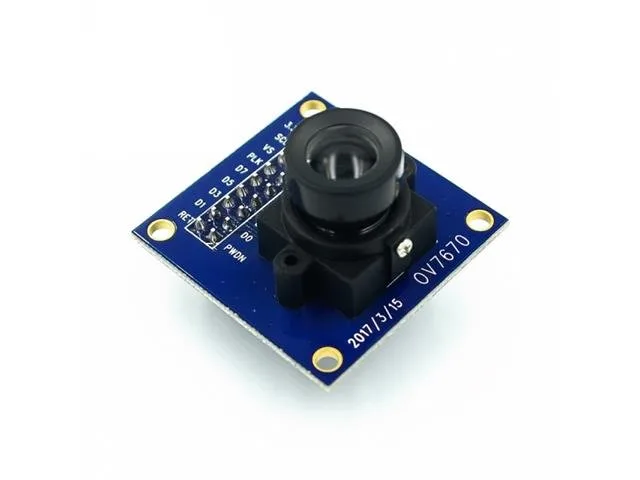

OV7670 VGA CMOS Camera Module with I2C SCCB Interface
We haven’t published a price for this one yet — ask and we’ll quote you, usually same day.
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
The OV7670 VGA CMOS camera module provides single-chip image capture and processing with a 640x480 active array at up to 30 frames per second. It communicates via an SCCB control bus compatible with I2C, allowing complete control over image quality, formatting, and data transmission. This compact, low-power module is well suited for students, hobbyists, and makers developing embedded machine vision and microcontroller projects.
Image capture and processing
The module outputs full-frame, sub-sampled, or windowed images across resolutions from VGA and CIF down to 40x30. Built-in image signal processing handles automatic exposure, white balance, gain control, noise reduction, and lens compensation to deliver clean and stable colour images.
Interface and control
Configuration and registers are accessed via a standard SCCB interface that is compatible with I2C. Through this interface, users can program parameters including gamma curves, colour saturation, hue, sharpness, and anti-bloom controls.
What is included
The package includes 1 x OV7670 image sensor module.
Specifications
| Device | Camera Module |
| Type | OV7670 | VGA |
| Photosensitive array | 640 x 480 |
| IO Voltage | 2.5V to 3.0V (internal LDO 1.8V) |
| Operating power | 60mW / 15fps VGA YUV |
| Sleep current | <20uA |
| Operating temperature | -30 to 70 °C |
| Stable temperature | 0 to 50 °C |
| Output formats | YUV/YCbCr 4:2:2, RGB565/555/444, GRB4:2:2, Raw RGB Data |
| Optical size | 1/6 inch |
| FOV | 25 degree |
| Maximum frame rate | 30fps VGA |
| Sensitivity | 1.3V (Lux-sec) |
| SNR | 46 dB |
| Dynamic range | 52 dB |
| Pixel size | 3.6um x 3.6um |
| Dark current | 12 mV/s at 60 °C |
