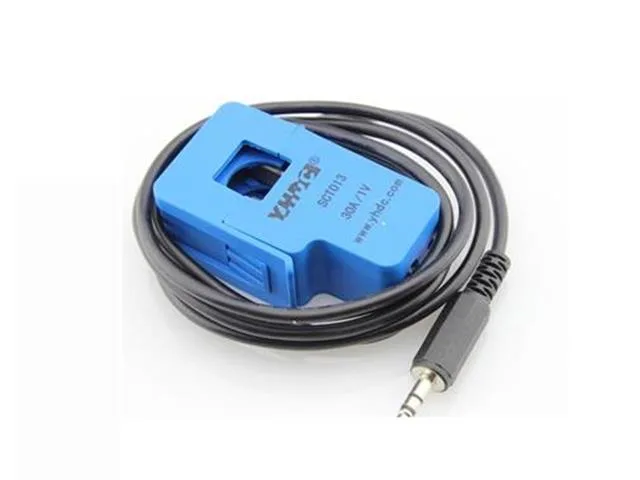

Non-Invasive AC Current Sensor Clamp, 0-30A to 0-1V
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
This non-invasive AC current sensor clamp allows you to safely measure alternating current up to 30A without cutting into live wires. It converts the detected current into a proportional 0 to 1V AC voltage using a built-in sampling resistor, making it simple to read with microcontrollers such as Arduino. It is ideal for students, makers, and hobbyists building home energy monitoring projects.
Safe and non-invasive measurement
The split-core transformer design clamps directly around an insulated AC cable, removing the need to splice or break high-voltage circuits. It provides safe electrical isolation with a dielectric strength rated at 1000V AC per minute.
Built-in sampling resistor
Equipped with an integrated 62 ohm sampling resistor, this sensor outputs a 0 to 1V signal directly from the secondary coil. This allows microcontrollers with analogue-to-digital converters to measure current levels with up to plus-or-minus 1 percent linearity.
Typical applications
This current sensor is well-suited for DIY energy monitoring setups, building power usage tracking, and educational electronics projects.
Specifications
| Device | Sensor Clamp |
| Type | Non Invasive | AC | Current |
| Input Current | 0~30A AC |
| Output Mode | 0~1V |
| Non-linearity | ±1% |
| Turn Ratio | 1800 to 1 |
| Building sample Resistance | 62 ohm |
| Resistance Grade | Grade B |
| Work Temperature | -25°C ~ +70°C |
| Dielectric Strength | 1000V AC/1min 5mA (between shell and output) |
| Lead Length | 1m |
| Size | 13x13mm |
