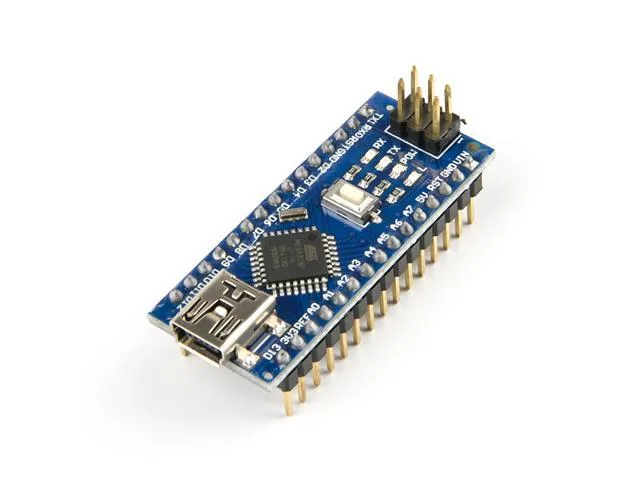

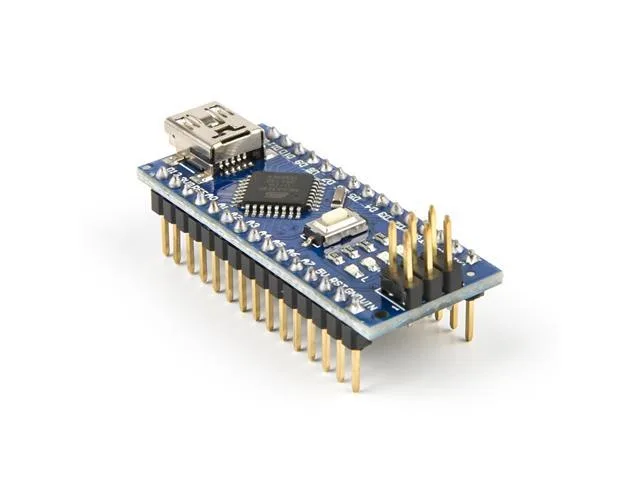

Nano V3.0 ATmega328P Microcontroller Board with CH340 USB
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
The Nano V3.0 is a compact, breadboard-friendly microcontroller board based on the ATmega328 processor. It provides similar functionality to an Arduino Uno within a much smaller footprint, using a CH340 chip for cost-effective USB-to-serial communication. It is an ideal platform for students, makers, and hobbyists building embedded electronics projects.
Compact breadboard design
The board delivers standard development board features in a miniature 44 x 18mm form factor. Its pin layout is designed to plug directly into solderless breadboards for neat and rapid prototyping.
USB interface and power

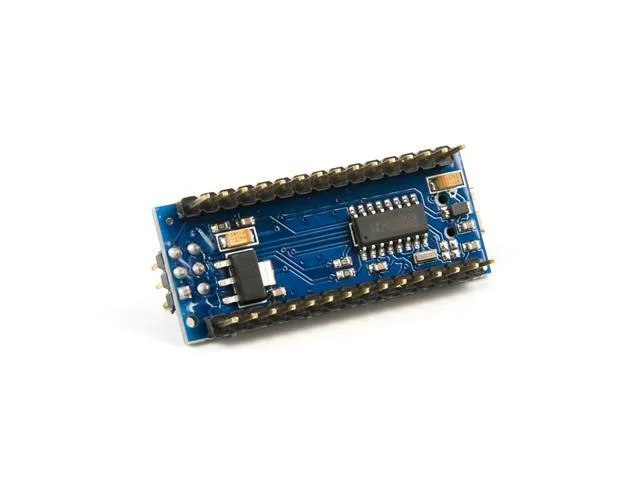

Equipped with a CH340 USB-to-serial converter, the board connects and communicates via a Mini-B USB interface. It operates at 5V logic and accepts an input voltage between 5V and 12V.
Included accessories

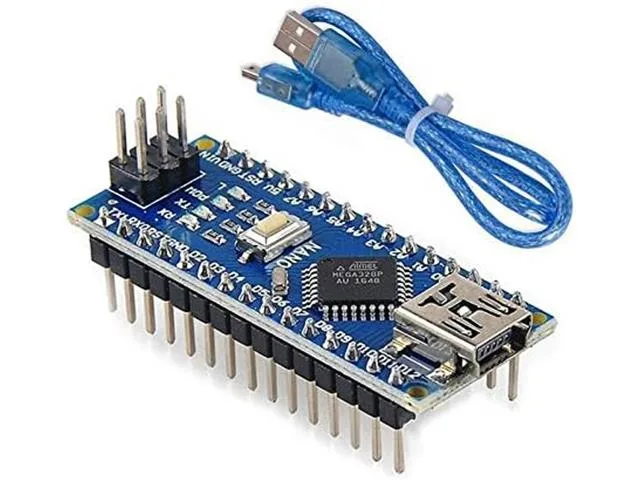

A Mini-B USB cable is supplied with the board to get you connected immediately.
Specifications
| Device | Chip Board |
| Type | Nano | V3.0 | CH340 |
| Microcontroller | ATmega328 |
| USB Chipset | CH340 |
| USB Connector | Mini -B USB |
| Logic Level | 5V |
| Input Voltage | 5 ~ 12V |
| Digital I/O Pins | 14 (of which 6 provide PWM output) |
| Analog Input Pins | 8 |
| DC Current per I/O Pin | 40mA |
| Flash Memory | 32KB (ATmega328) of which 2 KB used by bootloader |
| SRAM | 2KB (ATmega328) |
| EEPROM | 1KB (ATmega328) |
| Clock Speed | 16MHz |
| Dimensions | 44 x 18mm |
| Net Weight | 30g |
