Nano I/O Expansion Board for Arduino Nano V2.X and V3.X
We haven’t published a price for this one yet — ask and we’ll quote you, usually same day.
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description

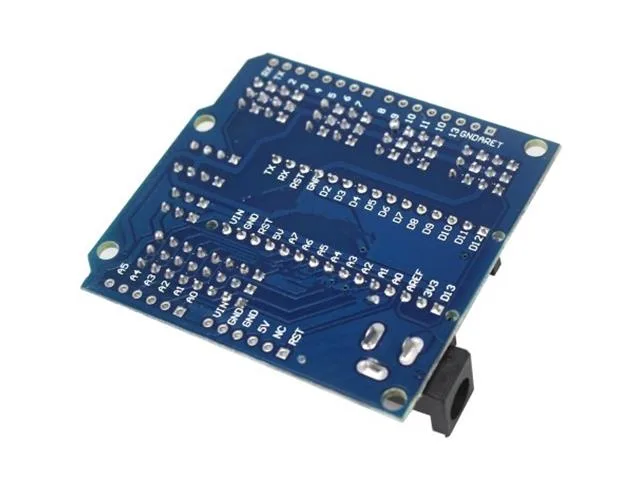

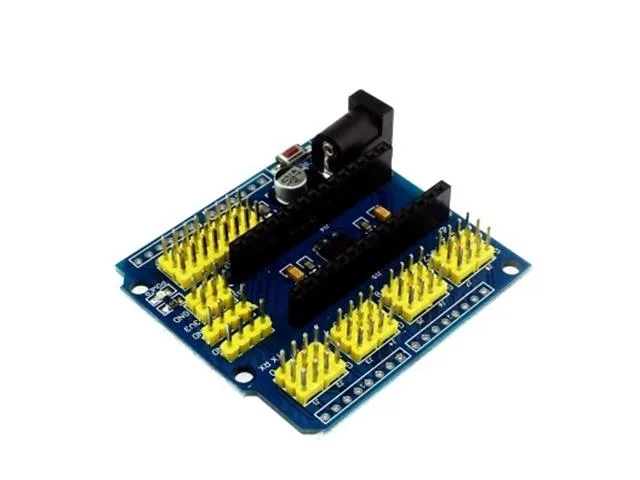

This I/O expansion board is designed for Arduino Nano microcontrollers, breaking out pins into convenient 3-pin headers for rapid prototyping. It provides dedicated servo-style connections, analogue power breakouts, and I2C ports to simplify project wiring. It is an ideal companion for students, hobbyists, and makers building sensor-rich robotics and automation projects.
Versatile pin breakouts
The board breaks out 14 digital I/O pins into 3-pin servo-style headers with dedicated ground, power, and signal lines. It also includes 8 analogue pins with integrated power and ground rails, as well as 6 PWM-capable pins.
Expansion and power options
Featuring 5 I2C expansion headers, this board simplifies connecting multiple I2C sensors and displays. It also provides dedicated AREF and 3.3V outputs alongside a dedicated servo power input.
Form factor and compatibility
Designed for a snug fit with Arduino Nano V2.X and V3.X development boards, it measures 57x54mm for easy integration into compact project enclosures.
Specifications
| Device | Expansion Board |
| Type | Arduino | Nano | I/O |
| Compatibility | Compatible with Arduino NANO V2.X and V3.X |
| Digital I/O Pins | 14 (servo type with GND, power and signal) |
| Analog Pins | 8 (with Power Output and GND) |
| PWM Pins | 6 |
| I2C Expansion | 5 I2C Expansion Pins |
| Servo Power Input | 1 |
| Input Voltage | 5.5V |
| Additional Outputs | AREF Output, 3.3V Output |
| PCB Board Size | 57x54mm |
