Nano ATmega328P Development Board with CH340 and USB Type-C
We haven’t published a price for this one yet — ask and we’ll quote you, usually same day.
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
This compact development board features the ATmega328P microcontroller and a modern USB Type-C interface with the CH340 serial chip. Fully compatible with the Arduino Nano ecosystem, it offers 14 digital I/O pins and 8 analog inputs operating on 5V logic. It is ideal for students, hobbyists, and makers working on embedded systems, robotics, and IoT projects.
Modern USB Type-C connectivity
The board features a modern USB Type-C connector paired with a CH340 serial chipset for power and programming. The package includes an accompanying USB-A to USB-C cable for quick connection.
Microcontroller performance
Powered by an ATmega328 running at a 16MHz clock speed, the board provides 32KB of flash memory, 2KB of SRAM, and 1KB of EEPROM for your sketches. It operates reliably within an input voltage range of 5V to 12V.
Flexible input and output options

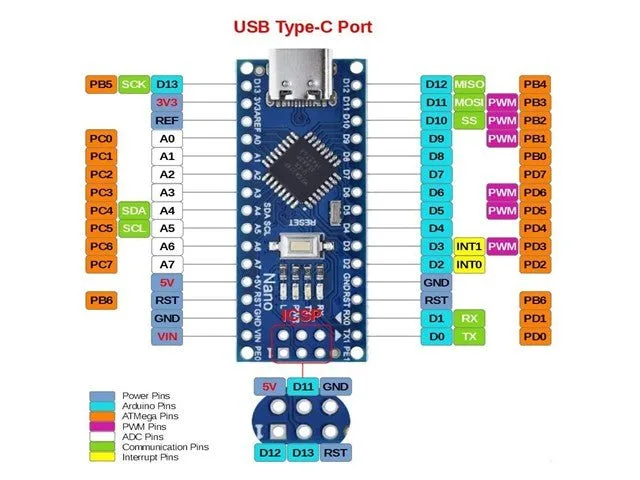

Featuring 14 digital I/O pins (6 supporting PWM output) and 8 analog input pins, the board provides ample connectivity for sensors, motors, and displays. Each I/O pin supports a DC current of up to 40mA.
What is included

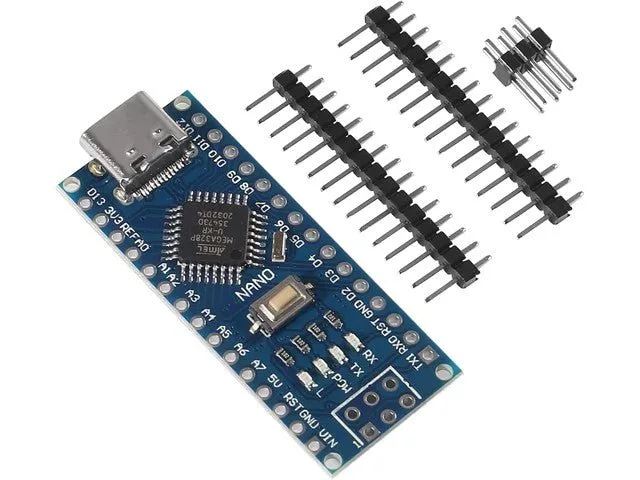

Each pack includes one Nano CH340 USB Type-C board with loose headers ready for soldering and one USB-A to USB-C cable.
Specifications
| Device | NANO Board |
| Type | ATMEGA328P | Microcontroller |
| Microcontroller | ATmega328P |
| USB Chipset | CH340 |
| USB Connector | USB Type-C |
| Logic Level | 5V |
| Input Voltage | 5 ~ 12V |
| Digital I/O Pins | 14 (6 PWM) |
| Analog Input Pins | 8 |
| DC Current per I/O Pin | 40mA |
| Flash Memory | 32KB (2 KB used by bootloader) |
| SRAM | 2KB |
| EEPROM | 1KB |
| Clock Speed | 16MHz |

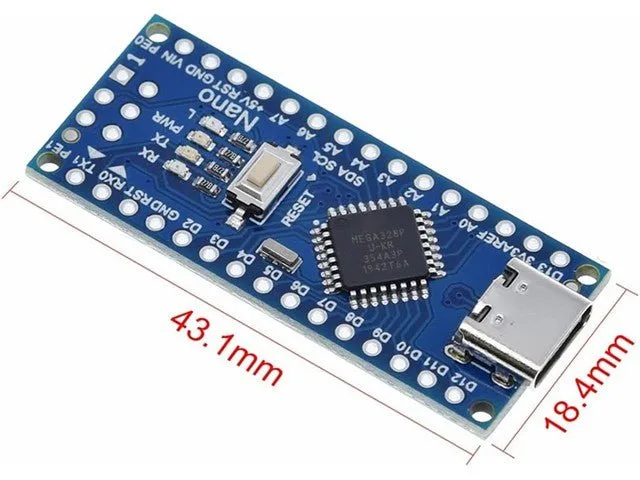

| Dimensions | 44 x 18mm |
| Net Weight | 30g |
