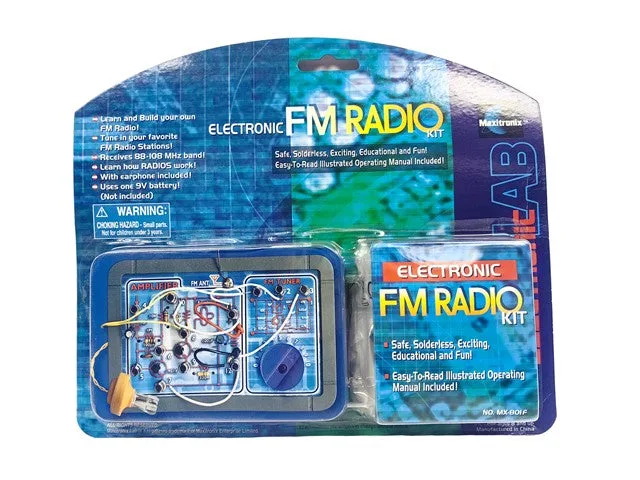

Maxitronix MX-801F Electronic FM Radio Educational Kit

The Maxitronix MX-801F is an educational electronic FM radio kit designed to tune across the standard 88 to 108 MHz broadcast band. It simplifies high-frequency radio assembly by including a pre-adjusted tuner section, making it straightforward to construct in just a couple of hours. This kit is ideal for students, hobbyists, and beginners looking to gain practical hands-on electronics experience.

Hands-on electronics learning

Designed as a beginner-friendly project, this kit teaches electronic assembly principles in a clear, step-by-step manner. In just a couple of hours of building, users can successfully produce a working FM radio capable of tuning into local broadcast stations.

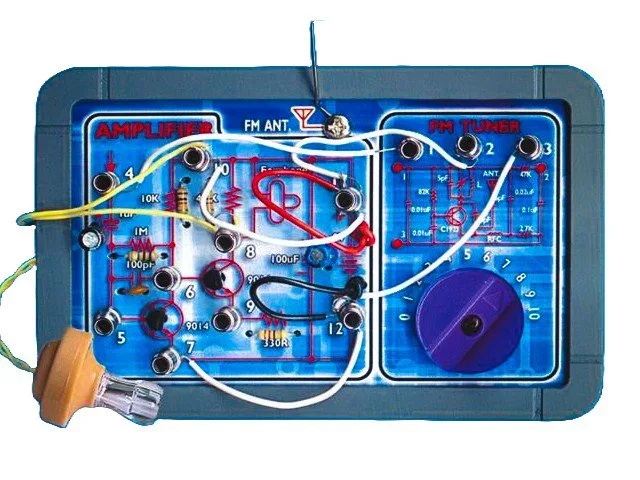

Pre-assembled tuner module

Because FM radio circuits involve complex voltage and frequency converters, limiters, and sensitive tuning procedures, the critical tuner module comes pre-assembled and calibrated. This design choice prevents delicate setup issues while keeping assembly accessible and reliable.

Required tools and power

Completing the kit requires a small Phillips screwdriver, long-nose pliers or tweezers, and small diagonal cutting pliers for wires. The finished radio runs on a standard 9V battery.
