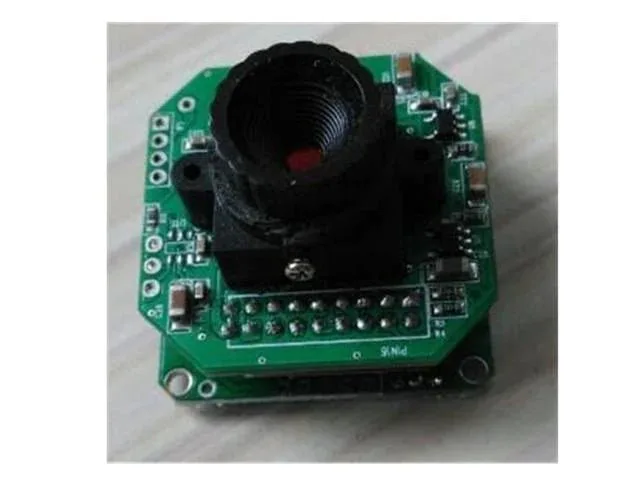

LS-Y201-2MP 2MP JPEG Colour Serial Camera Module, TTL UART

The LS-Y201-2MP is a 2-megapixel colour camera module designed to capture high-resolution pictures over a serial connection. It outputs compressed JPEG images directly via a UART TTL interface, making it straightforward to add imaging to microcontroller designs. This module is well suited to students, hobbyists, and makers building embedded vision projects.

High-resolution JPEG capture

Equipped with a 2 million pixel sensor, this module captures high-resolution colour images and outputs them directly as JPEG files. The modular design simplifies image handling by handling compression on-board.

Serial UART interface

The camera communicates via a standard TTL serial interface with a default baud rate of 115200. This allows for straightforward integration into existing microcontroller and digital design workflows.

Power and compact dimensions

The module operates from a DC 5V power supply with an operating current consumption between 80mA and 100mA. With a compact 32mm x 32mm board size, it fits easily into tight project enclosures.
