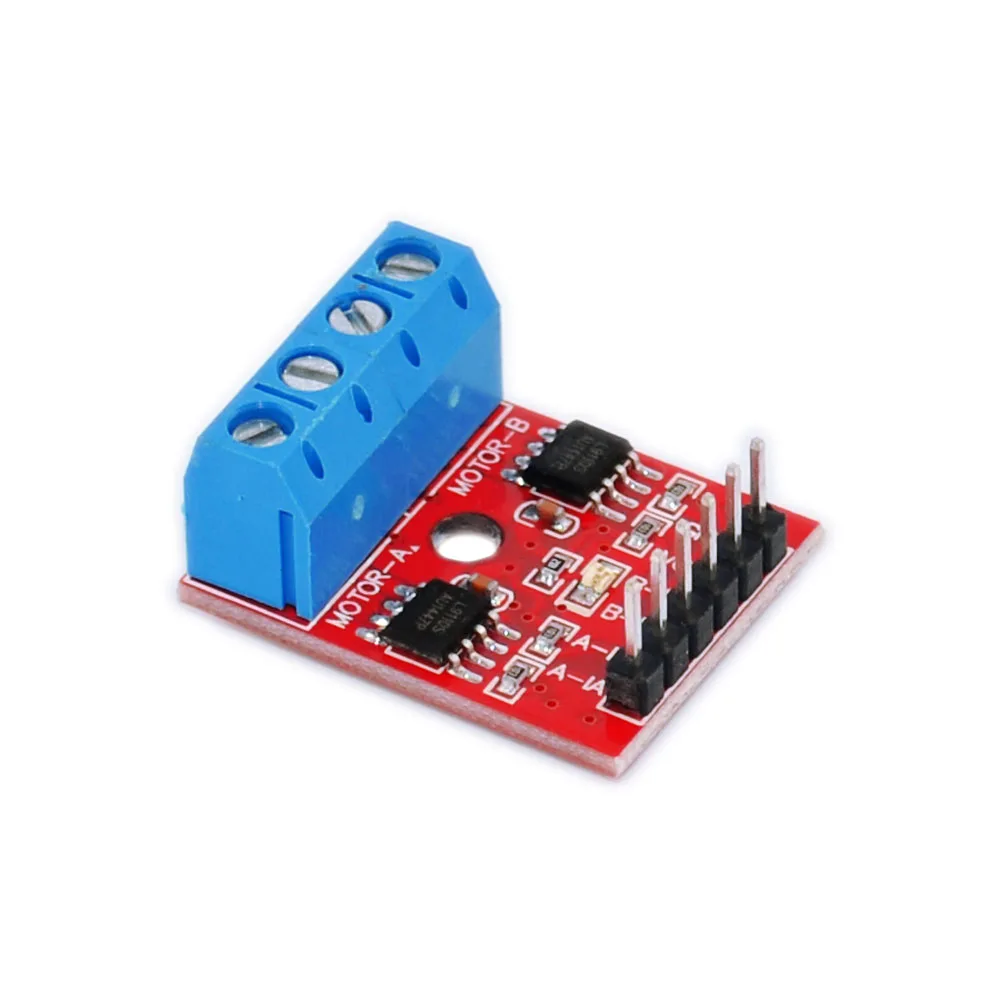

L9110S H-bridge Stepper Motor Dual DC Stepper Motor Driver Board Module L9110 For Arduino

The L9110S Dual DC and Stepper Motor Driver Board is a compact, efficient module designed to control small motors in robotics projects. It is an ideal choice for South African students, hobbyists, and makers looking to drive low-power motors directly from an Arduino or other microcontrollers.

Dual motor control capabilities

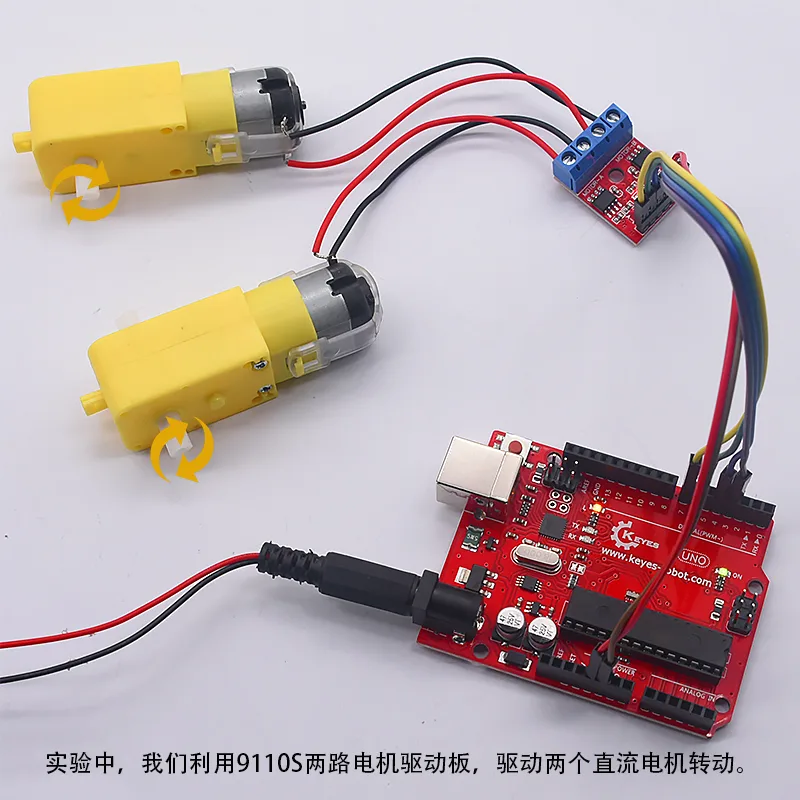

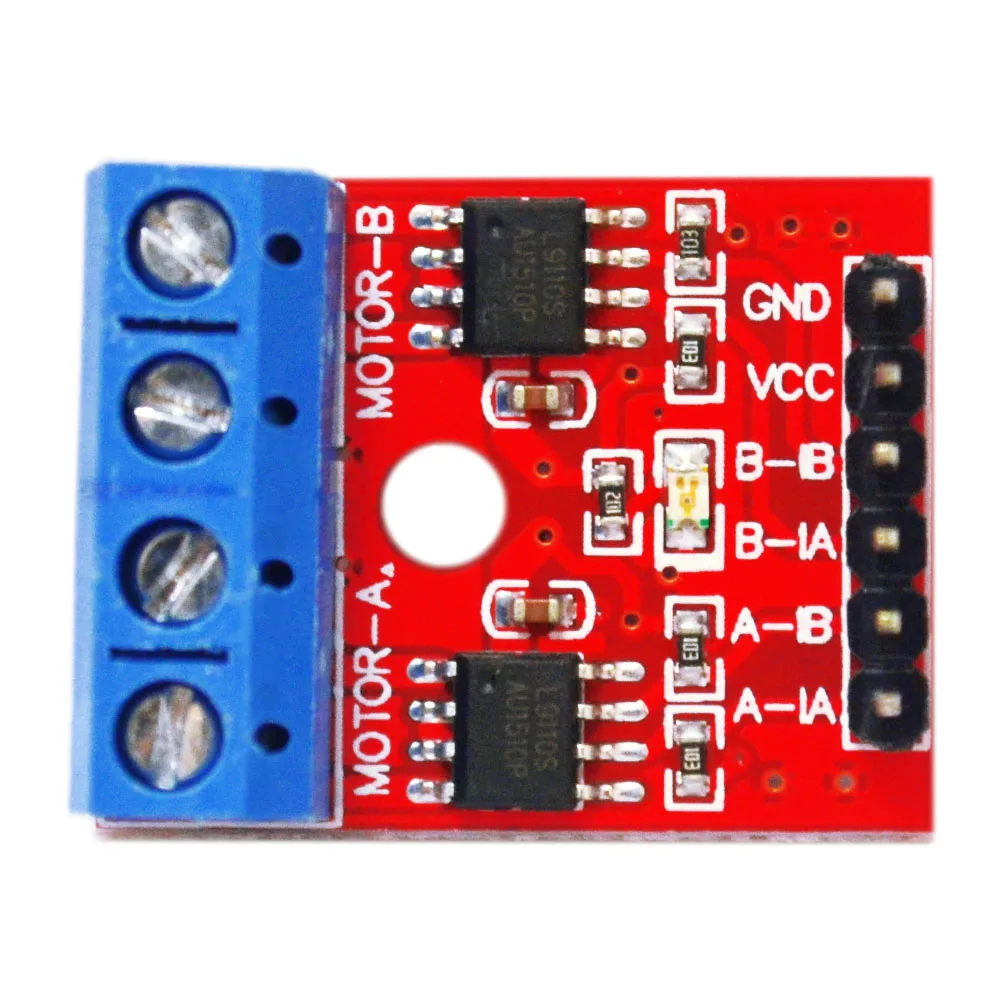

Equipped with two onboard L9110S motor control chips, this module can independently drive two DC motors or a single 4-wire, 2-phase stepper motor. This makes it highly versatile for compact wheeled robots and precision steering mechanisms.

Flexible power supply range

The driver board operates on an input voltage range of 2.5V to 12V DC, making it compatible with a wide variety of battery packs and low-voltage power sources. Each channel delivers a reliable 800mA of continuous current output to power your motors.

Direct microcontroller integration

Featuring TTL and CMOS compatible inputs, this module connects directly to your CPU or Arduino pins without needing complex logic level shifters. It also features low static working current and a low saturation pressure drop for improved efficiency.

Built-in circuit protection

To safeguard your electronics, the board includes integrated clamping diodes on the outputs to handle inductive loads safely. It also features high-voltage pin protection and is rated to operate reliably at temperatures between 0 and 80 degrees Celsius.
