L298 Dual H-Bridge DC Motor Driver Shield, 2A
We haven’t published a price for this one yet — ask and we’ll quote you, usually same day.
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description

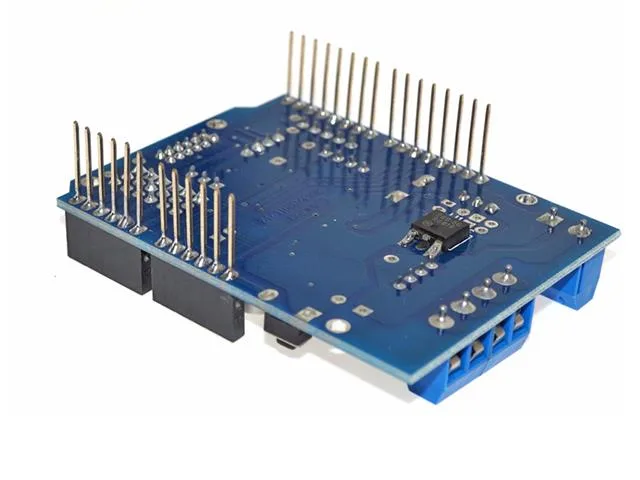

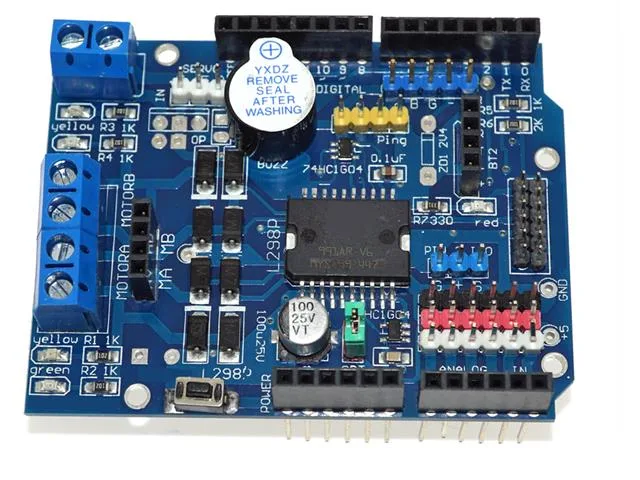

This L298 dual H-bridge motor driver shield enables bidirectional drive and speed control for two DC motors or a single stepper motor. Designed for microcontrollers such as Arduino and Raspberry Pi, it is an ideal solution for learners, makers and robotics enthusiasts. The board includes screw terminal connections and supports direct PWM speed control.
Dual motor drive capability
The module uses an L298 dual H-bridge driver to control up to two DC motors or a single two- or four-phase stepper motor. It supports PWM PLL mode for precise speed adjustment and uses pins D4 through D7 for direct motor control.
Power supply options
The board operates with a 5V logic supply and accommodates motor drive voltages from 6.5V to 12V via VIN, or 4.8V to 35V via PWRIN. When supplied with more than 7V, the onboard 5V terminal can act as an auxiliary 5V power source.
Connections and construction
Wiring is secured through standard 5.0mm pitch screw terminals for reliable power and motor lines. Measuring 68 x 53mm, the board includes front-row signal access and operates across temperatures from -25 to +130 degrees Celsius.
Specifications
| Device | Motor Driver Shield |
| Type | L298 | Dual | Bridge | DC |
| Driver Type | Dual power H-bridge driver (L298) |
| Logical Input Voltage (VD) | 5V |
| Driven Input Voltage (VS) | VIN 6.5 ~ 12V, PWRIN 4.8 ~ 35V |
| Logical Operating Current (Iss) | <36mA |
| Driven Operating Current (Io) | <2A |
| Maximum Power Dissipation | 25W (T = 75 Celsius) |
| Control Signal Input Level | High 2.3V, Low -0.3V |
| Working Temperature | -25 to +130 Celsius |
| Hardware Interface | 5.0mm pitch terminal |
| Pin Occupancy | D4 ~ D7 direct drive motor |
| Speed Control Mode | PWM PLL mode |
| Dimensions | 68 x 53mm |
