keyestudio YX5200-24SS MP3 Module

The keyestudio YX5200-24SS MP3 Module is an all-in-one audio playback solution designed to bring sound, music and voice prompts to your microcontroller projects. Ideal for South African makers, students and educators, this versatile board supports TF cards up to 32GB and integrates hardware decoding for MP3, WAV and WMA formats. Whether you are building an interactive installation or a talking robot, it offers straightforward control via UART serial communication or physical buttons.

Hardware decoding for multiple formats

Built around the YX5200-24SS core, this module features integrated hardware decoding for MP3, WAV and WMA files. This ensures stable, reliable playback without taxing your main microcontroller's processing power.

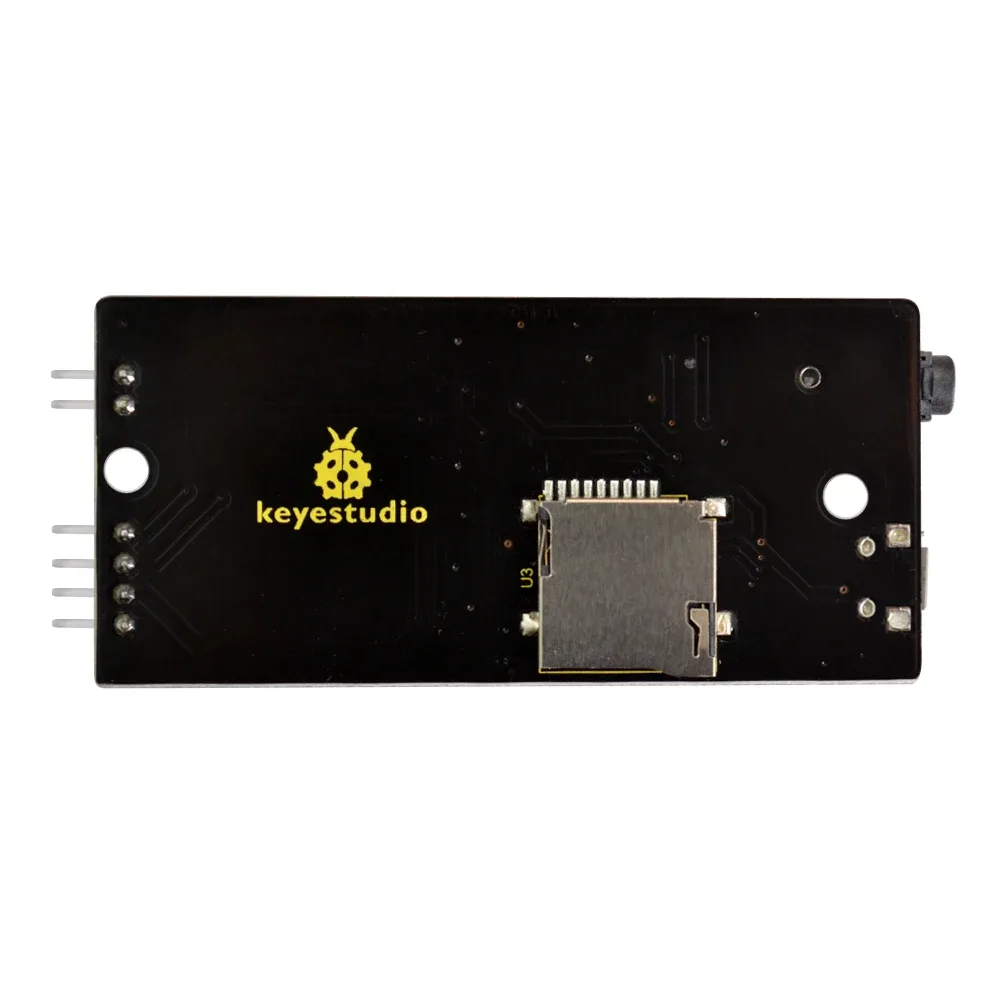

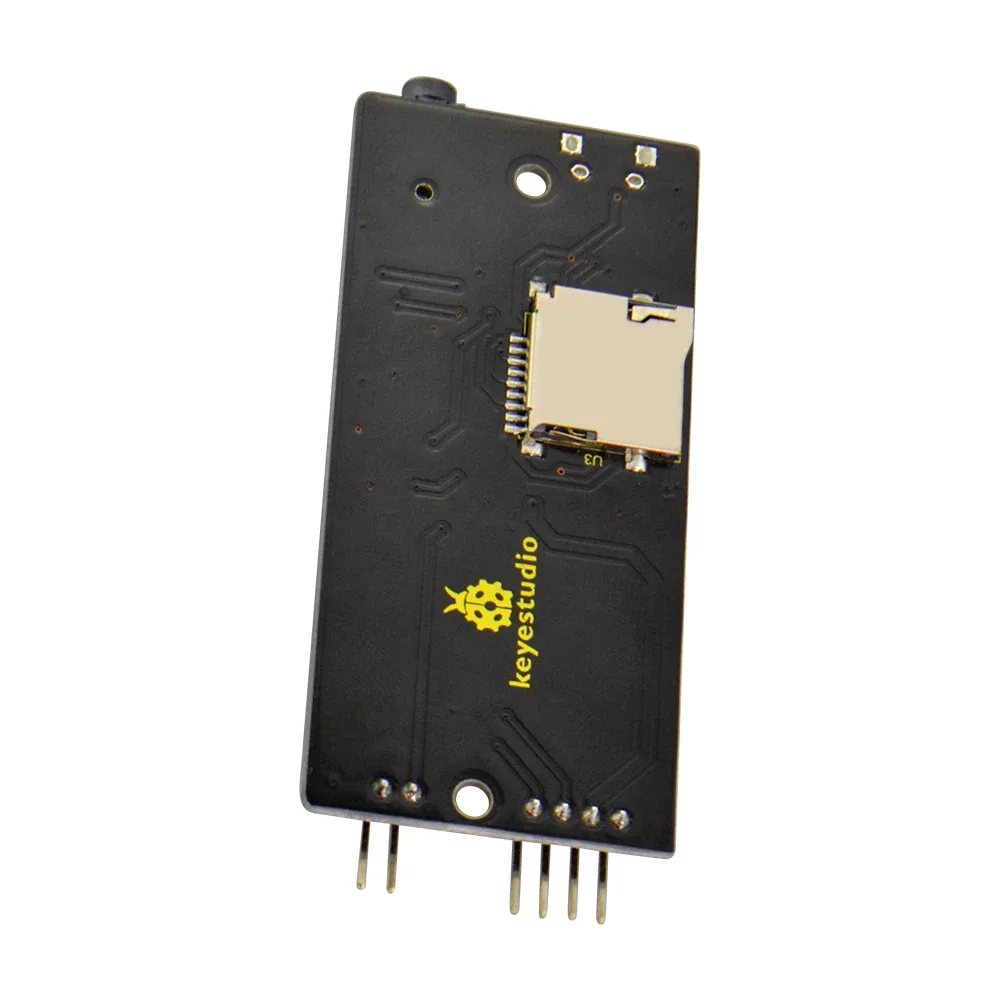

Direct TF card storage and USB access

The onboard TF card slot supports cards up to 32GB, allowing you to store extensive audio libraries directly on the module. A micro-USB interface makes it simple to connect to a computer to read the card contents and download new audio files.

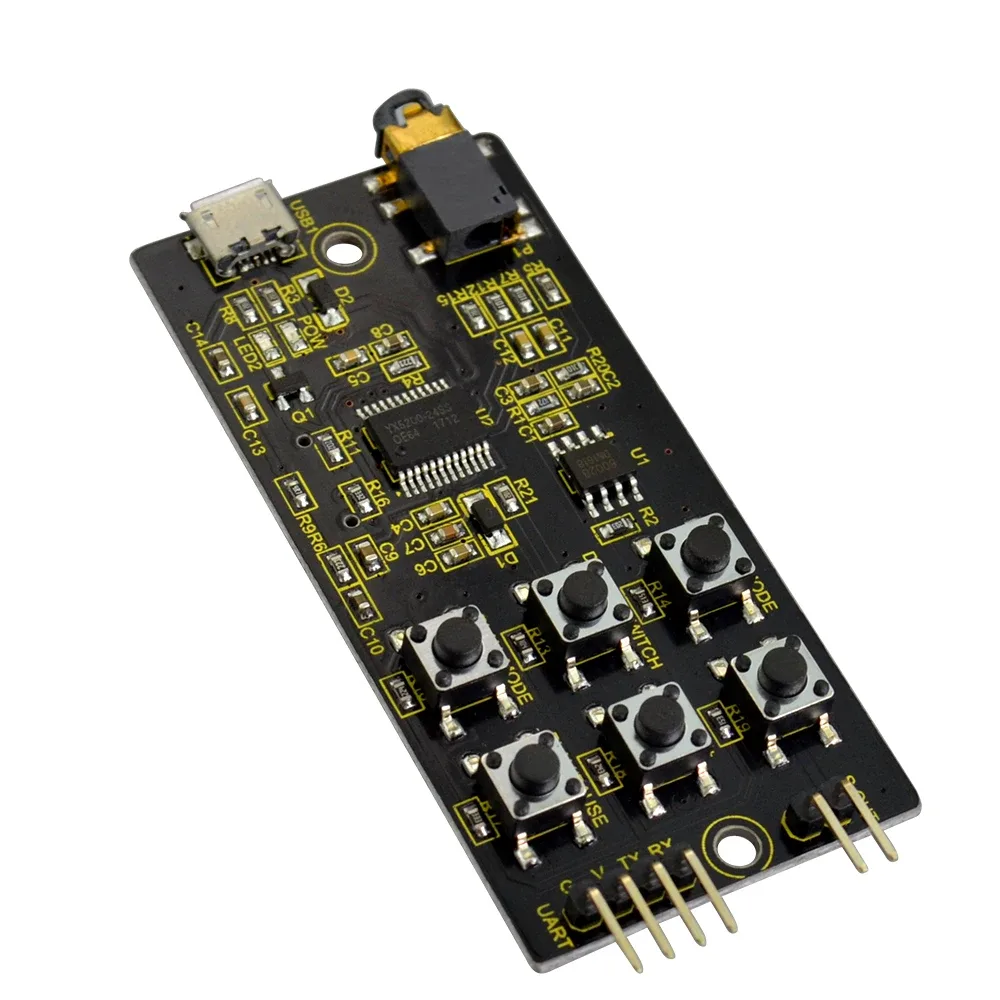

Integrated audio amplifier and speaker output

An onboard audio amplifier chip provides 8x magnification, delivering up to 1.2W of output power when using an 8-ohm external speaker connected to the S-OUT interface. Please note that the module defaults to maximum volume on power-up, so it is recommended to turn down the volume before playback.

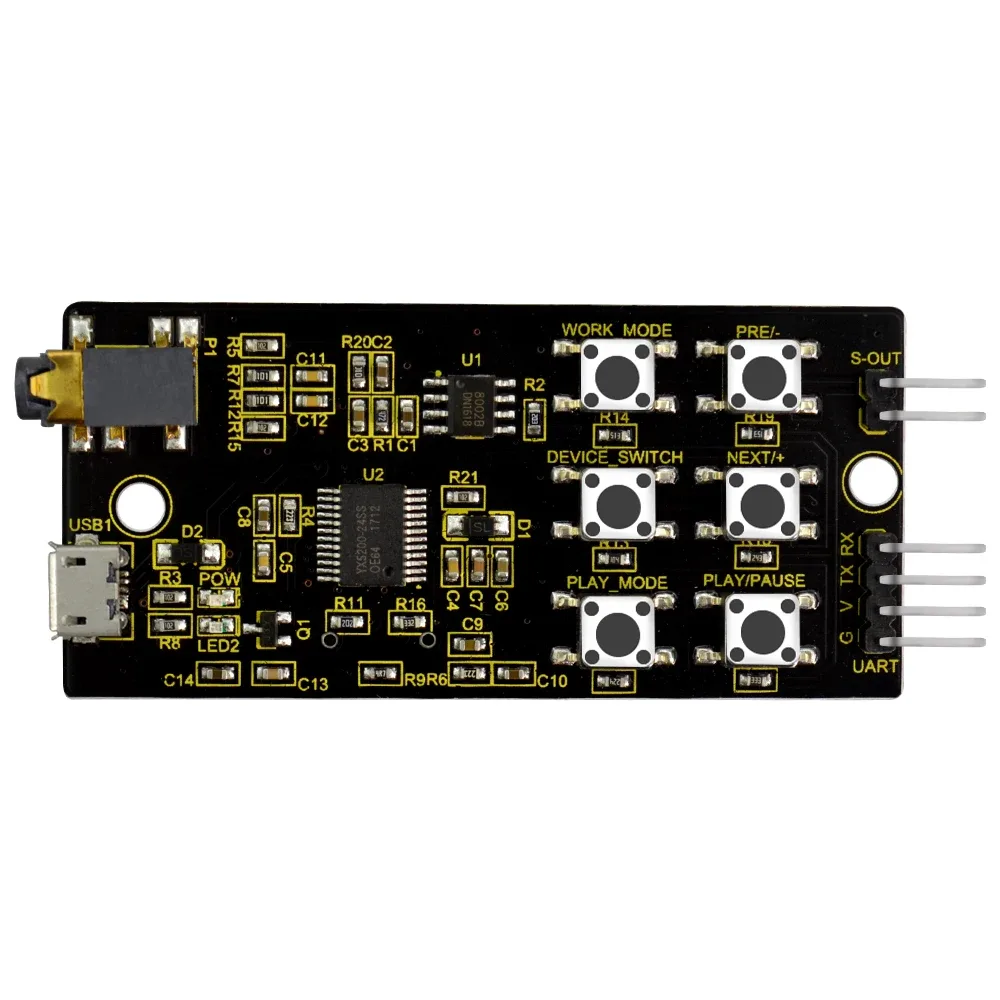

Serial control and physical buttons

You can easily control music playback using serial communication via the UART interface, or use the six onboard physical buttons for manual control and testing. A standard headphone jack is also included for quiet listening and quick debugging.

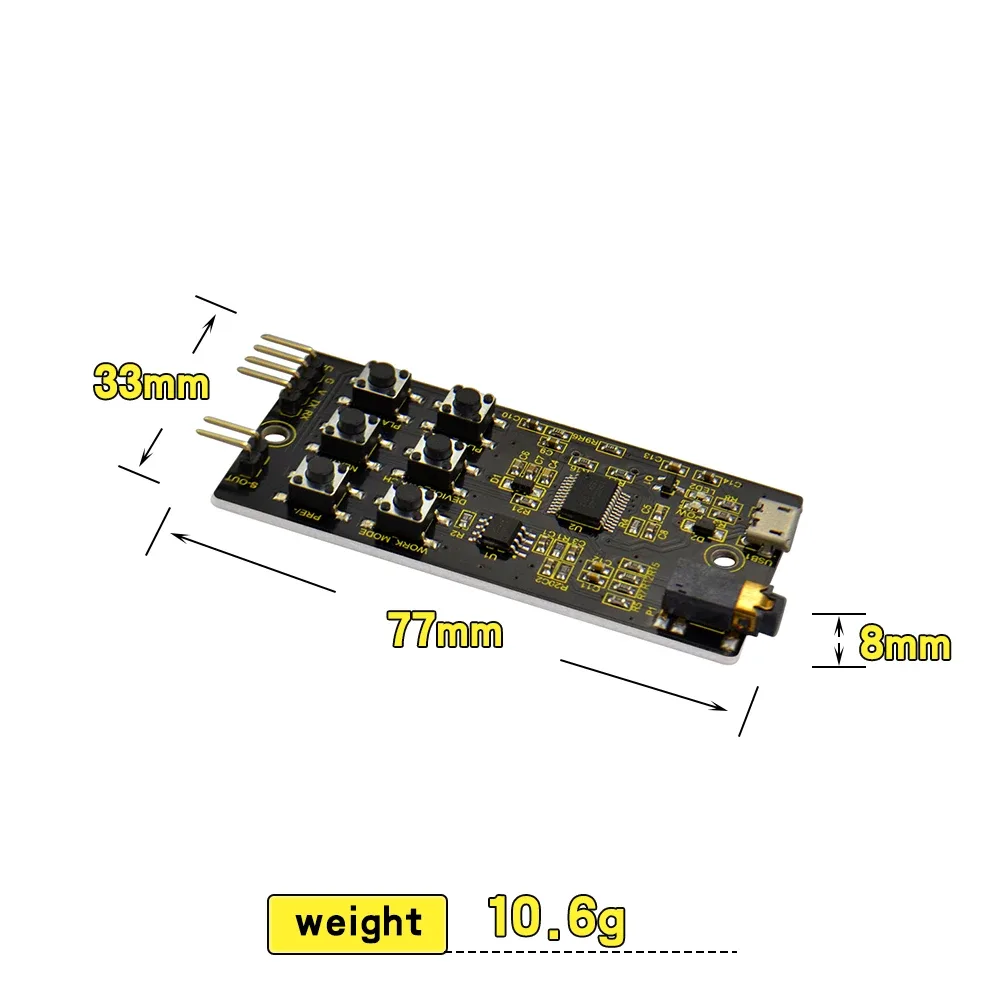

Technical specifications and dimensions

Operating at 5V DC with a maximum current of 1A, this compact board measures 77mm by 33mm by 8mm and weighs just 10.6g. It features RoHS environmental certification and operates reliably in temperatures ranging from 10 to 40 degrees Celsius.

Easy integration for makers and educators

With its versatile power options and multiple control interfaces, this module is perfect for adding sound effects to robotics, alarms, or interactive exhibits. The onboard buttons allow for immediate verification of your audio files without needing to write code first.

Simplified testing and verification

The module features six built-in buttons that allow you to control playback and verify instructions directly on the board. This makes it incredibly easy to test your audio setup before integrating it into a larger coding project.
