Keyestudio Thin-film Pressure Sensor For Arduino

This Keyestudio thin-film pressure sensor is an ultra-thin, flexible component designed to detect physical pressure and convert it into an electrical signal. It is ideal for South African students, makers, and hobbyists looking to add tactile feedback or weight sensing to their Arduino projects.

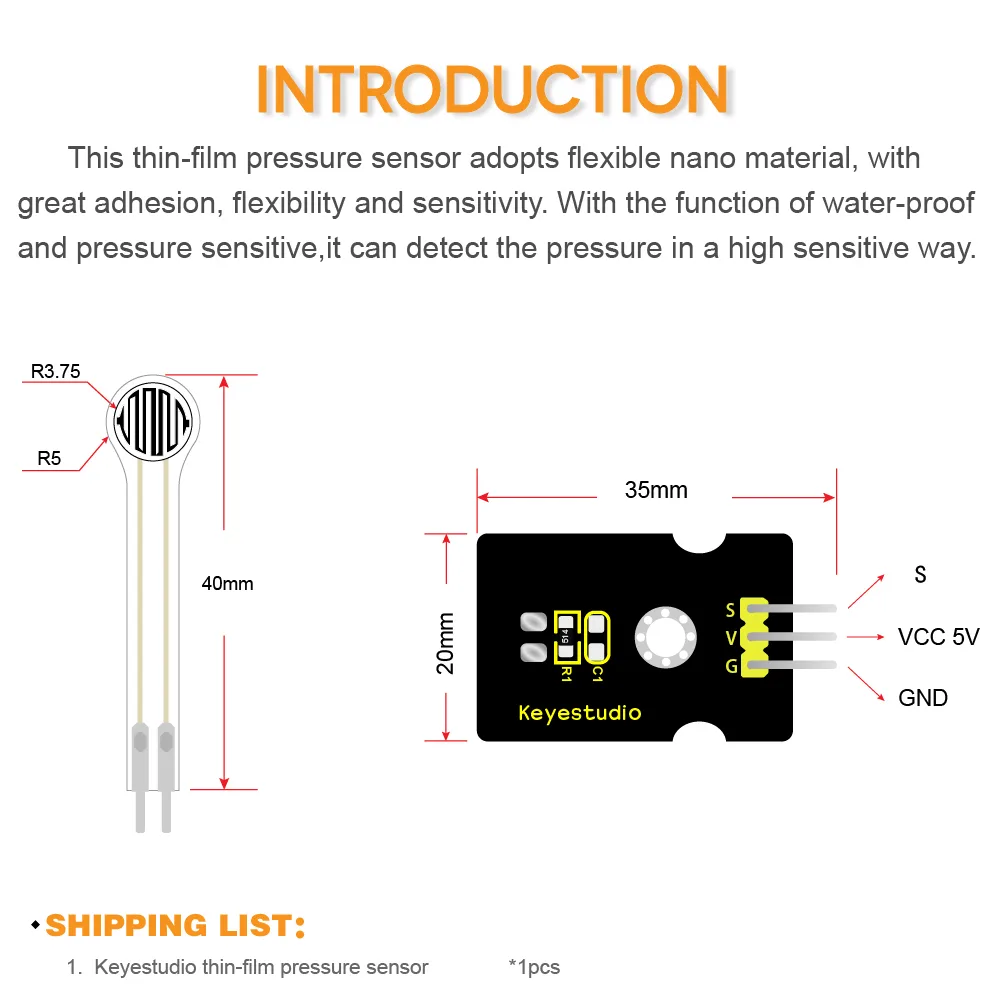

Flexible nano-material construction

Built with an ultra-thin, flexible nano pressure-sensitive film, this sensor is both waterproof and highly responsive to physical force. This thin profile allows it to be easily integrated into tight spaces or curved surfaces.

Resistance-based pressure sensing

When external pressure is applied to the active area, the sensor's internal resistance decreases. An external circuit can easily read this change and convert it into a corresponding analog voltage signal.

Ultra-thin physical profile

At less than 0.25mm thick, this sensor adds virtually no bulk to your builds. It is ideal for wearable electronics, smart interfaces, and low-profile touch pads.

Precise and rapid response

With a response time of under 1 millisecond and a recovery time under 15 milliseconds, this sensor reacts almost instantly to touch. It triggers at forces under 20g and offers a detection range of up to 0.5kg.

Wide operating voltage

Operating on a standard DC voltage range of 3.3V to 5V, this sensor is directly compatible with Arduino and other common microcontrollers. It features an initial resistance of over 100M ohms when no load is applied.

Reliable and durable performance

Designed to withstand over 100,000 uses, this sensor delivers long-term reliability for your projects. It operates stably in temperatures ranging from -20 degrees Celsius up to 60 degrees Celsius.
