Keyestudio TB6560 Stepper Motor Drive Board For Arduino Projects(Black and Eco-friendly)

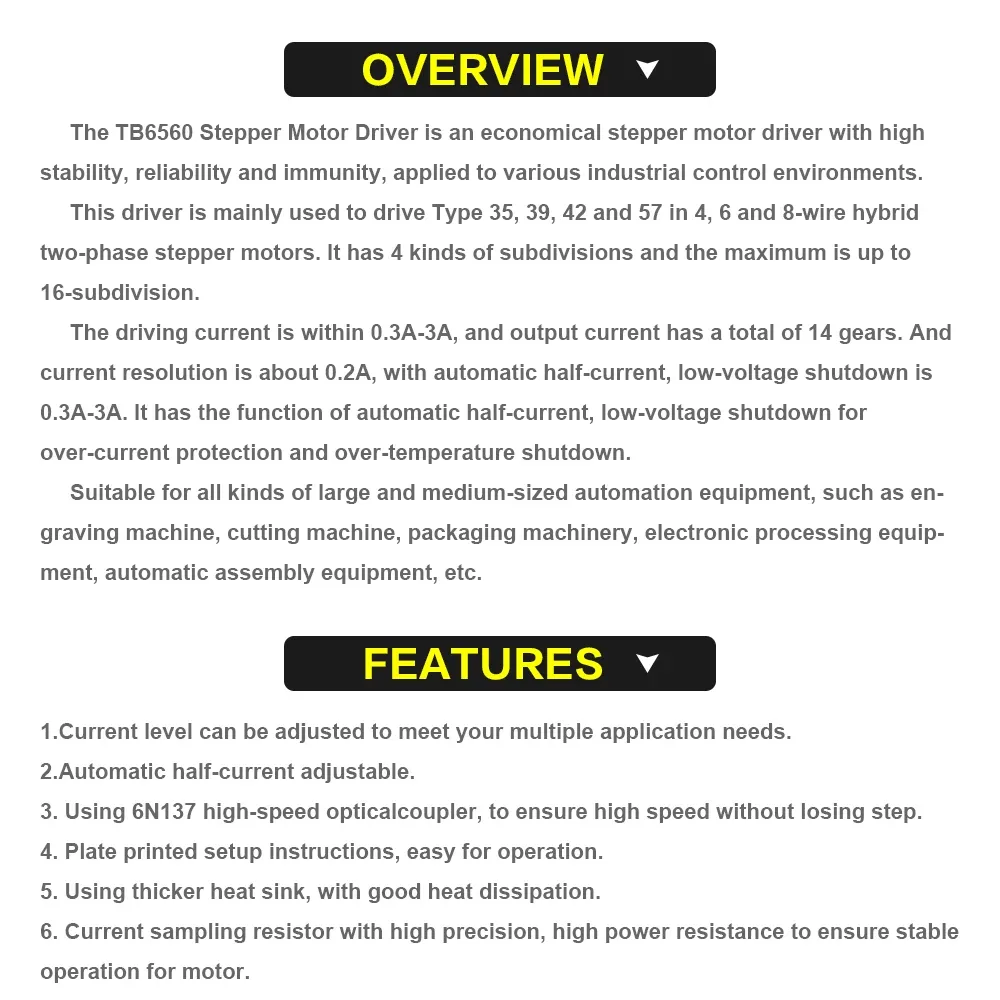

The Keyestudio TB6560 Stepper Motor Drive Board is an economical and highly stable driver designed for precise motor control in Arduino projects. It is an ideal choice for South African makers, educators, and hobbyists building CNC machines, robotics, or custom automation systems.

Industrial-grade stepper motor control

Built around the TB6560 driver chip, this board offers high stability, reliability, and noise immunity. It is designed to perform consistently across various demanding industrial control environments.

Flexible subdivision settings

The board supports four different subdivision settings, allowing you to configure your stepper motor up to a maximum of 16-subdivision. This enables smoother rotation and finer positional control for your projects.

Adjustable driving current

With a driving current range of 0.3A to 3A, the board features 14 distinct output current modes. A current resolution of approximately 0.2A allows you to match the power output precisely to your stepper motor's requirements.

Built-in circuit protection

To safeguard your components, the driver board includes automatic half-current functionality alongside over-temperature shutdown. It also features low-voltage shutdown to provide reliable over-current protection during operation.

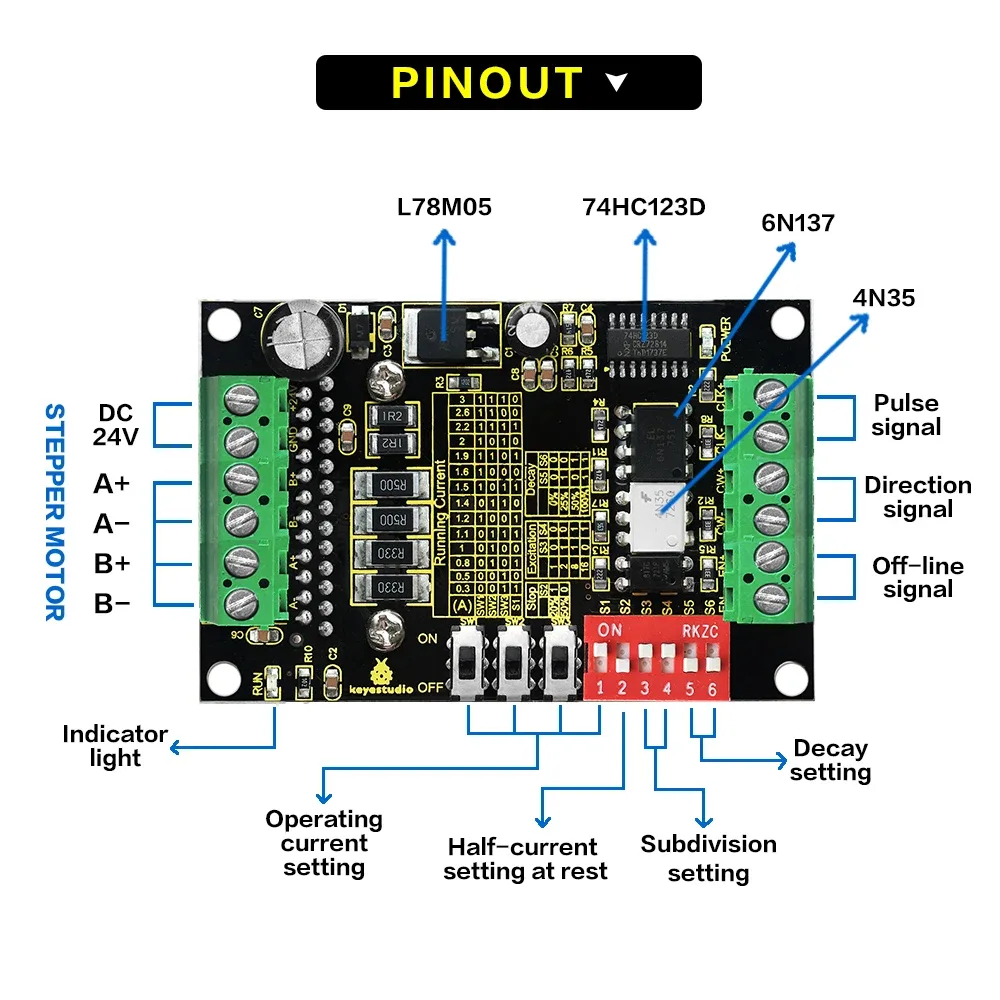

Clear wiring connections

The board is designed for straightforward integration with Arduino microcontrollers and external power supplies. Refer to the wiring diagram to correctly connect your stepper motor, power inputs, and control signals.
