Keyestudio Super Mega 2560 R3 Development Board For Arduino +USB Cable Advanced 5V 2A Current

The Keyestudio Super Mega 2560 R3 Advanced is a powerful microcontroller board designed for complex robotics projects, smart home automation, and advanced maker builds. Fully compatible with the Arduino Mega 2560 Rev3, this board is ideal for South African students, educators, and hobbyists who need extra input/output pins and reliable performance.

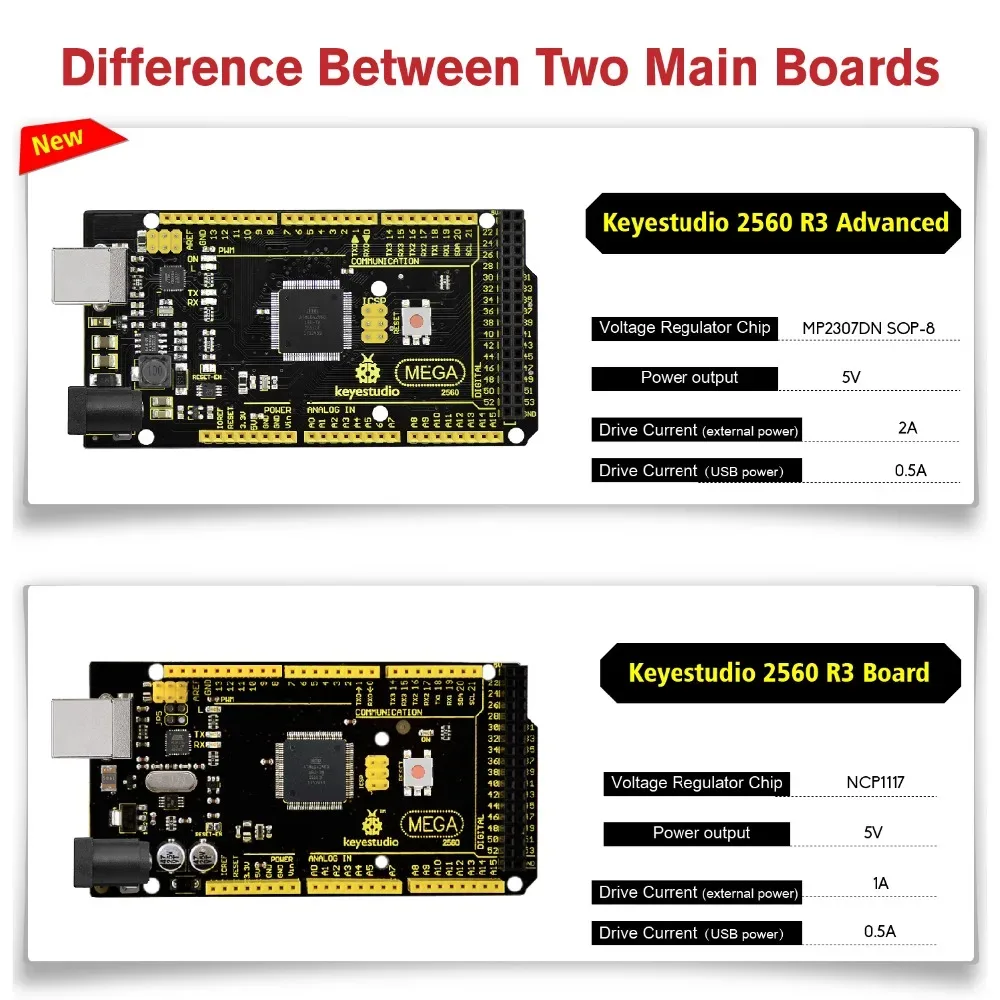

Atmega2560 microcontroller core

This board is built around the ATMEGA2560-16AU microcontroller, ensuring full compatibility with the Keyestudio Mega 2560 R3 and Arduino Mega 2560 Rev3 platforms. It features a 16 MHz crystal oscillator to deliver stable timing for all your coding projects.

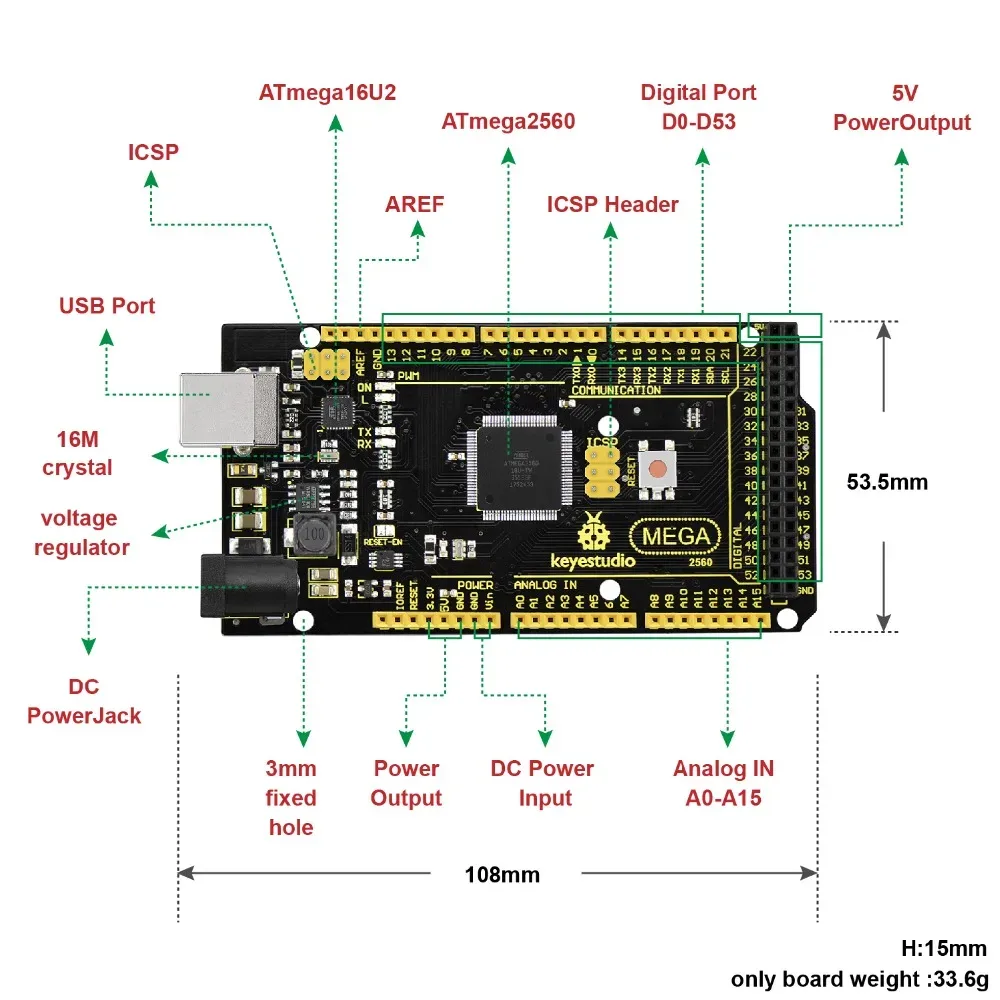

Expansive input and output options

With 54 digital input/output pins, including 15 that support PWM output, you can control multiple servos, sensors, and actuators simultaneously. It also offers 16 analog inputs and 4 UART hardware serial ports for extensive communication capabilities.

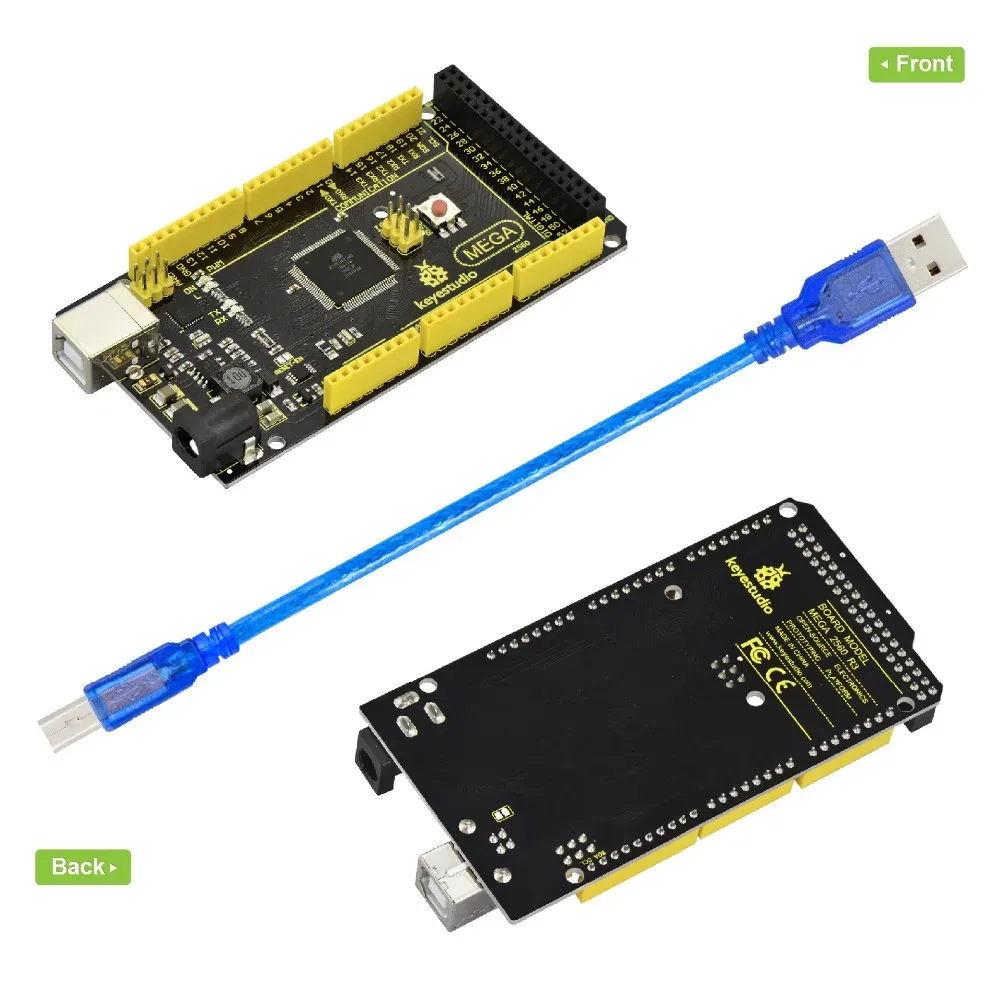

Convenient USB programming

The integrated bootloader allows you to upload code directly via a USB connection without the need for an external programmer. Simply connect the board to your computer with the included USB cable to start programming.

Flexible power supply methods

Power your projects easily by connecting a USB cable, using an external DC power jack (7-12V), or supplying 7-12V DC directly through the Vin and GND female headers.

Onboard hardware essentials

The board includes a physical reset button for quick debugging and two ICSP headers for advanced programming and SPI communication. It contains everything required to support the microcontroller right out of the box.
