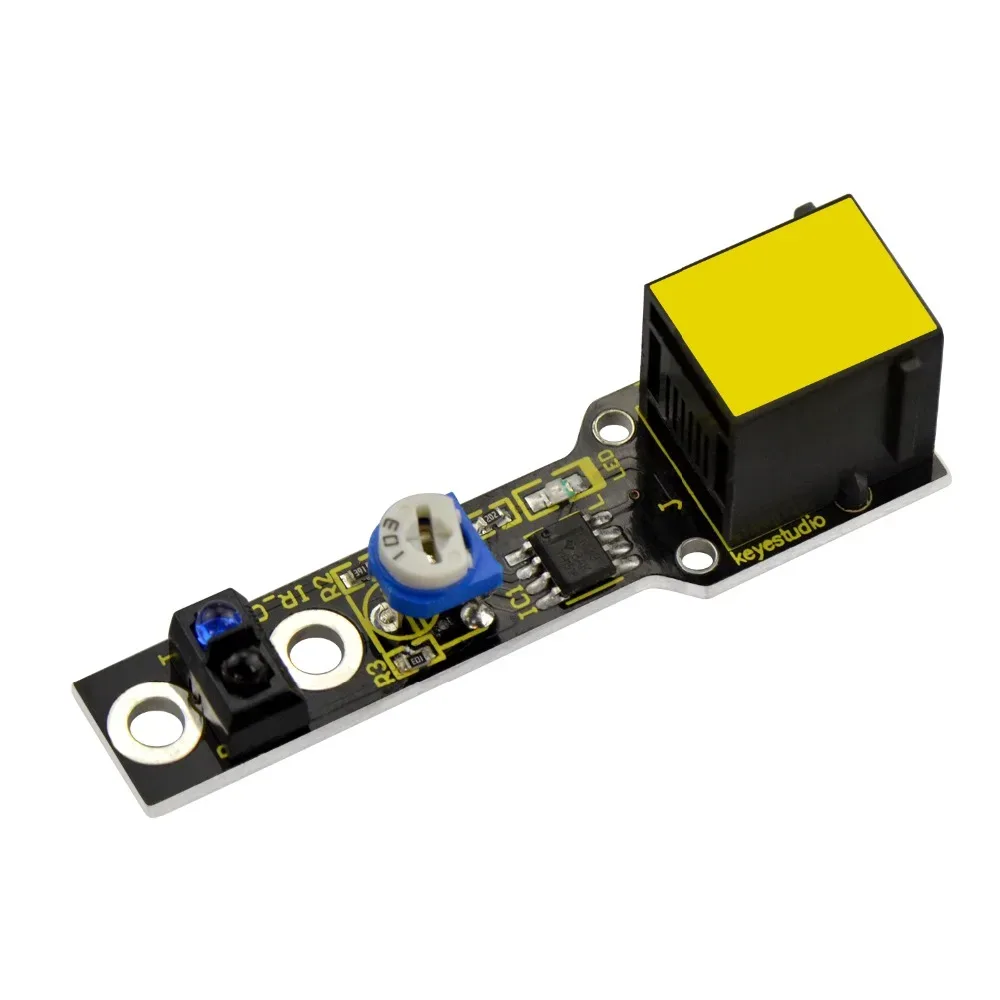

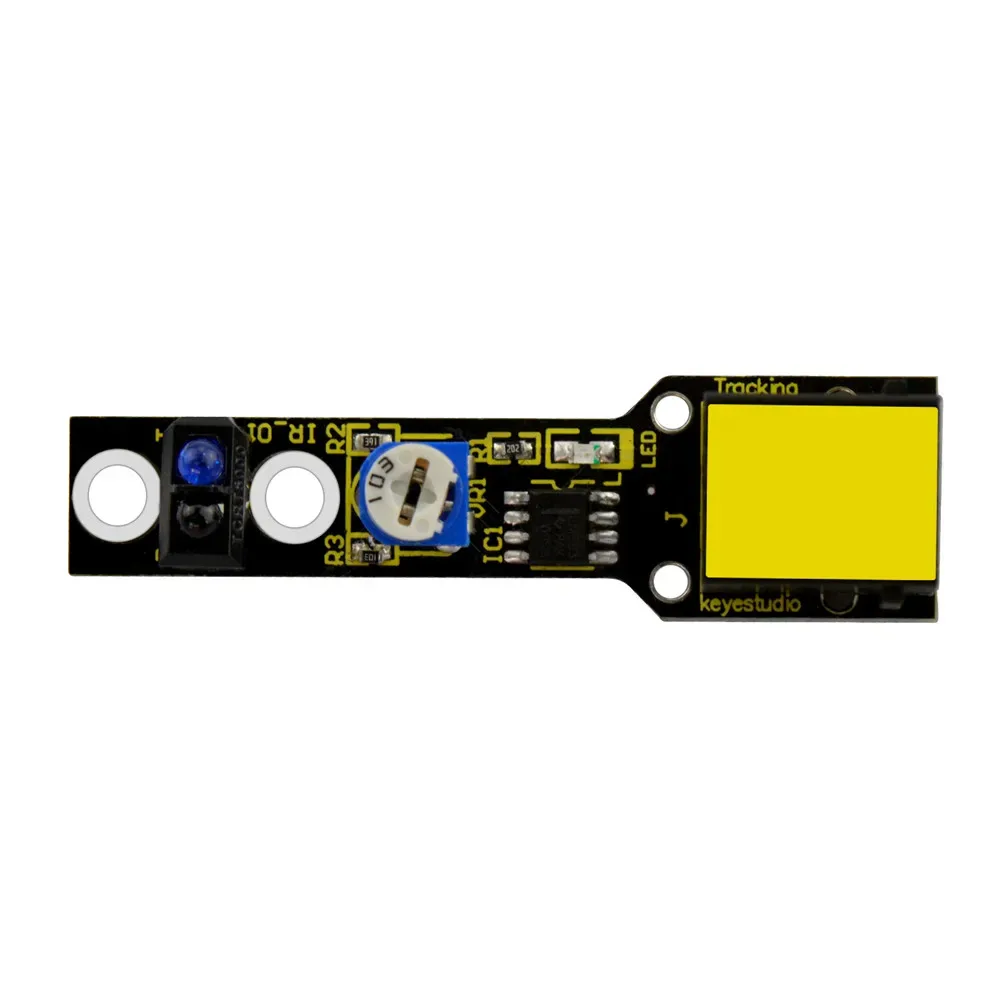

Keyestudio RJ11 EASY plug Line Tracking Sensor Module for Arduino Starter STEAM

The Keyestudio RJ11 EASY plug Line Tracking Sensor Module is an easy-to-use infrared detector designed to help autonomous robots follow paths by accurately distinguishing between black and white surfaces. It is an ideal addition for students, educators, and hobbyists building their first Arduino-based STEAM robotics projects.

Infrared surface detection

The sensor utilises the differing reflectivity of infrared light on different colours to detect lines. It converts the strength of the reflected infrared signal into a current signal to accurately tell white from black.

Solderless RJ11 connection

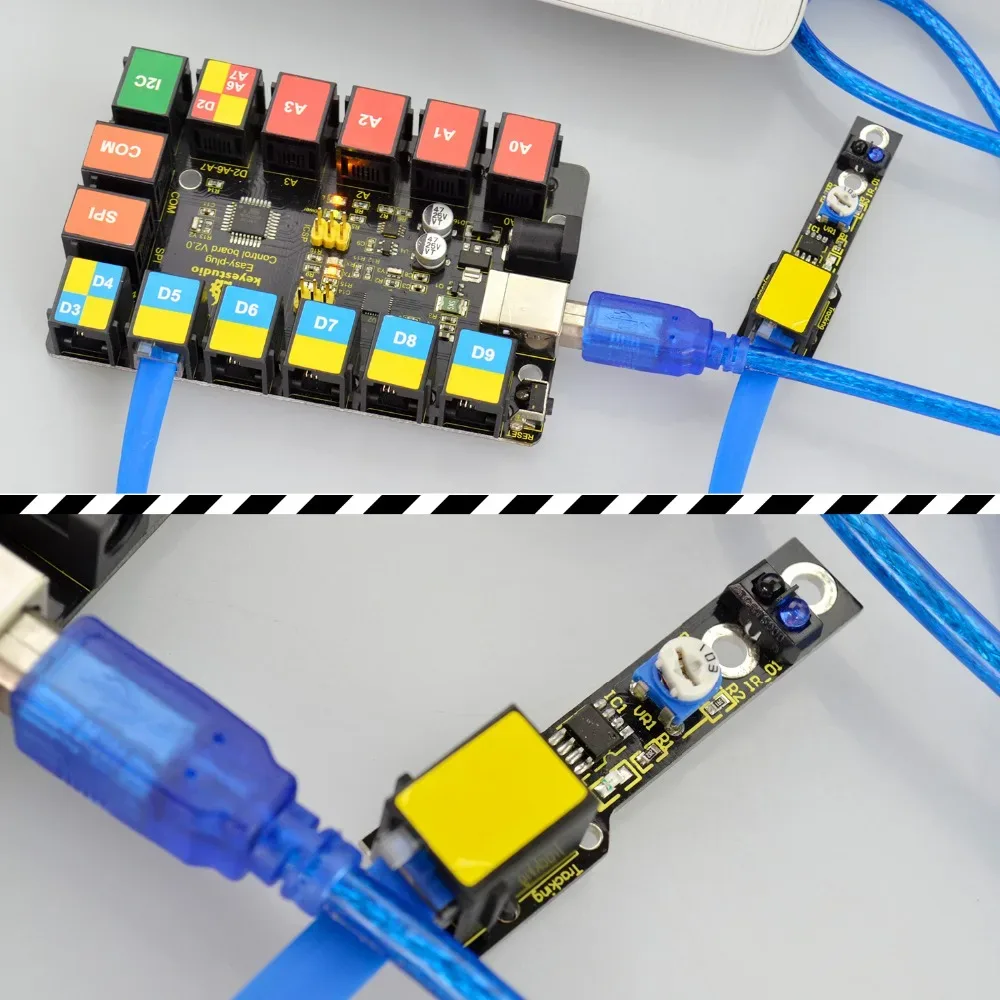

Equipped with a high-quality RJ11 connector, this module is designed for rapid, solderless prototyping. It is designed to be used together with an EASY plug control board.

Stable TTL signal output

The single line-tracking signal provides a stable TTL output for highly accurate tracking. The sensor outputs a LOW level when detecting black and a HIGH level when detecting white.

Standard five volt operation

Operating on a standard 5V power supply, this sensor integrates seamlessly into common microcontroller setups. A dedicated Wiki page tutorial is available to assist with programming and integration.

Compact physical dimensions

With dimensions of 57mm by 16mm by 18mm and a weight of just 4.8g, this lightweight module is easy to mount on small robot chassis. It operates reliably in temperatures ranging from 0 to 50 degrees Celsius.
