Keyestudio Raspberry Pico IO Prototype Expansion Board Diy STEM Education Programming

The Keyestudio Raspberry Pico IO Prototype Expansion Board is a versatile prototyping companion designed for students, educators, and makers working with the Raspberry Pi Pico. This expansion board simplifies the process of connecting sensors and modules, making it an ideal tool for hands-on STEM education and DIY electronics projects.

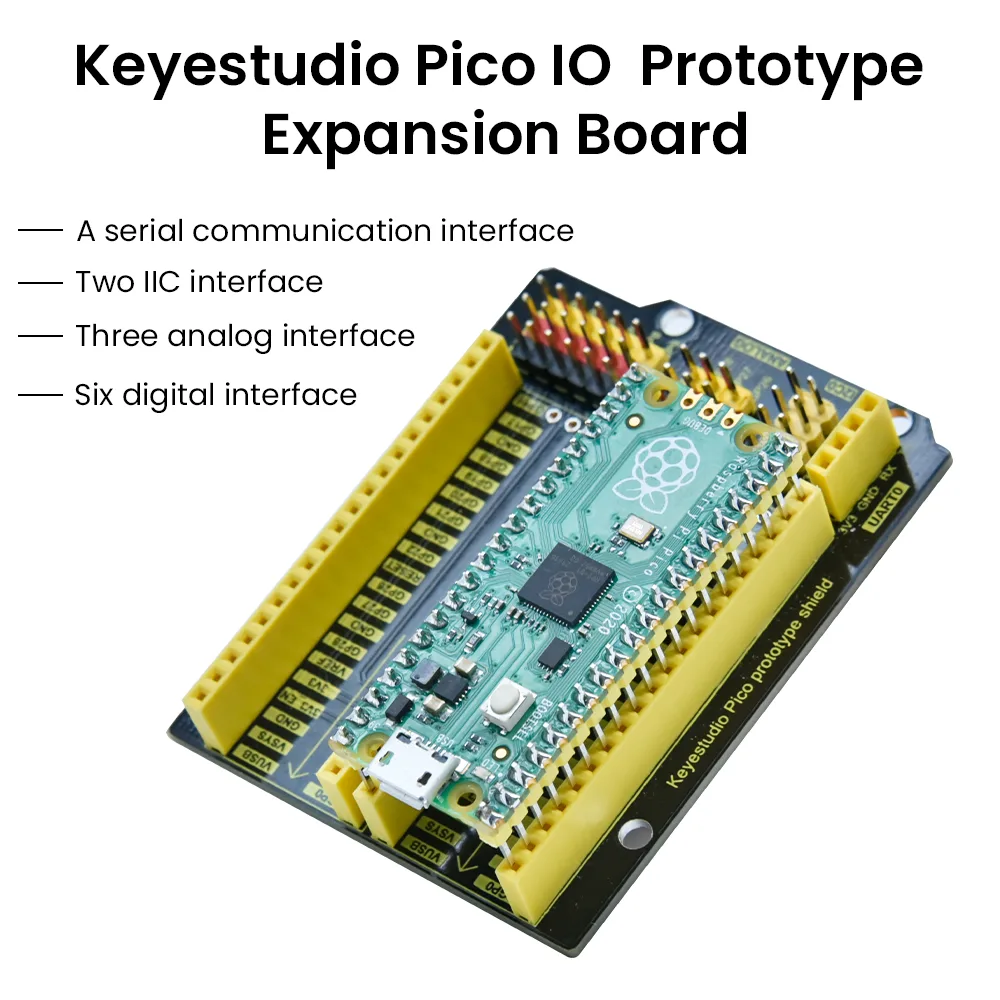

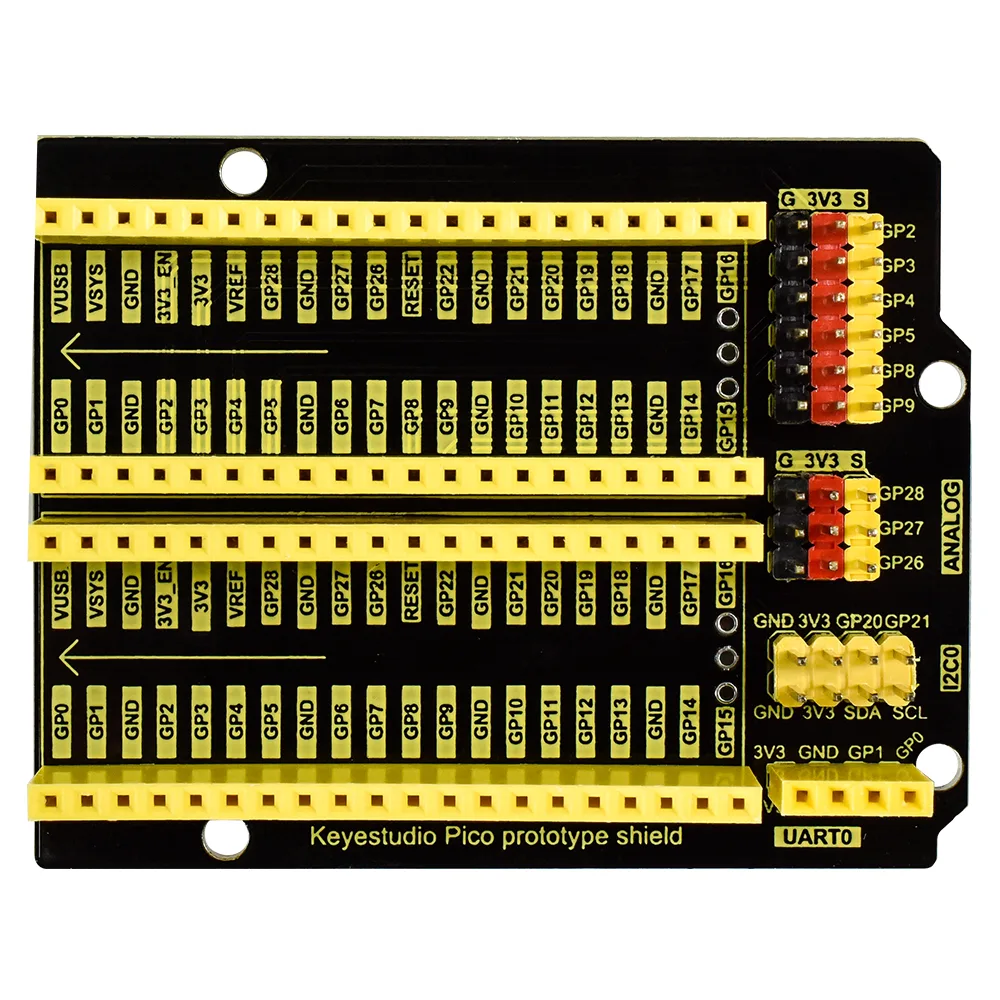

Versatile prototyping expansion

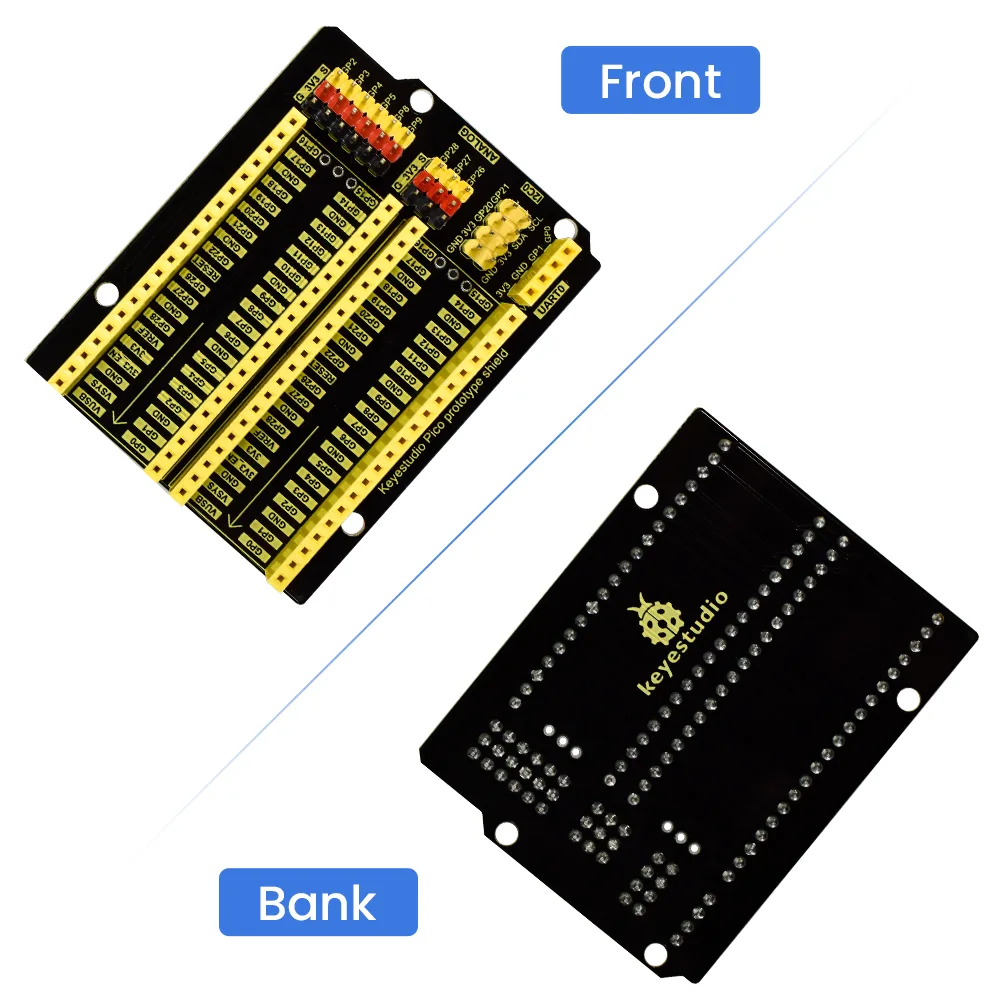

The Keyestudio Pico IO Prototype Expansion Board breaks out the pins of your Raspberry Pi Pico into dedicated, easy-to-access headers. This layout streamlines the prototyping process by allowing you to connect multiple peripherals without messy breadboard wiring.

Dedicated serial communication

Featuring a dedicated serial communication interface, this board enables straightforward UART connections to other microcontrollers, GPS modules, or Bluetooth adapters. This makes it easy to integrate wireless communication into your Raspberry Pi Pico projects.

Dual I2C interfaces

With two onboard IIC interfaces, you can easily daisy-chain multiple I2C sensors, displays, and actuators. This dual-interface design expands your project's capabilities without consuming additional GPIO pins.

Three analog inputs

The board provides three analog interfaces, allowing you to connect sensors like potentiometers, light-dependent resistors, or sound sensors. These interfaces make it simple to read real-world environmental data with your Pico.

Six digital interfaces

Equipped with six digital interfaces, this expansion board offers plenty of connection points for buttons, relays, LEDs, and digital sensors. Each interface is clearly labelled to ensure quick and error-free wiring during busy classroom sessions.

Designed for STEM education

This board is specifically tailored for DIY electronics and STEM education, offering a robust platform for students and hobbyists to learn programming. The plug-and-play style headers reduce troubleshooting time, letting learners focus on code and logic.
