Keyestudio Raspberry Pi Pico IO Shield Development Board For Raspberry Pi

The Keyestudio Raspberry Pi Pico IO Shield is an expansion board designed to simplify prototyping with your Raspberry Pi Pico without any soldering. It is ideal for students, educators, and makers looking to quickly connect sensors, actuators, and communication modules to their Pico projects.

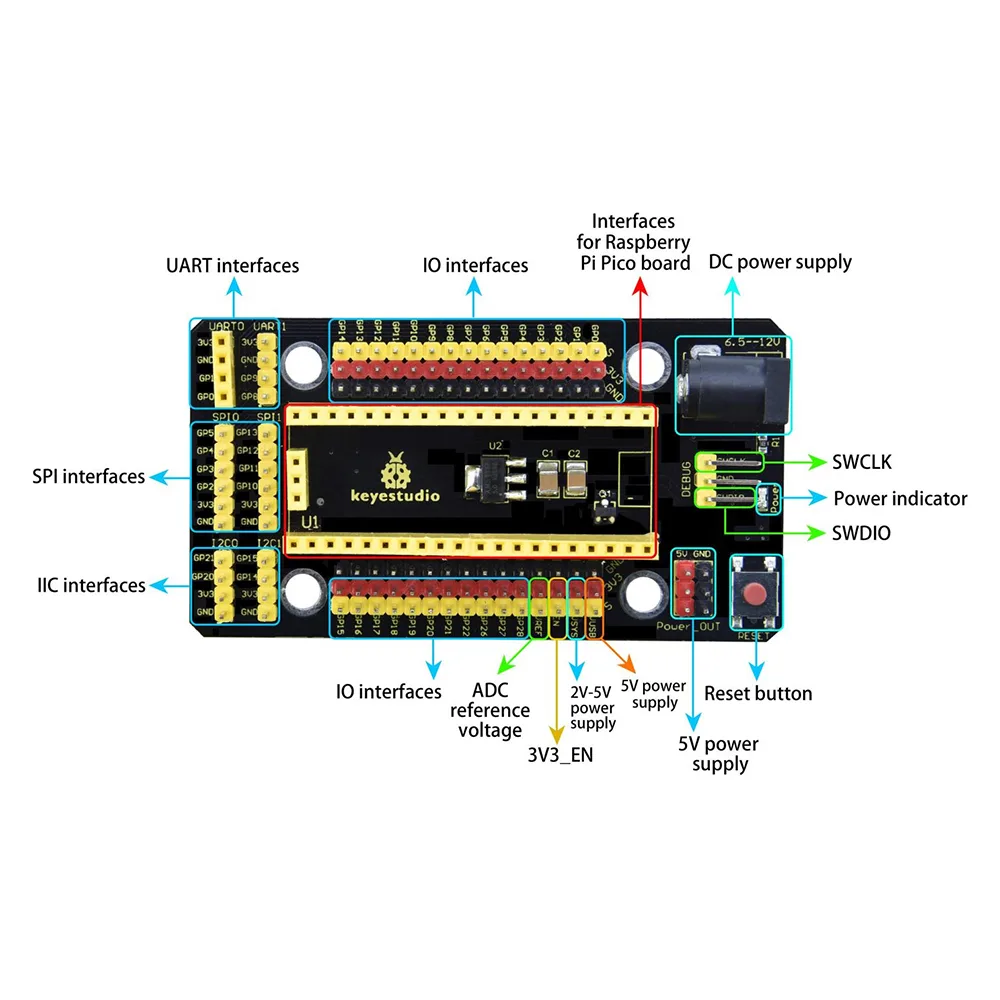

Solderless prototyping made easy

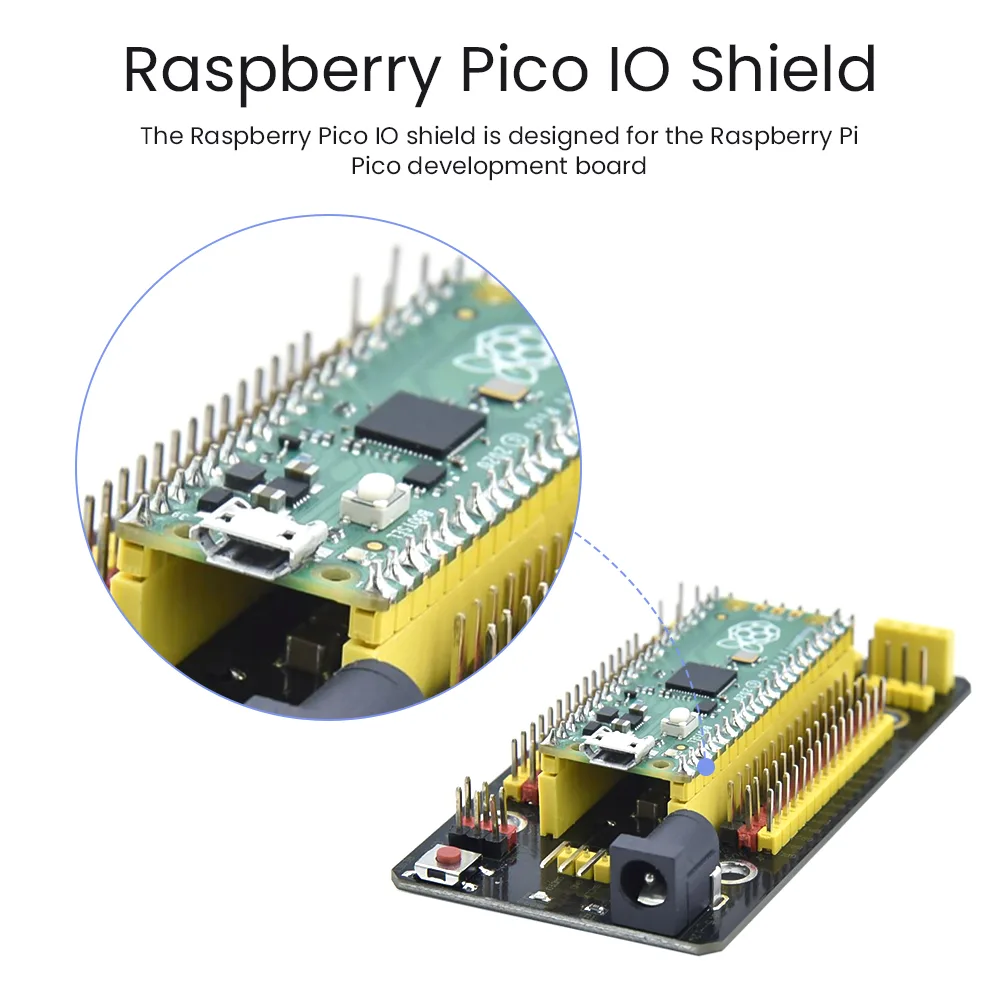

This IO shield is designed specifically for the Raspberry Pi Pico, allowing you to connect components securely without any soldering. It streamlines the building process for classroom environments and rapid prototyping.

Versatile communication interfaces

The board breaks out essential communication protocols, featuring two I2C ports, two UART ports, and two SPI ports. This makes it straightforward to interface with a wide range of external displays, sensors, and controllers.

Dedicated digital and analogue pins

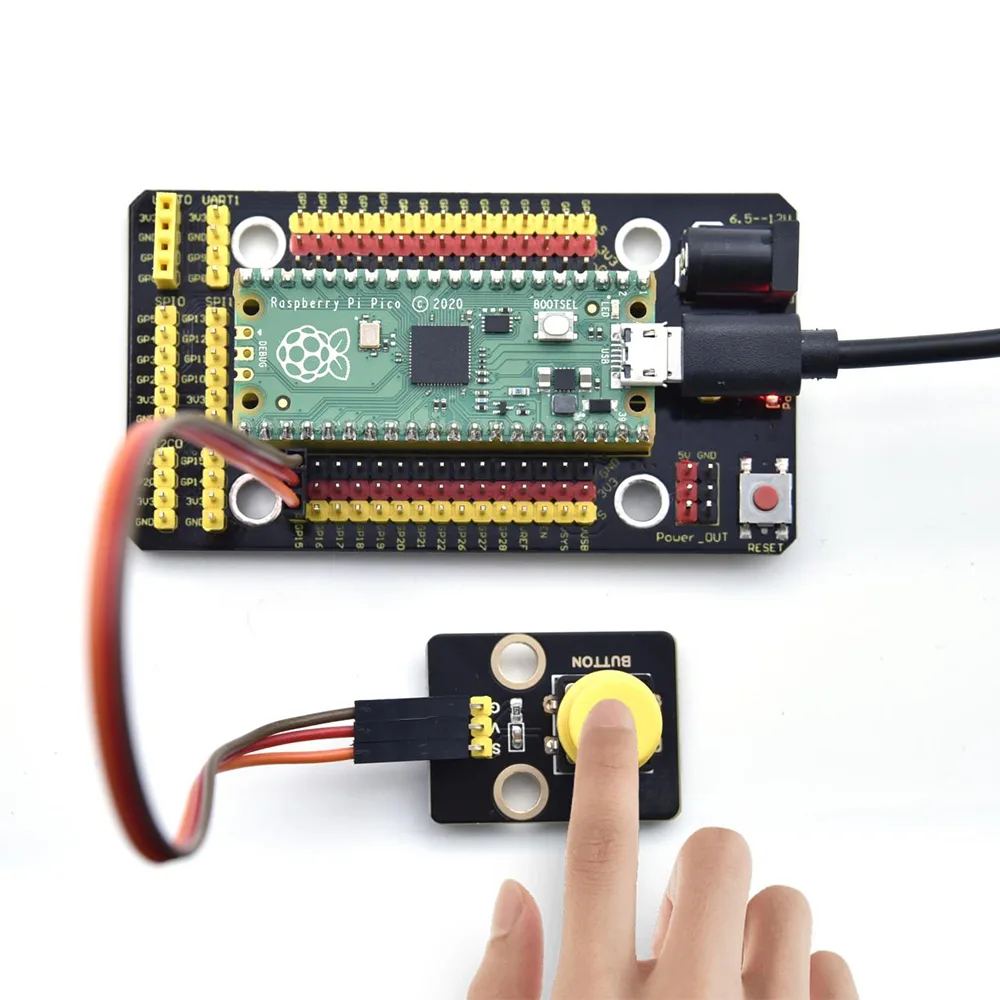

With 13 digital IO pins and 3 analogue IO pins broken out, you have plenty of connection points for your project inputs and outputs. The standard 2.54mm pin header spacing ensures compatibility with common jumper wires and components.

Flexible external power options

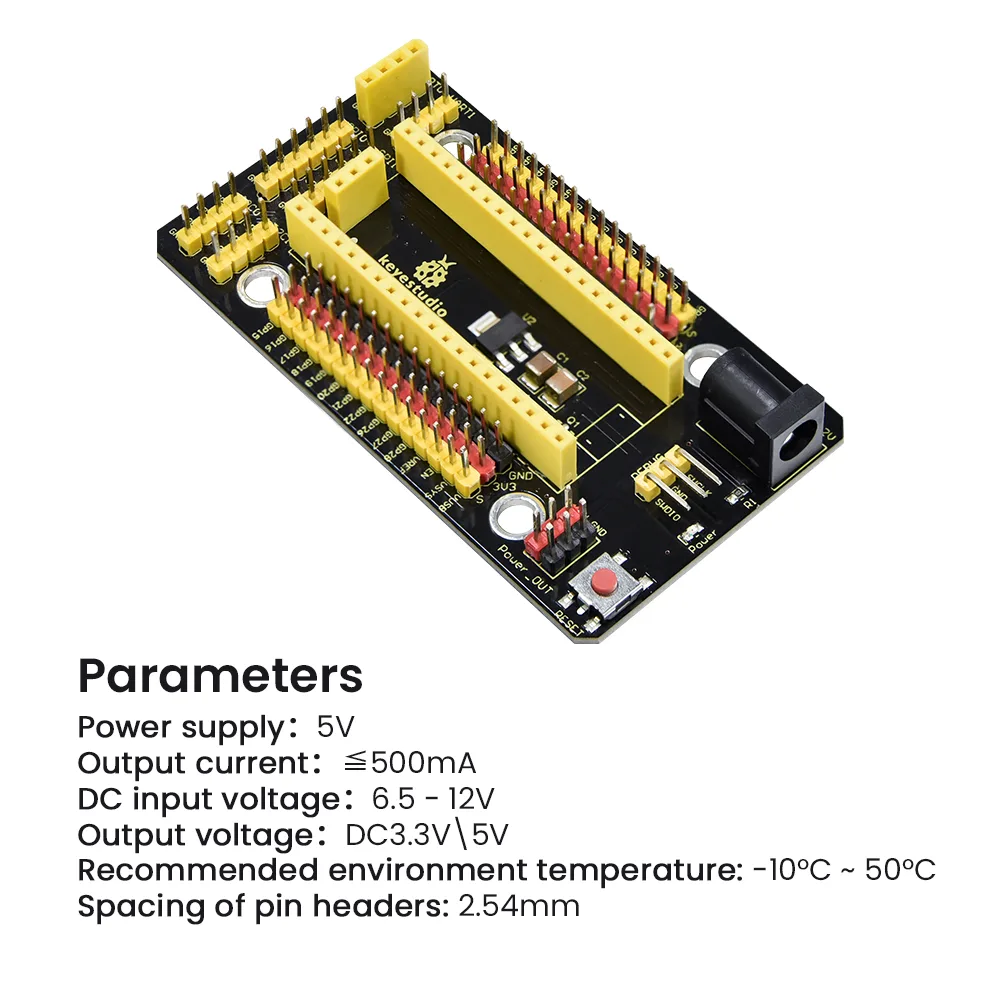

The shield supports a wide DC input voltage range of 6.5V to 12V and provides dual output voltages of 3.3V and 5V. It delivers an output current of up to 500mA to power your connected modules safely.

Integrated Lego mounting holes

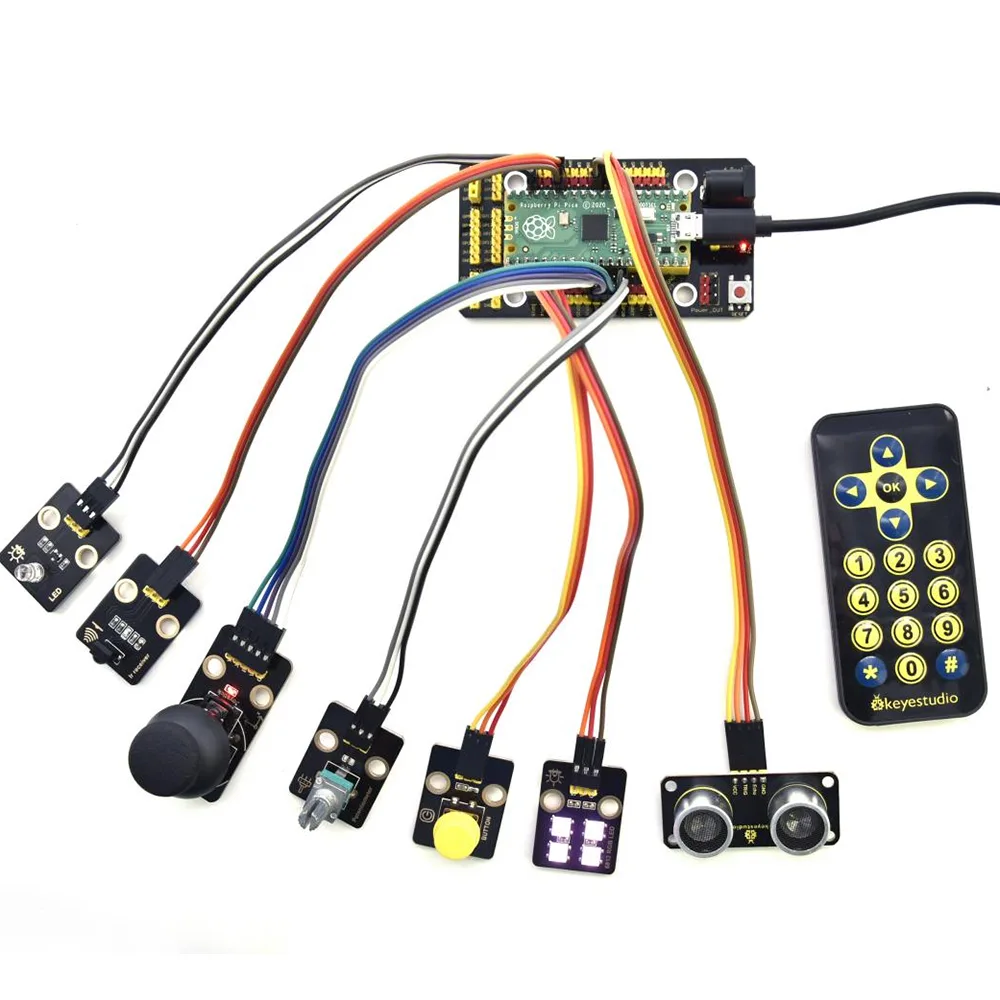

Built-in Lego-compatible positioning holes allow you to easily integrate your electronics with mechanical builds. This structural feature helps secure multiple sensors and modules in place for robust robotics projects.

Compact dimensions for neat builds

Measuring just 45.339mm by 83.617mm, this compact board fits neatly into small enclosures and custom chassis. It is rated to operate reliably in ambient temperatures ranging from -10 degrees Celsius to 50 degrees Celsius.
