Keyestudio Power Shield Module without battery for BBC Micro bit(Battery type is CR1632)

The Keyestudio Power Shield Module is a compact expansion board designed to power your BBC micro:bit, making it ideal for mobile and wearable projects. It is perfect for students, makers, and hobbyists looking to take their micro:bit creations on the go.

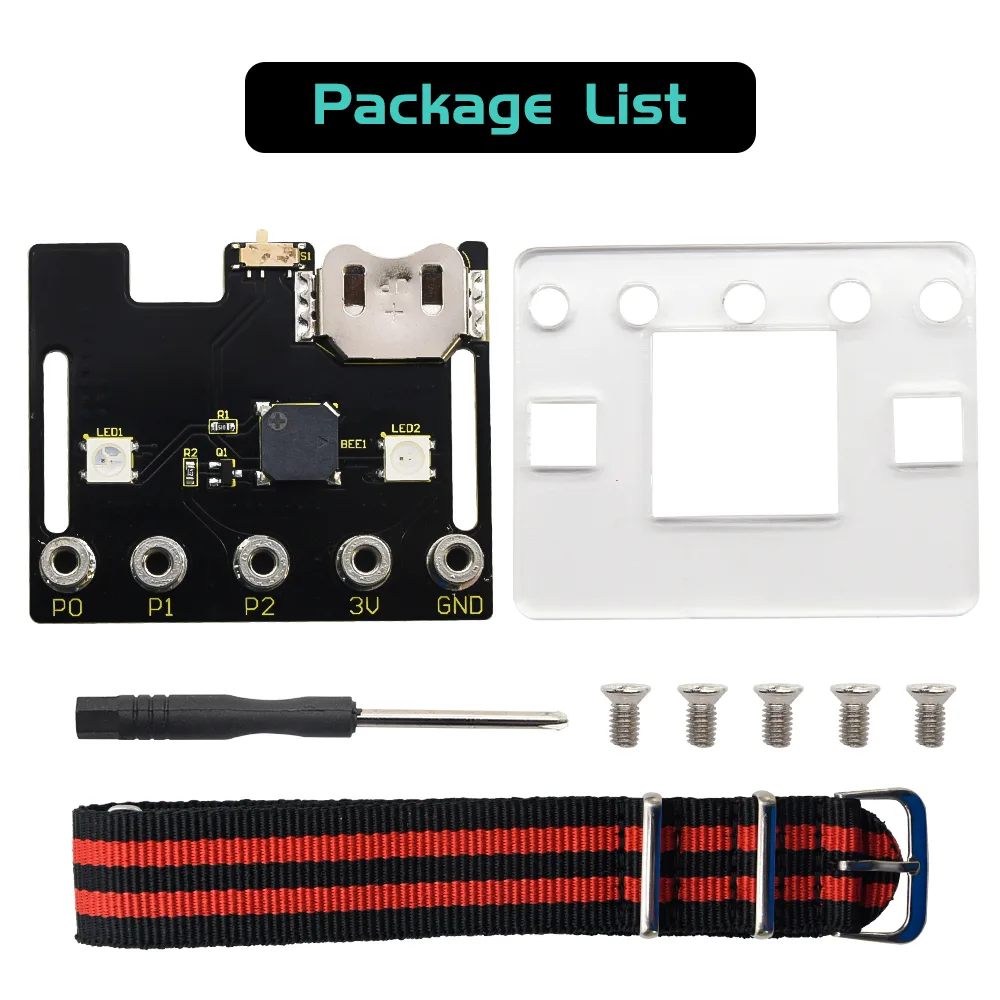

Reliable power for micro:bit

This power shield is fully compatible with the BBC micro:bit control board, providing a convenient mobile power source. Please note that the required CR1632 button battery is not included.

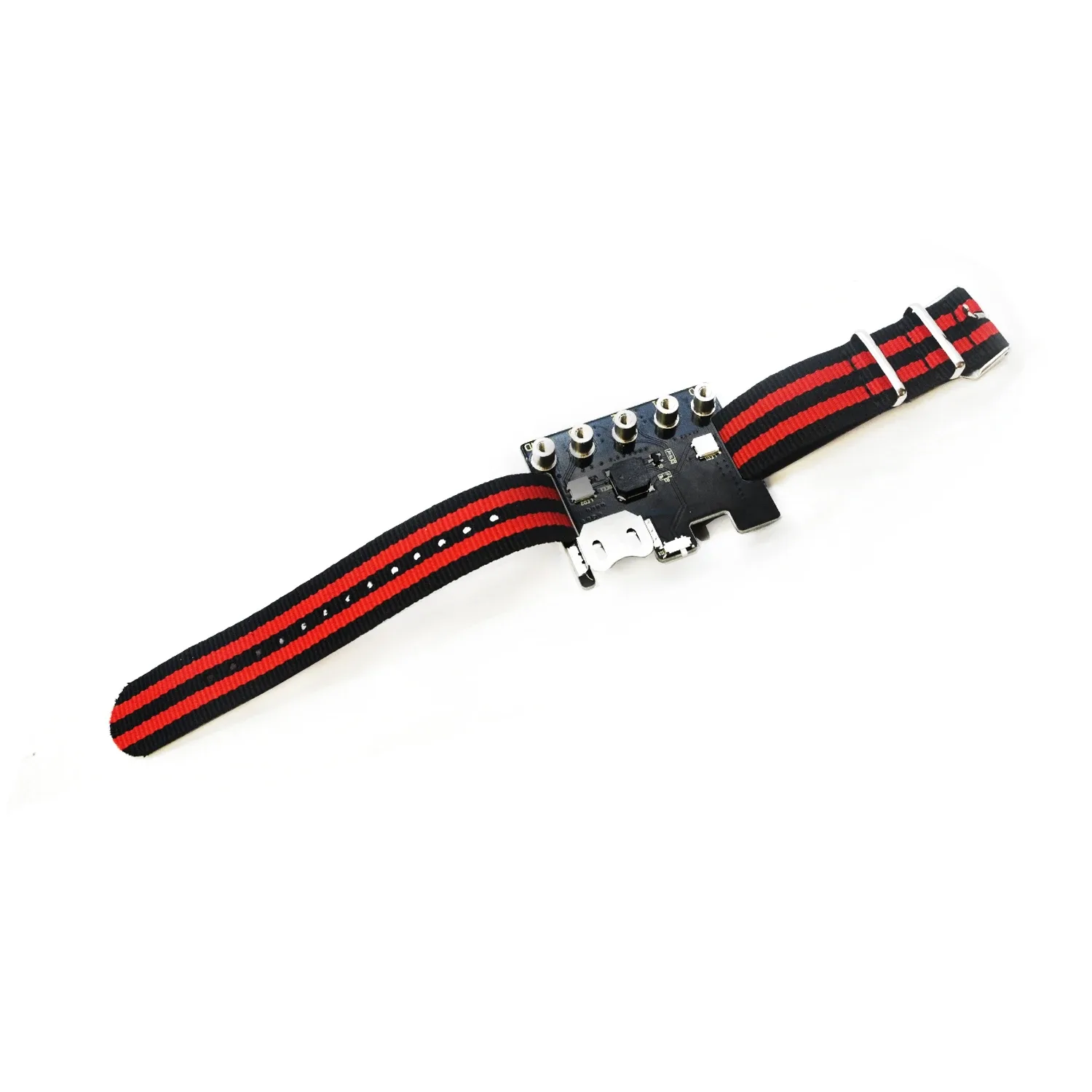

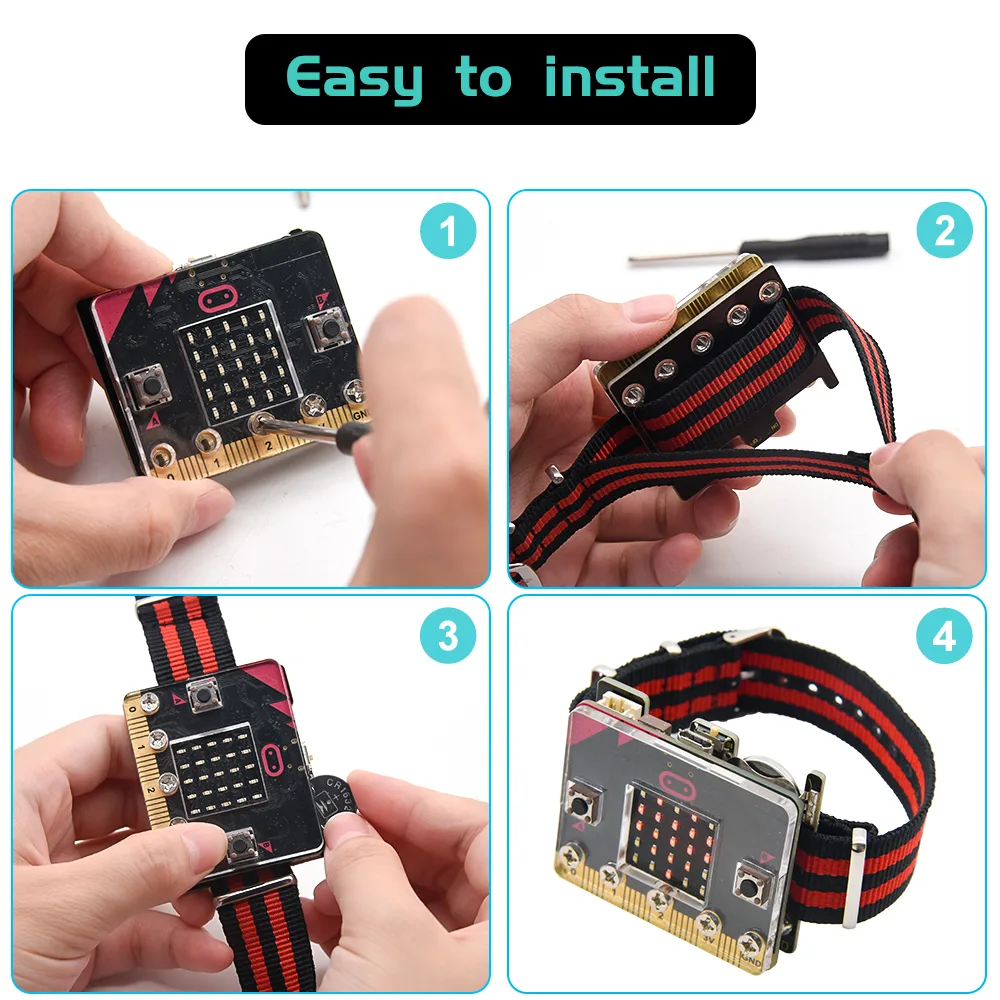

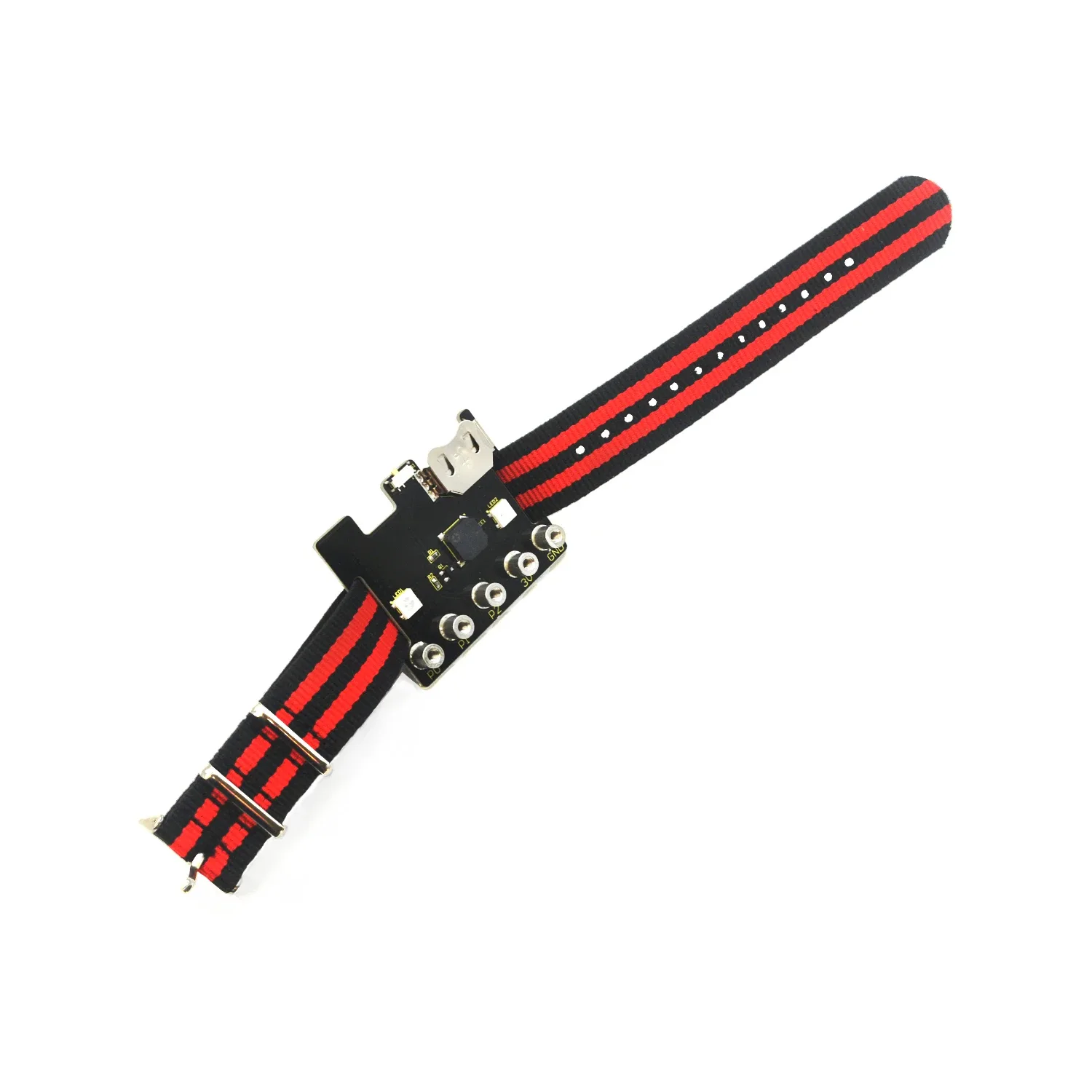

Wearable wristband support

The shield can be easily worn on the wrist by attaching a 20mm watchband. This makes it an excellent choice for portable applications, step counters, and wearable tech projects.

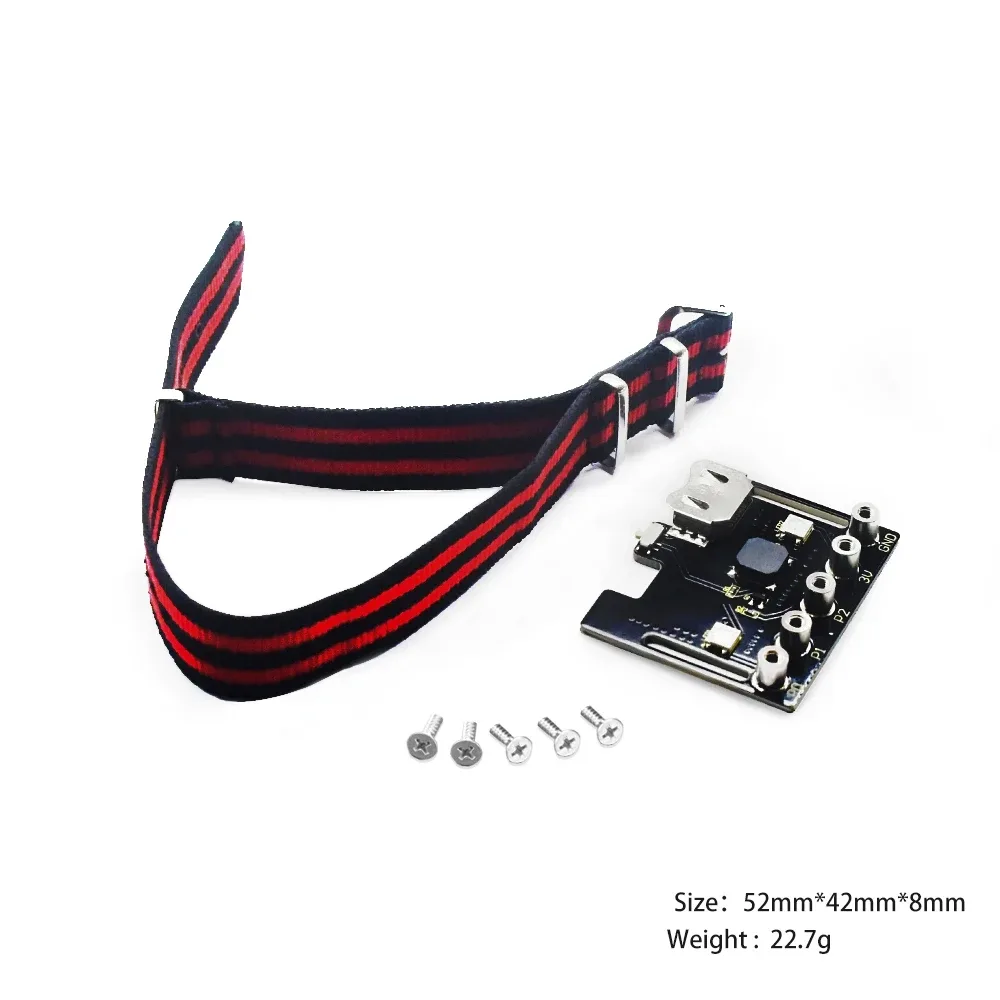

Secure screw mounting

Your micro:bit board is easily and securely fixed to the power shield using five included M3 x 6mm flat screws. This ensures a stable mechanical and electrical connection.

Colourful SK6812 LEDs

The board features two onboard SK6812 LEDs capable of displaying a wide variety of colours. These can be programmed for visual alerts, status indicators, or light displays.

Integrated passive buzzer

An onboard passive buzzer allows your micro:bit to play all kinds of music, sound effects, and audible alerts. It is perfect for adding audio feedback to your coding projects.

Electrical and physical specifications

The module operates at a working voltage of DC 3.3V with a working current of 30mA and a maximum power of 150mA. It measures 51.7mm by 42.5mm, has a working temperature range of -20 to 60 degrees Celsius, and complies with ROHS environmental standards.
