Keyestudio Multi-purpose Shield V1 for Arduino Starter

The Keyestudio Multi-purpose Shield V1 is an all-in-one learning board designed to plug directly into your Arduino-compatible controller without the need for soldering or complex wiring. It is an ideal tool for students, educators, and hobbyists looking to explore electronics through immediate, hands-on experimentation.

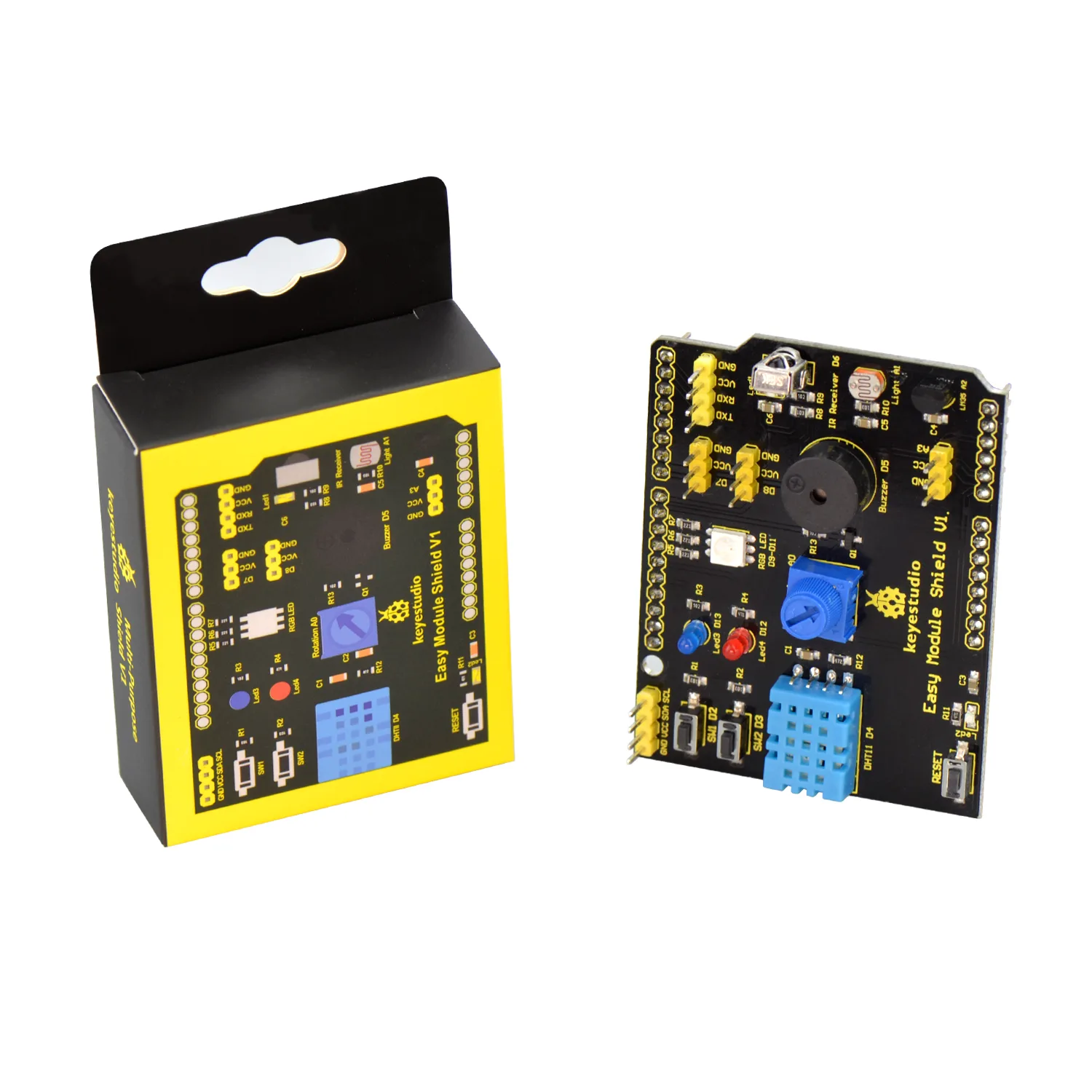

Solderless learning board

This shield eliminates the need for soldering or complex breadboard wiring, allowing you to download programmes directly and start experimenting immediately. It includes tested code libraries to help you get started right out of the box.

Broad controller compatibility

The shield is fully compatible with popular main controllers, including the Arduino UNO R3 and MEGA2560. This makes it highly versatile for integrating into your existing development setups.

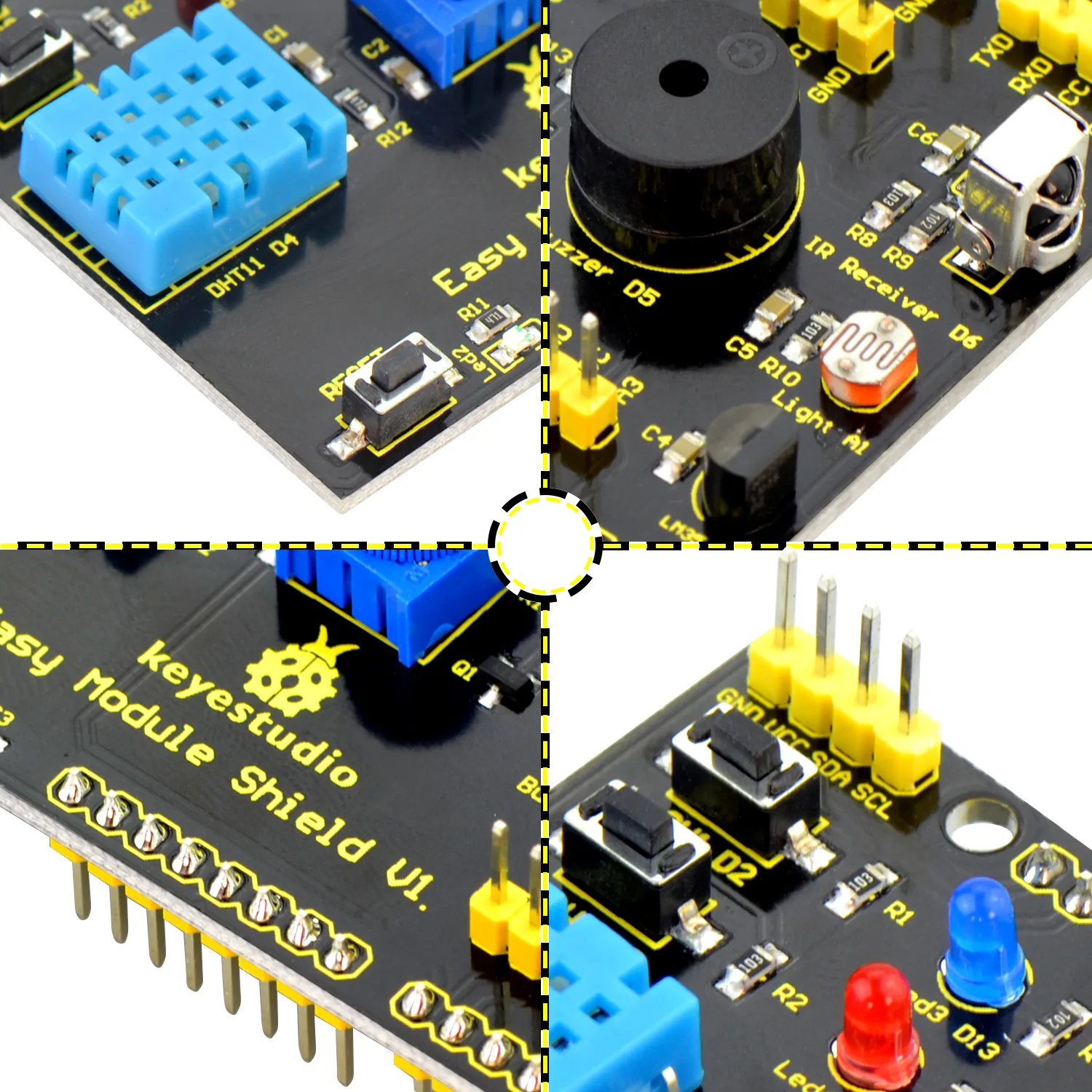

Built-in environmental sensors

Monitor your surroundings using the onboard DHT11 sensor for temperature and humidity, alongside an LM35D temperature sensor and a photocell for detecting ambient light levels.

Integrated user interface components

The board features a potentiometer for analogue input, two switches for external interrupt experiments, a reset button, and a passive buzzer for audio alerts.

Visual outputs and infrared control

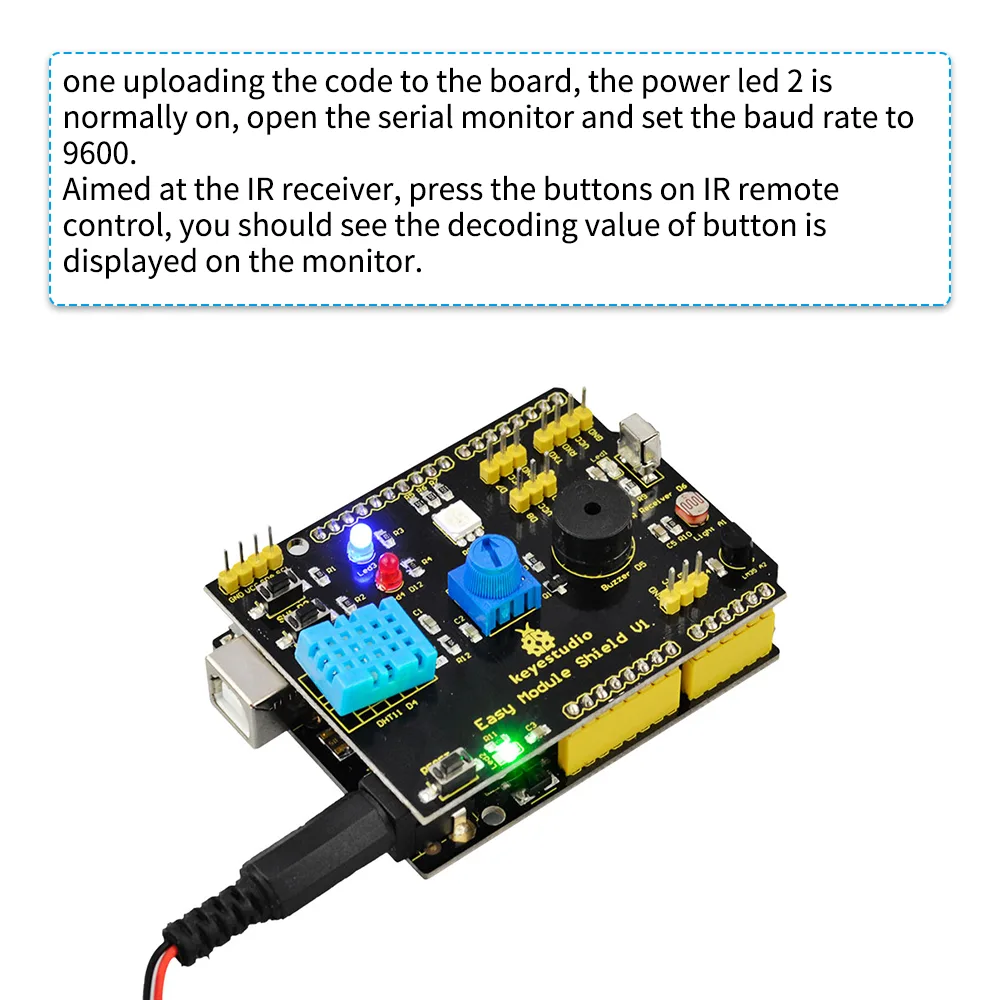

Create visual feedback using the full-colour RGB LED and two standard LED status indicators. An onboard infrared receiver is also included to support remote control projects.

Convenient expansion interfaces

Expand your projects further using the dedicated extension ports, which include two digital pins (D7 and D8), one analogue pin (A3), an IIC interface, and a TTL serial pin.
