Keyestudio Micro bit Honeycomb Hall Magnetic Sensor for BBC Micro Bit

The Keyestudio Micro bit Honeycomb Hall Magnetic Sensor is a practical, easy-to-connect sensor designed specifically for the BBC micro:bit. It is ideal for students, educators, and makers looking to explore magnetic fields and sensor integration without soldering.

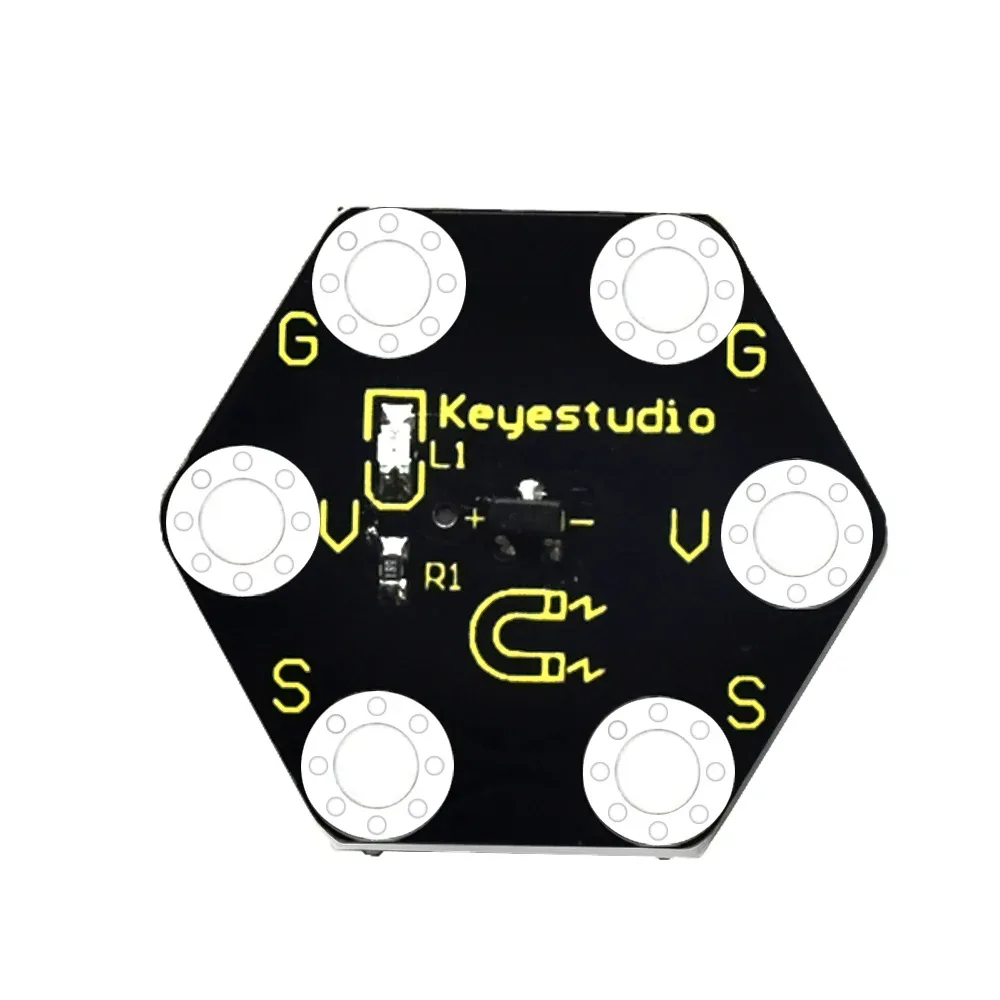

Responsive analog magnetic sensing

This Hall effect sensor detects nearby magnetic fields by outputting an analog signal to the micro:bit. As a magnet approaches, the analog value read by the control board decreases rapidly, enabling precise proximity tracking.

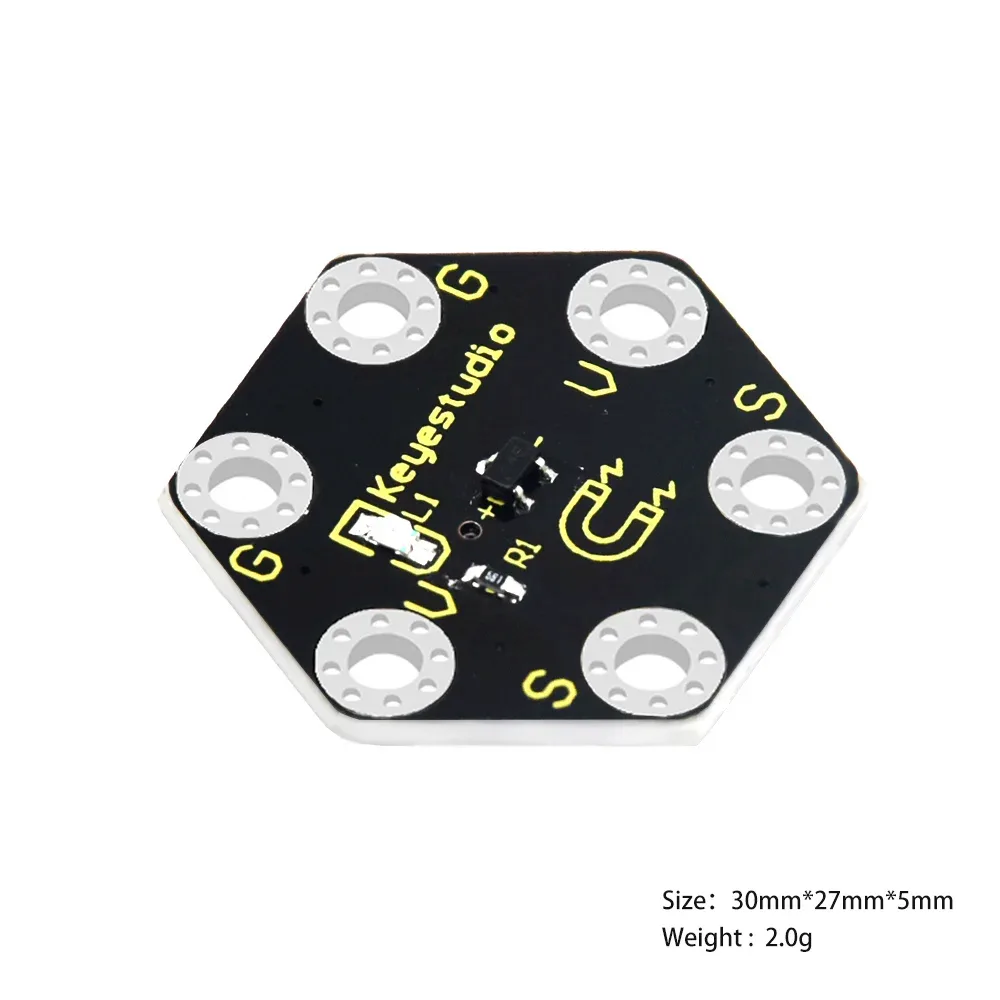

Honeycomb clip-friendly layout

The board features a unique honeycomb shape with six connection sockets, allowing quick hook-ups using standard crocodile clips. It includes dual sockets for ground, power, and signal lines for flexible wiring.

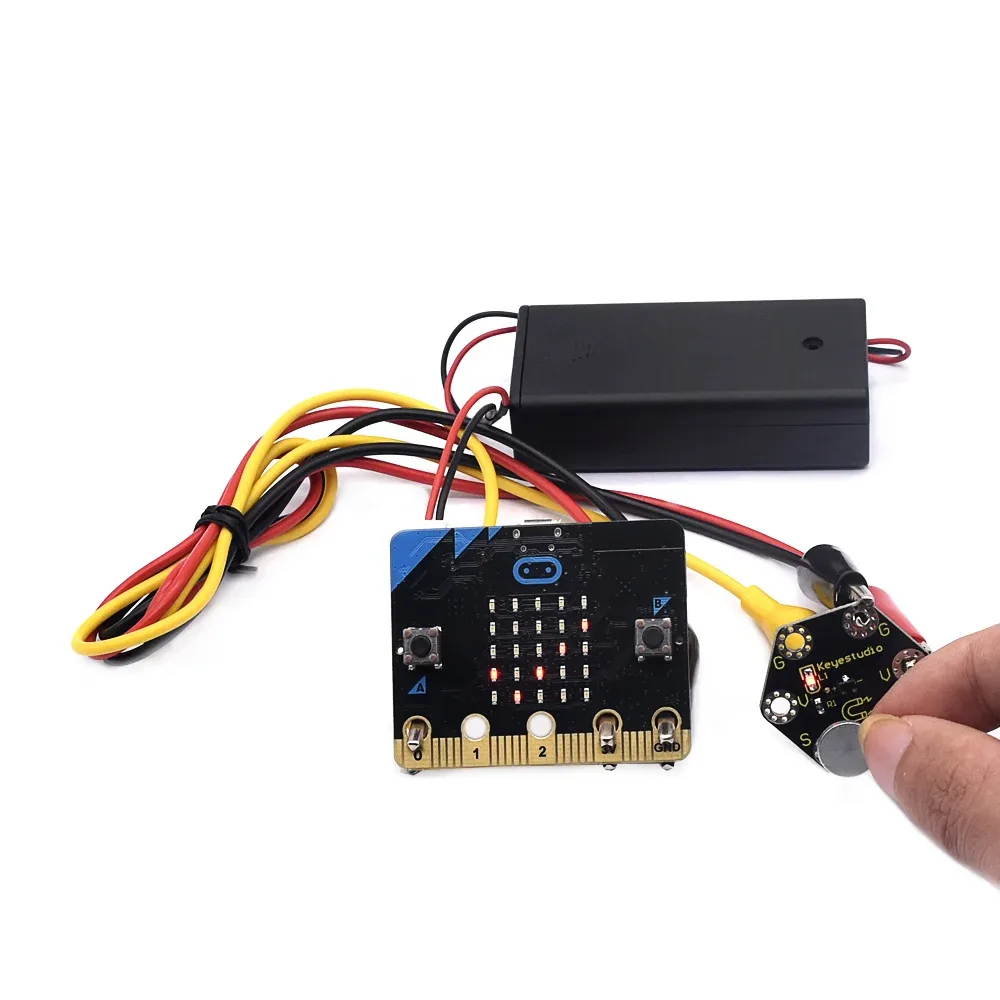

Compact and lightweight design

With dimensions of just 30mm x 27mm x 5mm and a weight of only 2.0g, this sensor is easy to integrate into small projects and custom enclosures. Its ROHS certification ensures it meets safety standards for classroom use.

Low-voltage power specifications

Designed to run on a DC 3-5V working voltage, the sensor draws a working current of 60mA and has a maximum power rating of 300mW. It operates reliably in temperatures ranging from -25 degrees Celsius to 65 degrees Celsius.
