keyestudio micro bit button Module For BBC

The keyestudio micro:bit button module is a simple tactile switch designed to introduce students and hobbyists to physical input programming. Fully compatible with the BBC micro:bit, this digital signal output device makes it easy to trigger actions and control your projects with a physical press.

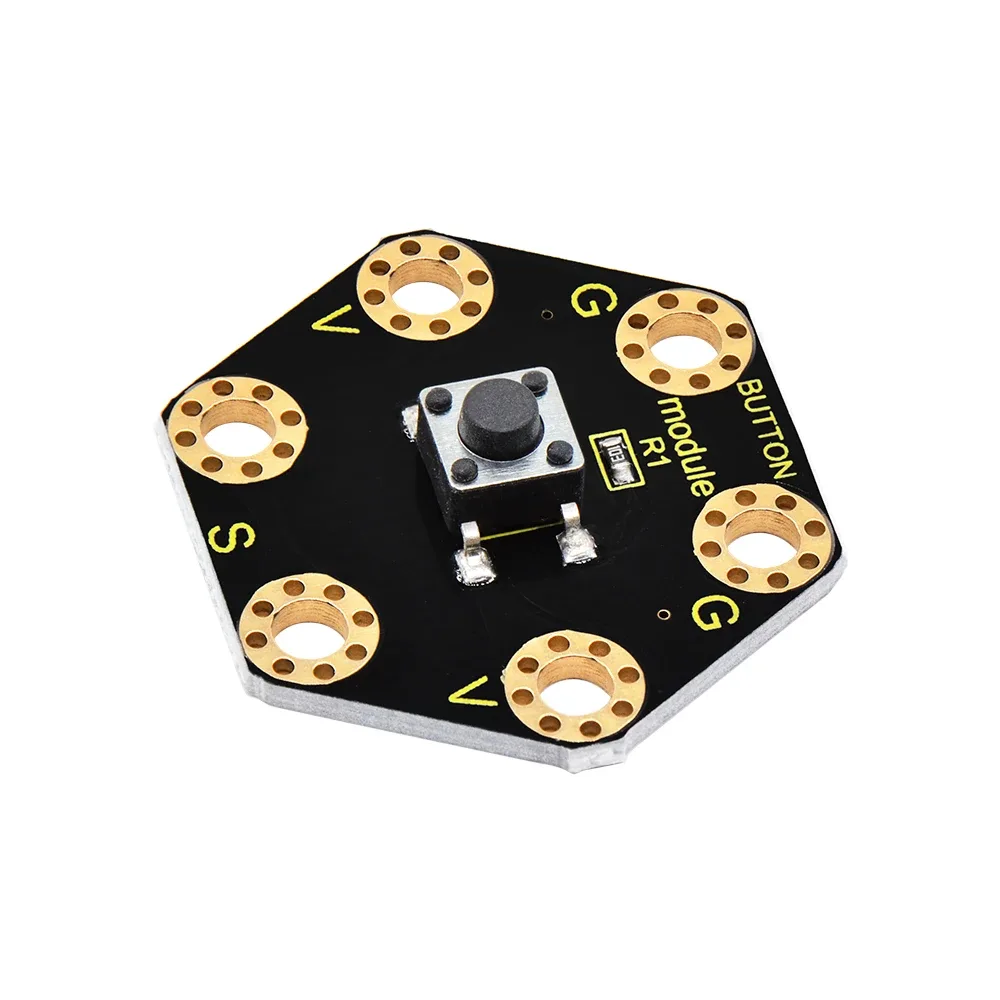

Easy crocodile clip connection

The module features six connection rings designed specifically for crocodile clip lines, making it easy to connect to your BBC micro:bit without soldering. The rings are grouped into pairs for ground, 3V power, and signal lines, offering flexible wiring options.

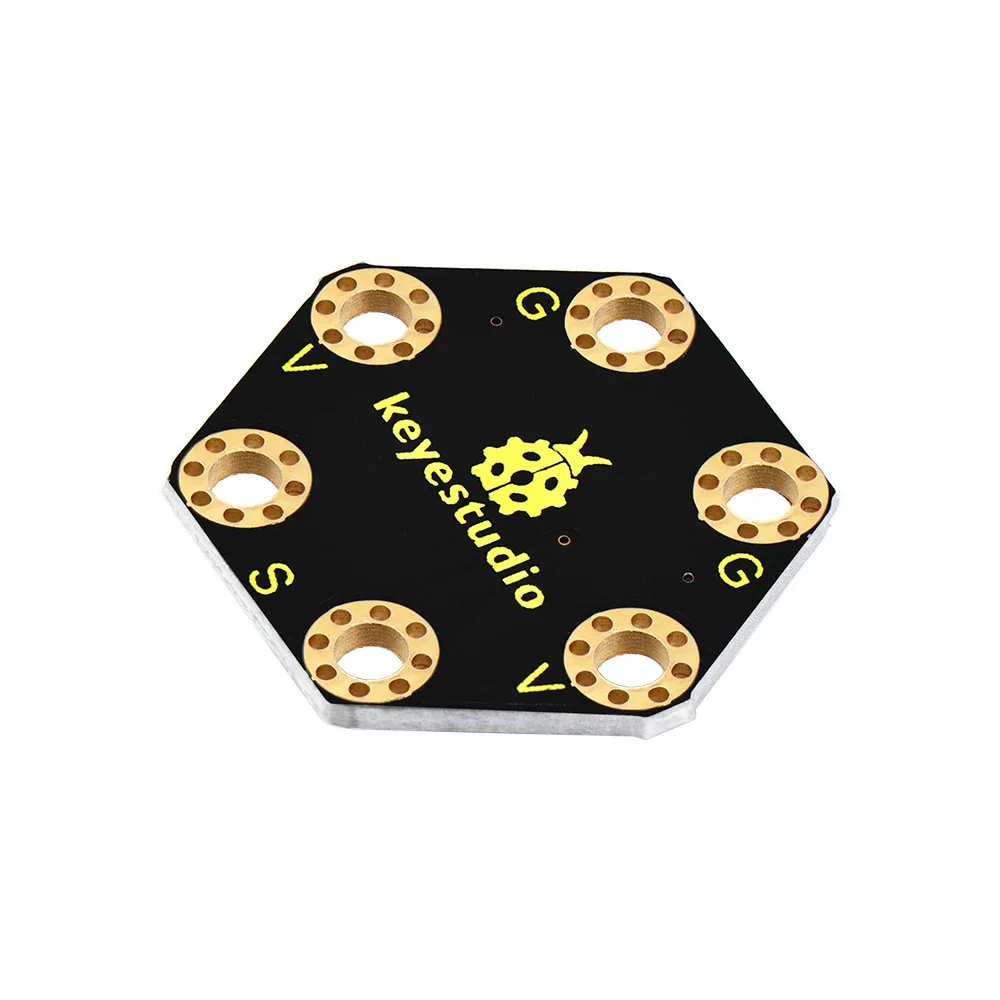

High digital signal output

Operating as a digital input device, this module sends a HIGH level signal to the micro:bit's signal pin (0, 1, or 2) whenever the tactile button is pressed. This allows users to easily program responsive triggers in their coding projects.

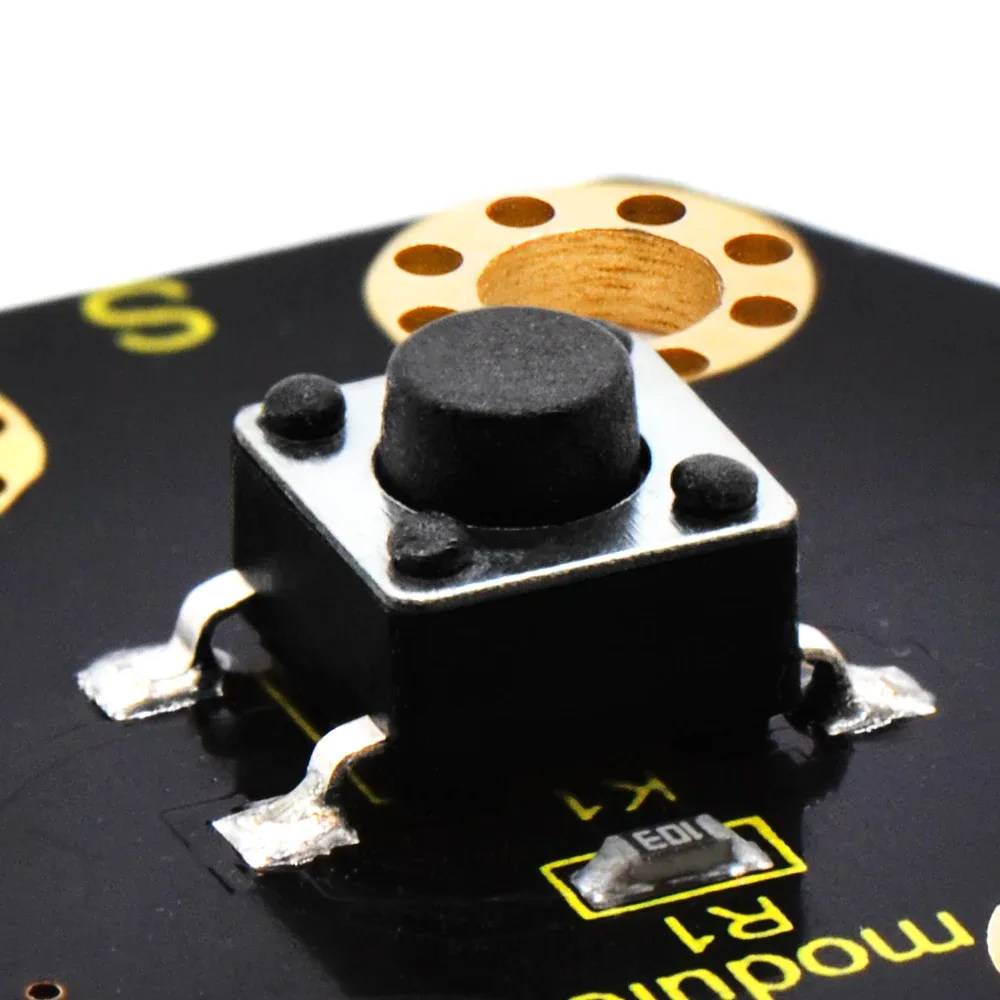

Low-voltage micro:bit compatibility

Designed to match the power profile of the BBC micro:bit, the module operates on a working voltage of DC 3.0V to 3.3V. This ensures safe and reliable integration with your microcontroller board.

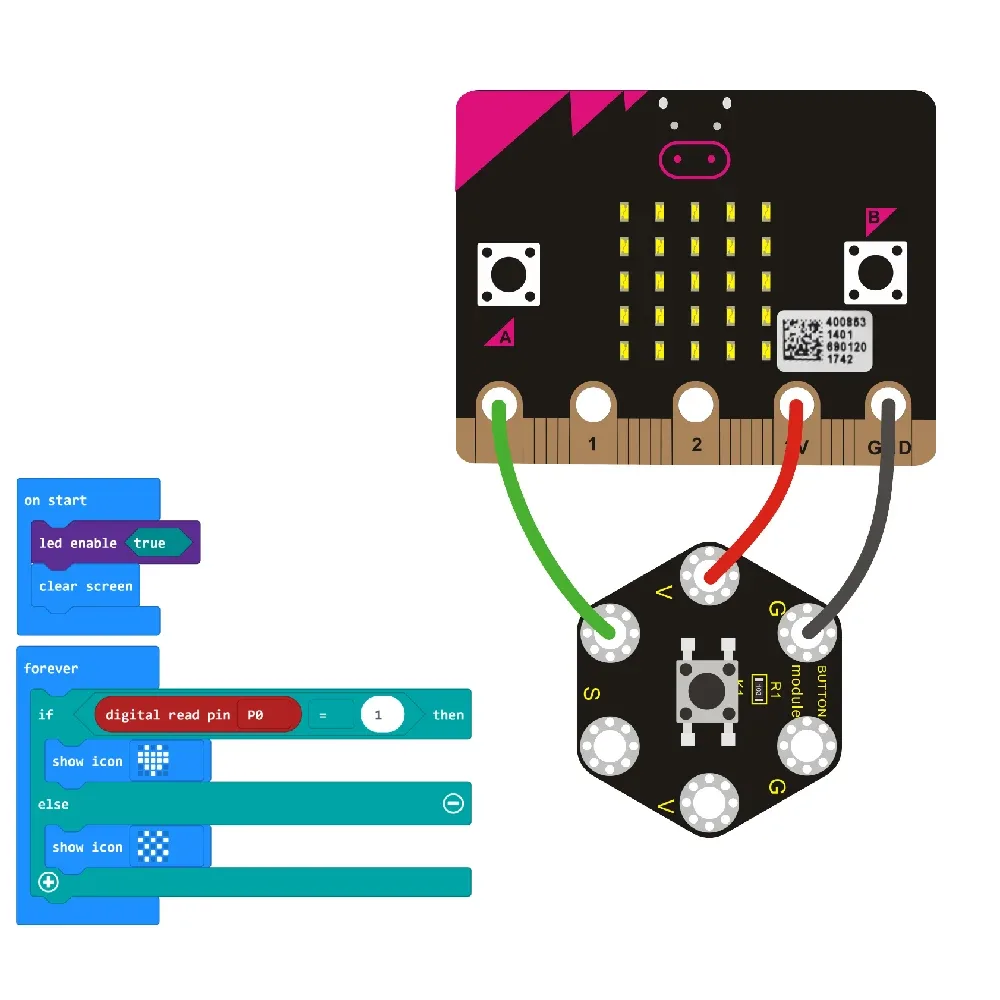

Dual-ring terminal layout

The board features two G (ground) rings, two V (3V) rings, and two S (signal) rings which are internally connected. This dual-ring layout provides convenient daisy-chaining and routing options for complex setups.

Compact and lightweight design

Measuring just 31mm by 27mm by 6.5mm and weighing a mere 1.8g, this compact board is easy to mount or integrate into wearable projects. It also carries RoHS environmental certification for peace of mind.
