Keyestudio Micro bit Breakout Board Adapter for BBC Micro:Bit

The Keyestudio Micro bit Breakout Board Adapter is a practical expansion accessory designed for students, educators, and makers using the BBC micro:bit. It breaks out the micro:bit's edge connector pins to standard pin headers, making it simple to link external circuits and sensors. This adapter is ideal for classroom prototyping and expanding your physical computing projects.

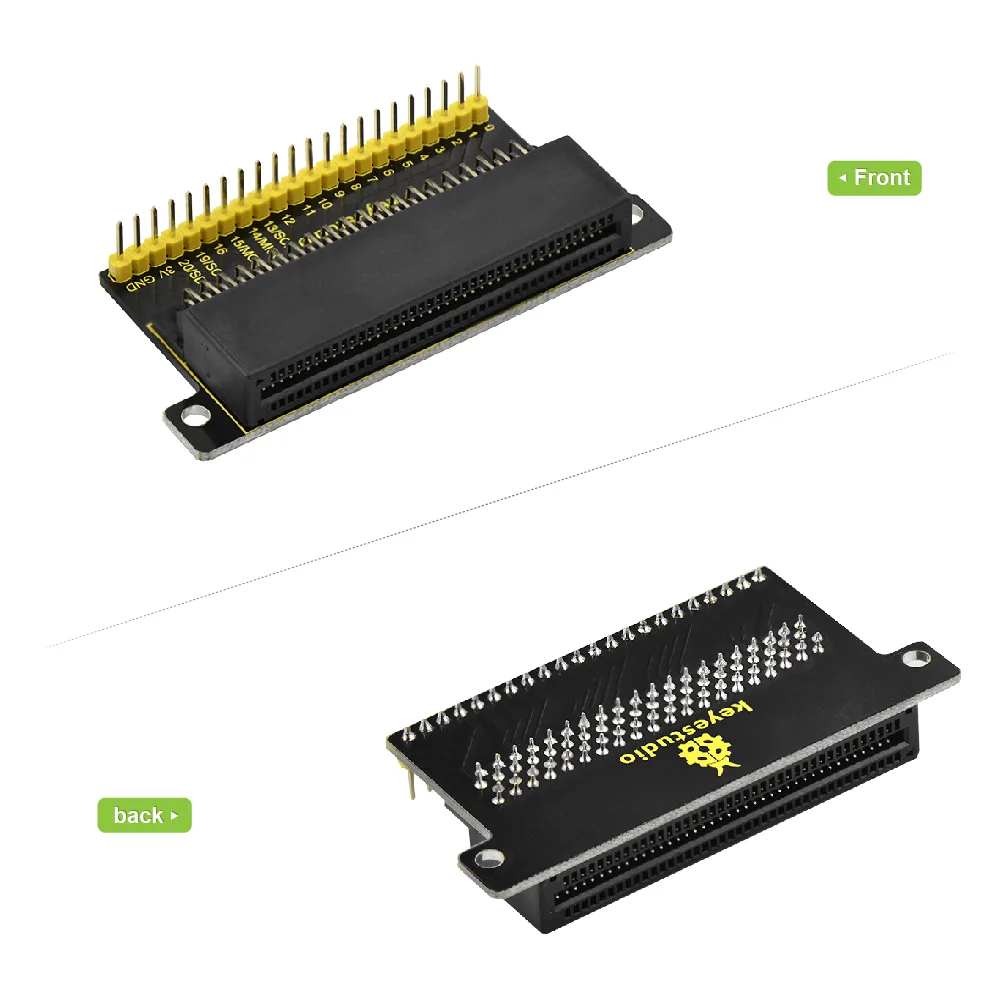

Easy edge connector breakout

This breakout board is designed to offer an easy way to connect additional circuits and hardware to the pins on the edge of your BBC micro:bit. It translates the micro:bit's edge contacts into a convenient row of pin headers.

Standard pin spacing

The board features a standard 2.54mm pin spacing across its headers. This ensures compatibility with standard jumper wires and common prototyping components.

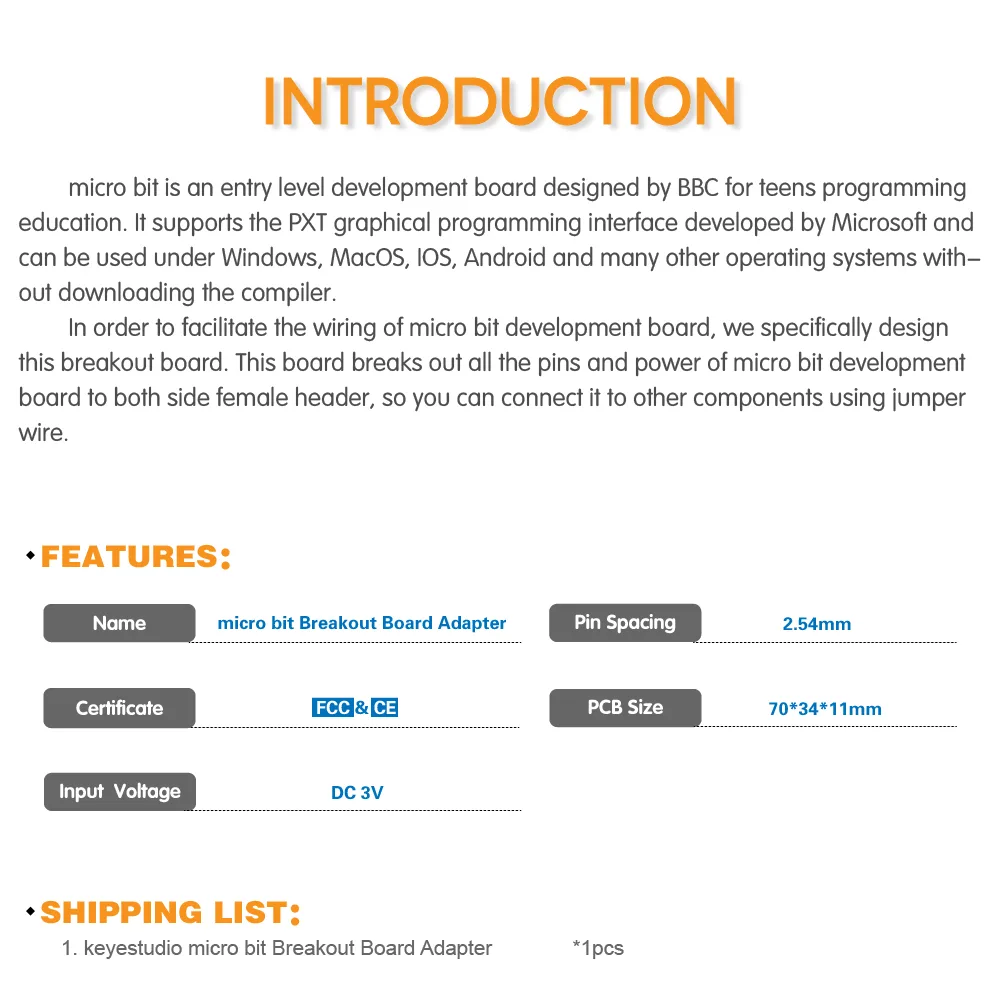

Broad operating system compatibility

The adapter supports projects programmed via the Microsoft PXT graphical programming interface. You can write and deploy code under Windows, macOS, iOS, Android, and other operating systems without downloading a compiler.

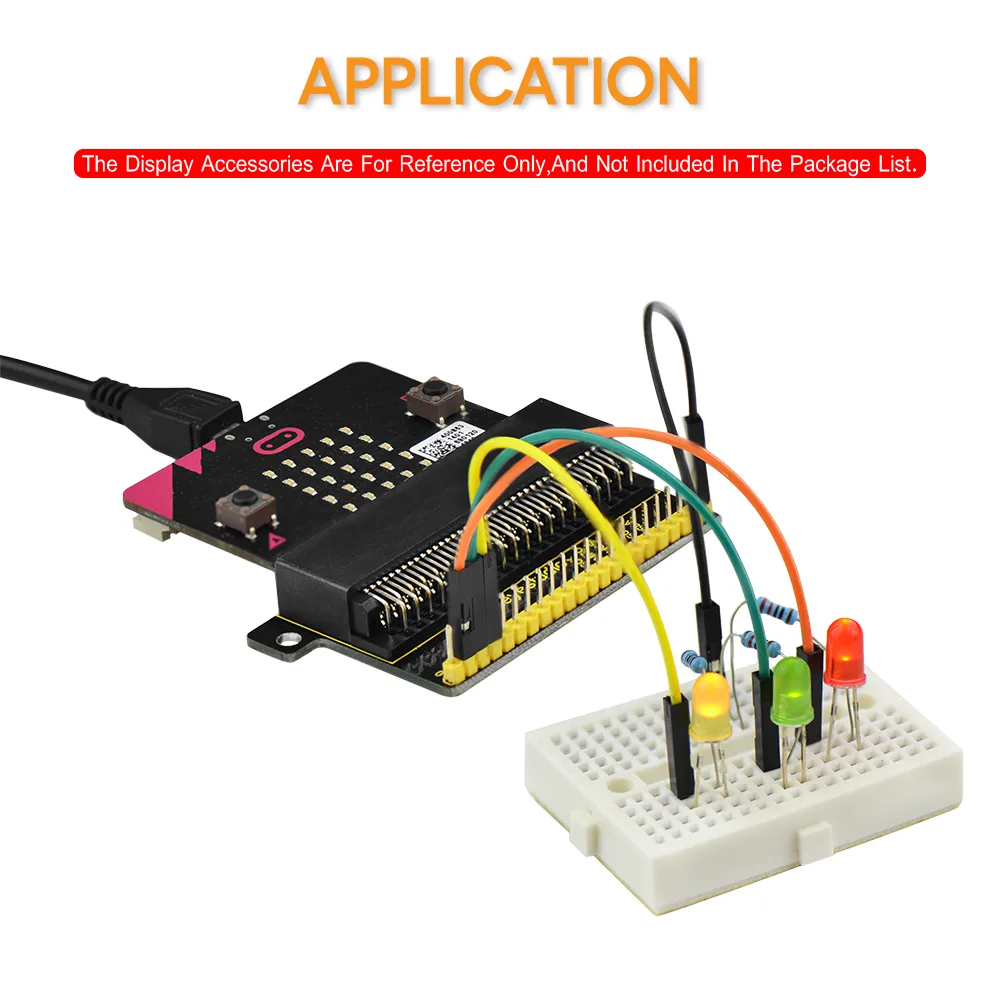

Solderless prototyping with jumper wires

By breaking out the micro:bit pins into pin headers, this board allows users to connect circuits easily using jumper wires. This eliminates the need for soldering, making it perfect for beginners and quick classroom experiments.

Low voltage operation

The breakout board operates with an input voltage of DC 3V. This matches the power requirements of the BBC micro:bit for safe and reliable integration.
