Keyestudio EASY plug Thin-film Pressure Sensor for Arduino STEM

The Keyestudio EASY plug Thin-film Pressure Sensor is an ultra-thin, flexible force sensor designed for Arduino-based STEM projects. It is an excellent choice for students, educators, and makers looking to incorporate touch or weight detection into their builds. With its simplified connection system, this sensor allows for quick integration without complex wiring.

Flexible nano pressure-sensitive film

This sensor utilises an ultra-thin film pad made from flexible Nano pressure-sensitive material. It features waterproof properties and is designed to detect external physical pressure with high sensitivity.

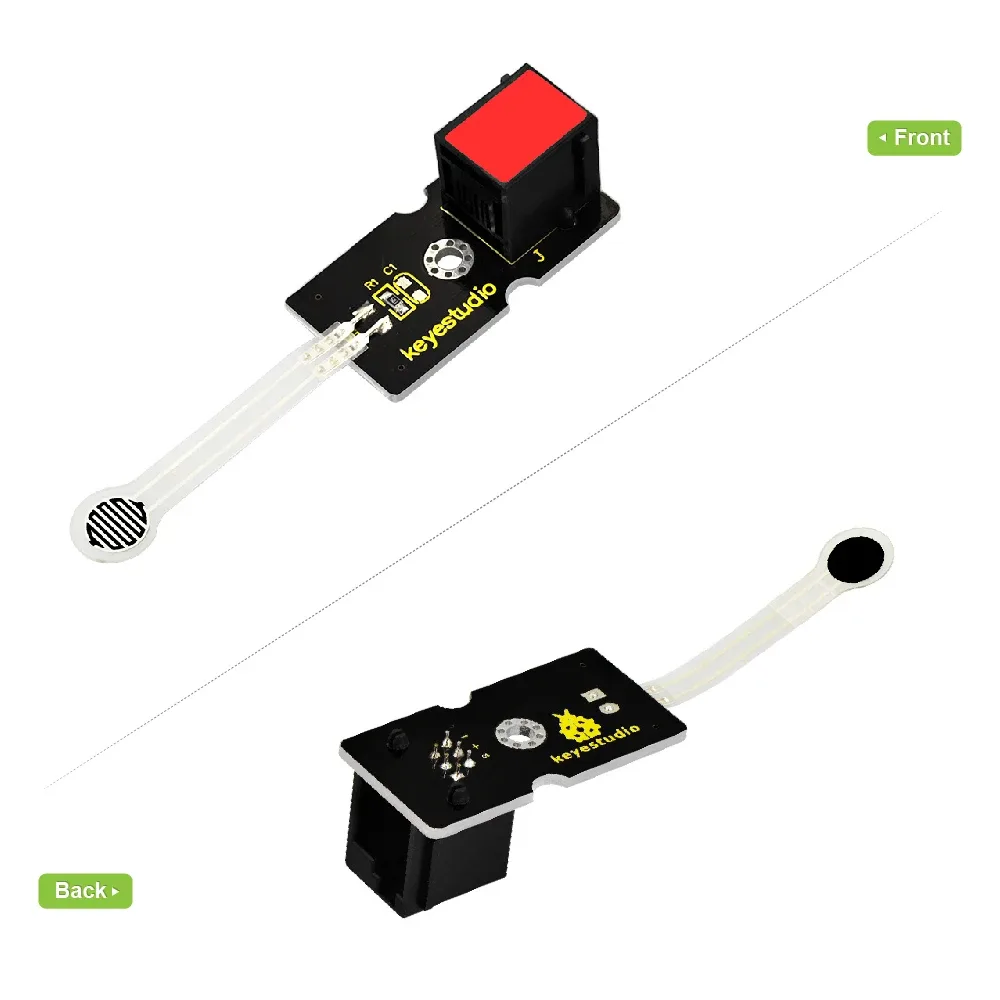

Simple RJ11 cabling

Designed to streamline classroom learning, this sensor connects directly to an EASY plug Control board. You only need a single RJ11 cable to establish communication, preventing wiring mistakes.

Precise resistance-based detection

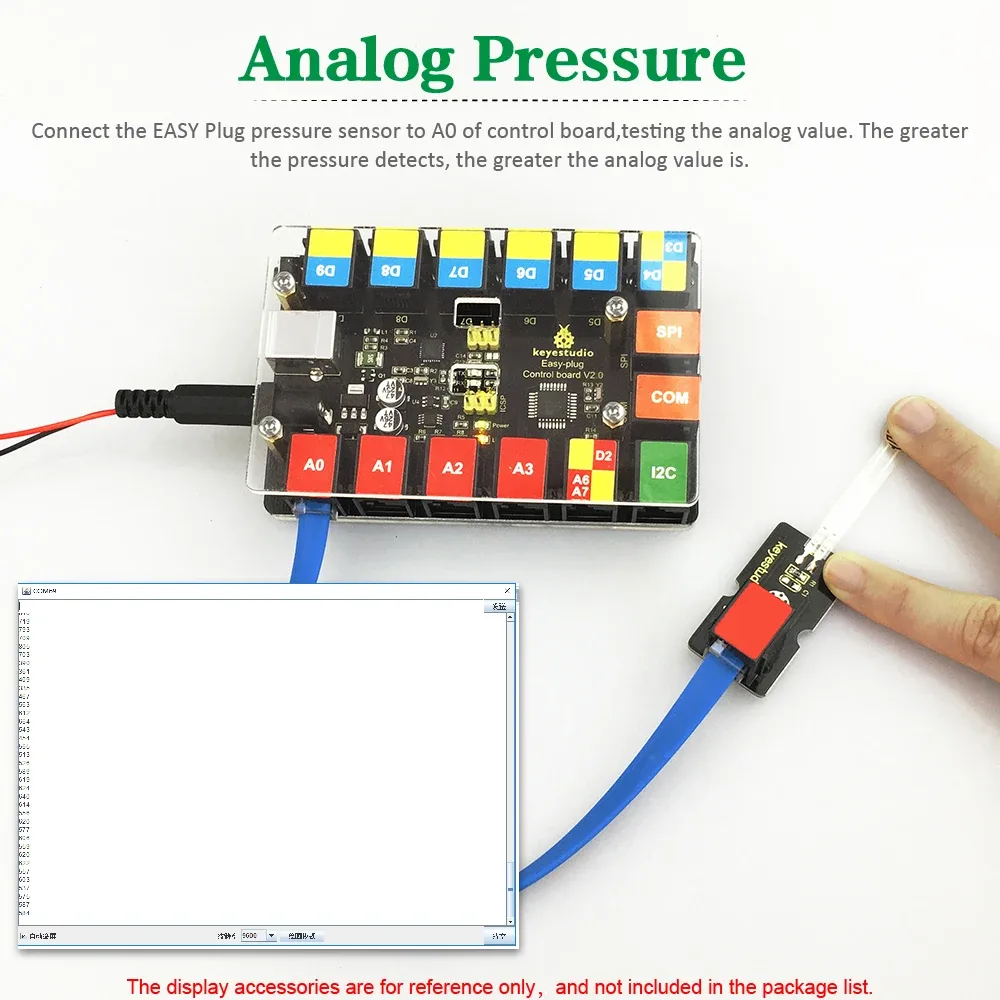

When the sensor detects external pressure, its internal resistance changes. The onboard circuit converts this pressure change into a corresponding electrical signal output for your microcontroller to read.

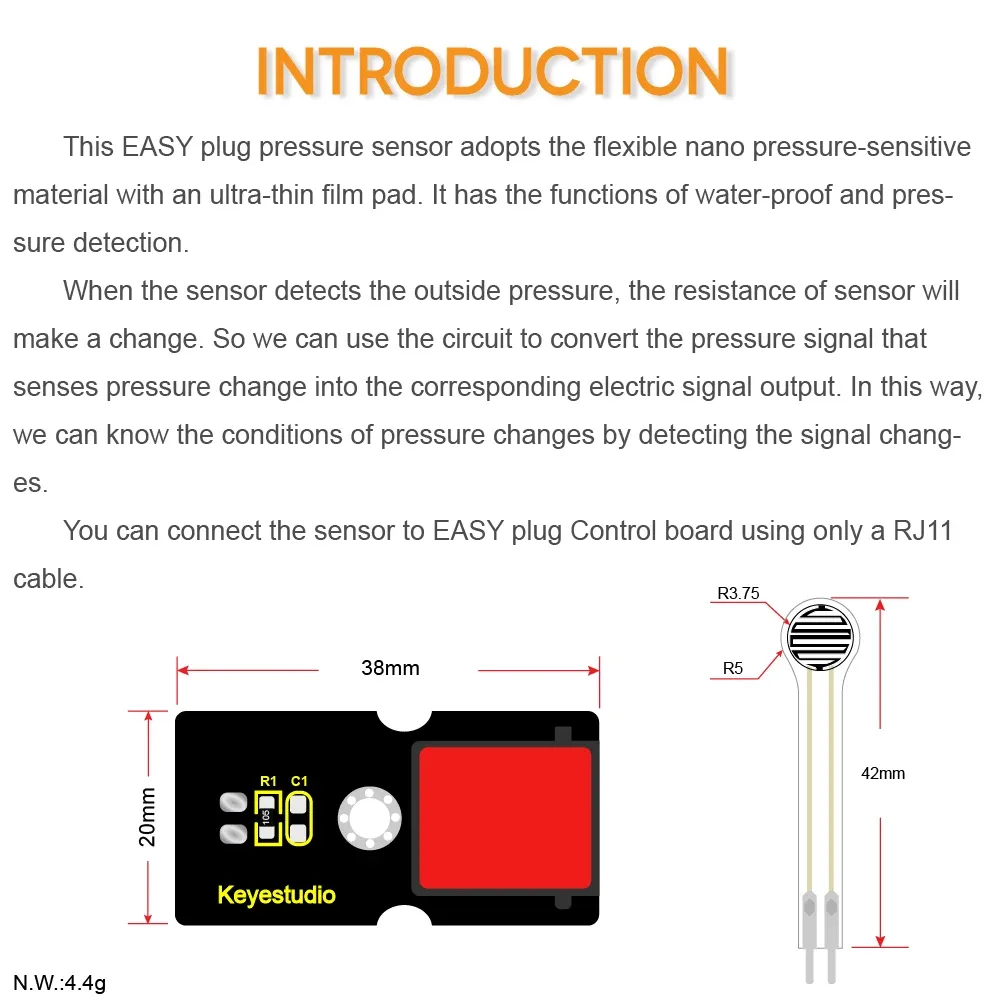

Ultra-thin physical profile

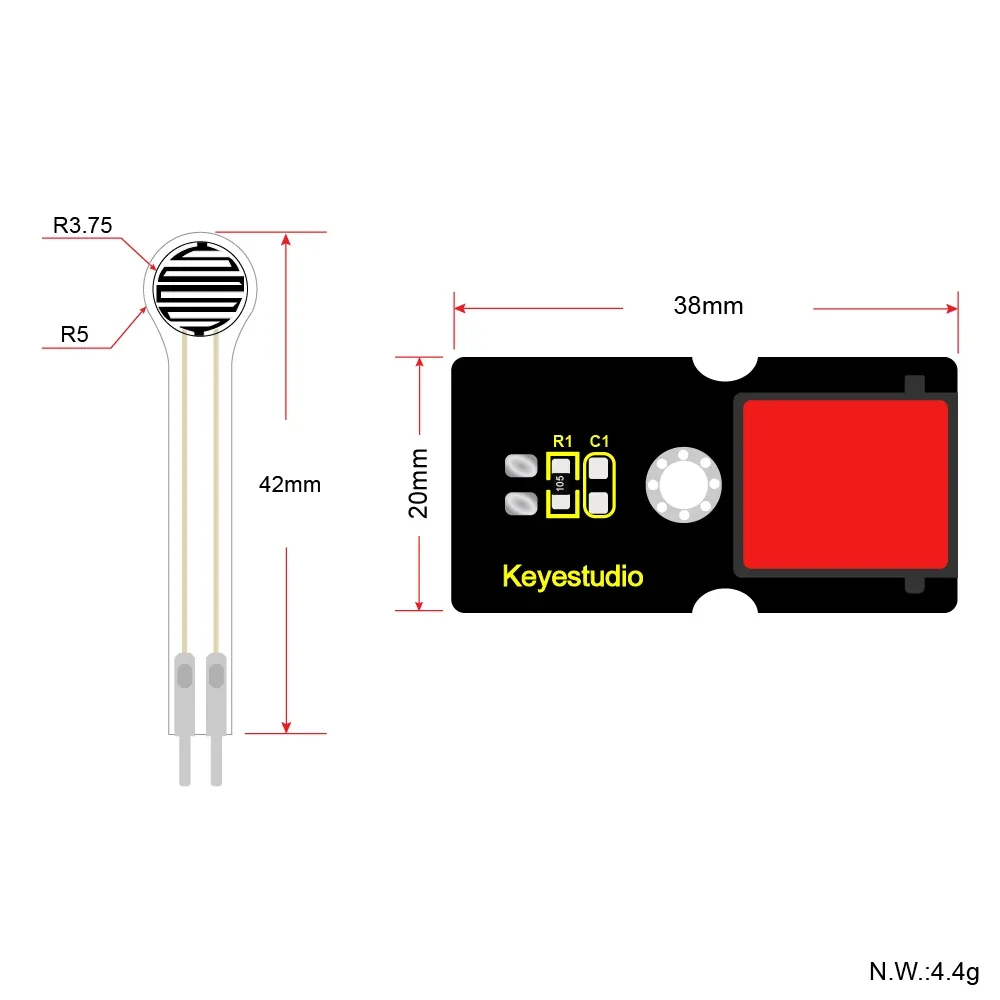

With a thickness of less than 0.25mm, this sensor easily fits into tight spaces. It measures force within a range of 0 to 0.5kg and triggers at a response point of less than 20g.

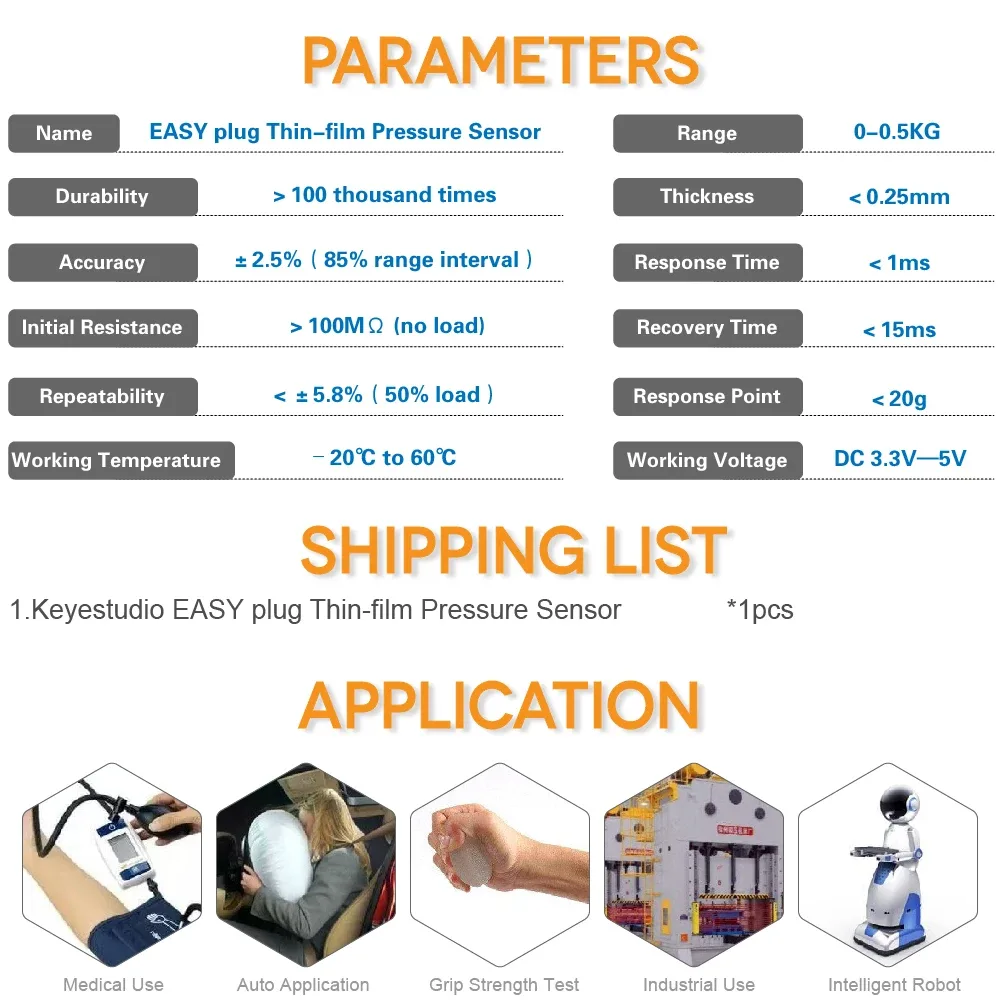

Rapid response and high durability

The sensor features a fast response time of under 1ms and a recovery time of less than 15ms. It is highly durable, rated for more than 100,000 cycles of pressure detection.

Wide operating voltage range

Operating at DC 3.3V to 5V, this sensor is compatible with standard microcontrollers. It offers an accuracy of plus or minus 2.5% within an 85% range interval and has an initial resistance greater than 100M ohms under no load.
